Picture for category Lavagne informative in GF

GF Visual Boards

3 Items in Grid 4 Items in Grid List

Panel for GF Visual Boards

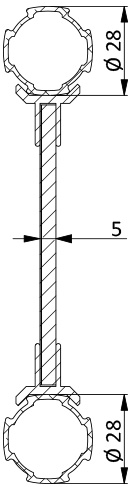

Panel with frame in GF profile ø 28 mm and enamelled and vitrified surface at 800 °, in ecological material. The special treatment of the panel makes it unalterable, resistant to sunlight, high heat and chemicals. The combination with the other components (legs, title, hinges, wall fixing kit) allows multiple solutions. Light and modular, they are easy to assemble. Available mono-facial. Panel height 1195 mm.

Wall mounting kit

Kit for wall mounting the GF Panel. The use of 1 kit per meter is recommended.

Title for GF Visual Boards

Title with frame in GF profile ø 28 mm and enamelled and vitrified surface at 800 °, in ecological material. The special treatment of the panel makes it unalterable, resistant to sunlight, high heat and chemicals. It can also be added above the panel at a later stage. Available monofacial, in 2 heights.

kit Leg

Leg kit in aluminum profile GF ø 28 mm available in version with wheels ø 50 mm with brake or with feet ø 30 mm. They are supplied disassembled but are easy to install. They are mounted under the GF panel to create free-standing boards. For a central blackboard use 2 leg kits; for a sideboard only 1 leg kit.

Hinges for GF Visual Boards

Kit 2 hinges for information boards in GF to chain 2 whiteboards with legs and allow 180 ° rotation of one blackboard on the other. Right and left version available.



The information boards in Green Frame Ø 28 mm profile are designed to facilitate the assembly of the various components for the creation of customized structures (a wall, with legs, with title, etc.). They offer maximum flexibility in the composition, allowing the type of support to be varied even afterwards, passing from wall-mounted blackboard to blackboard with legs and vice versa.

Features

• maximum flexibility

• porcelain steel panel

• possibility of using any type of marker

• surface erasable with solvents

• magnetic surface

• possibility of customization

• possibility of multiple compositions

• customizable measures

• standard height 1175 mm

• graphic customization is possible on all models





CONFIGURATION EXAMPLES

Whiteboard 1 side, with leg and feetWhiteboard 1 side, with title and leg with feet





Visual 1 side blackboard, with shelfVisual board 2 sides, with 2 shelves

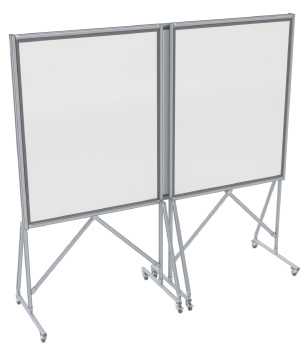

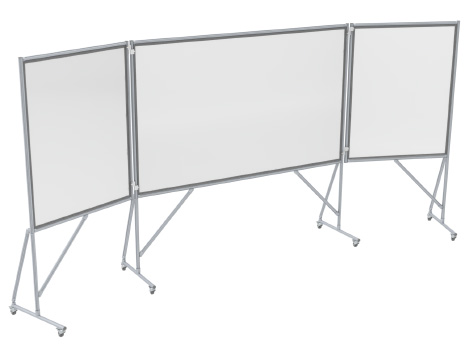

EXAMPLES OF REALIZATIONS WITH CHAINED BOARDS
