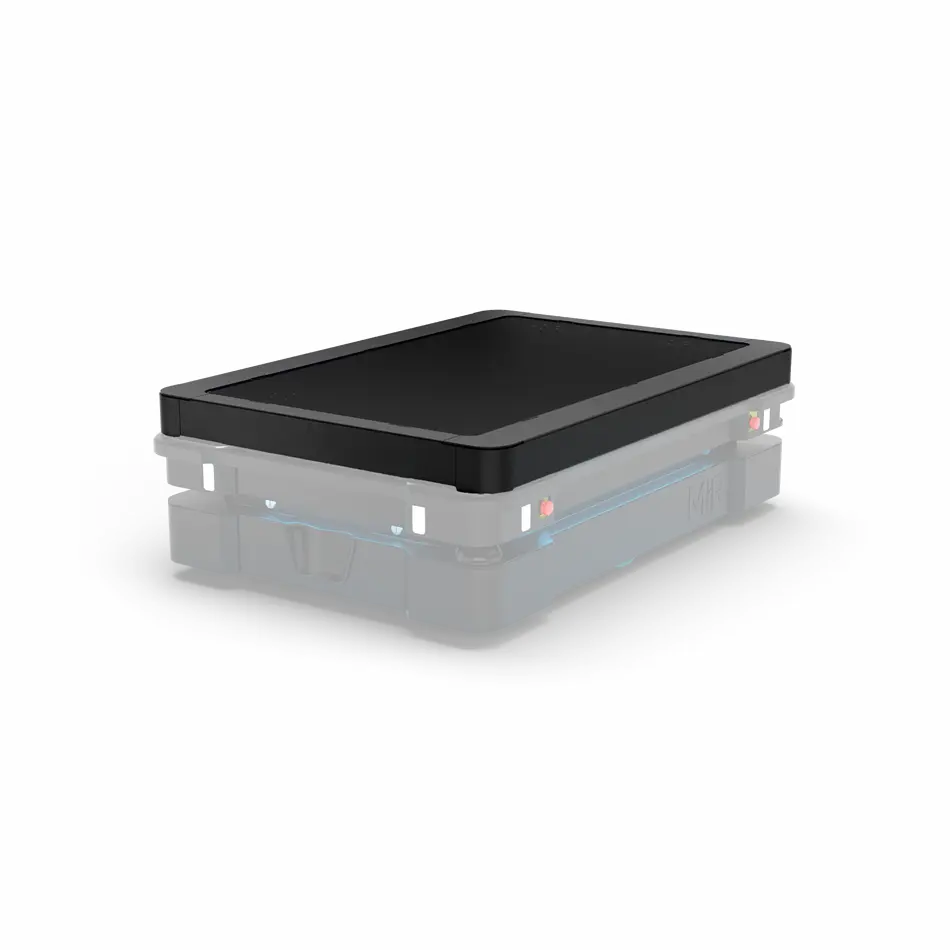

MiR 1350 Pallet Lift

FEATURES

The EU Pallet Lift module ensures stable handling and transport of your pallets. It allows the MiR600 to lift pallets autonomously from the MiR EU Pallet Rack and lower the pallet for stable transport with total payloads up to 500kg.

The MiR Pallet Lift 600 top module ensures stable handling and transport of 40 "x 48" pallets, racks and more. It allows the MiR 600 to lift pallets autonomously from the MiR Pallet Rack and lower the pallet for stable transport of total payloads up to 500kg.

Optimize pallet transport without changing your facility layout. With the MiR Pallet Lift top module, the MiR600 picks up, transports and unloads 40 "x 48" pallets or other items autonomously, freeing employees for more valuable tasks.

TECHNICAL DATA

The complete technical specifications of the MiR 1350 robot can be read by clicking here.

Below are the specifications of the MiR Pallet Lift module

Intended use:

• Device for autonomous collection and unloading of pallets

• Developed to work with the MiR 1350

Dimensions:

• Length 1304 mm

• Height 94 mm

• Total height when lifted 156 mm

• Lift height 60 mm

Colour:

• RAL 9005 / Black

Payload:

• Maximum payload 1250 kg

Speed and performances:

• Upward lifting speed 4.0 s

• Downward lifting speed 3.2 s

Pallet:

• Supported with lifting pallet rack: 1 016 x 1 219 mm | 40 x 48 inches. It can be used for different pallet sizes.
