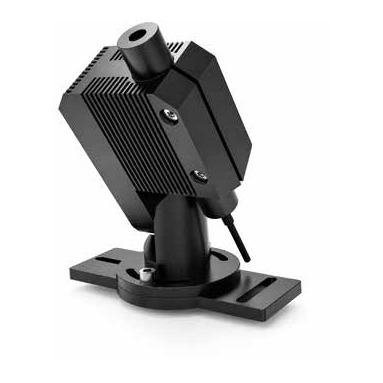

OX-Laser - Floor Marking Line Laser
Line laser that projects a virtual line onto the floor to separate routes and mark off danger zones. The line does not wear and stays visible even with dirt, oil and in cold stores.
- Power and color: 750 mW green, 800 mW red, 1000 mW light blue; line width approx. 2.5-3.5 cm
- Line angle 60°, 90° or 110°: at 5 m mounting height the line is approx. 5.8 m, 10 m or 14.3 m long
- Laser class 1/2 when mounted at the recommended height, no laser safety officer required
- Power supply 230 V AC via plug-in power supply or 12-25 V DC; consumption < 8 W; cable 1 + 1 m, extendable up to 12 m
- IP44; approx. -15 °C to +45 °C, optionally down to -30 °C; typical life 25,000-40,000 h
- Overhead mounting with screw-on bracket or magnetic base; several units can be cascaded for continuous lines of any length
