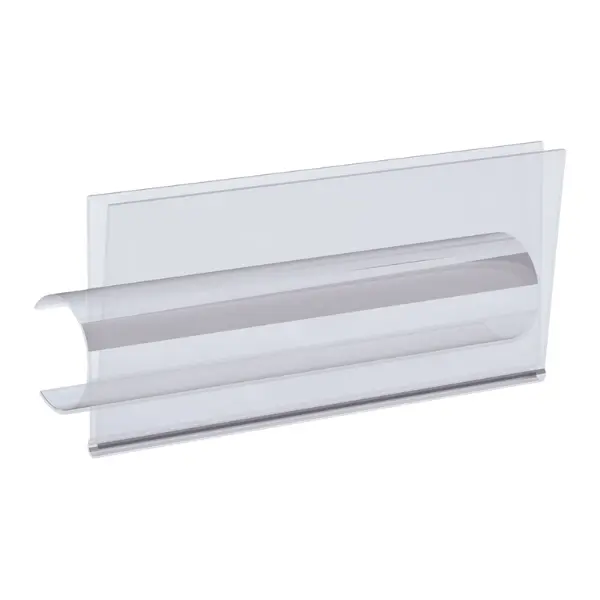

Front card holder for pipe GF-N

It depends on the card you use: 50 × 100 mm or 50 × 120 mm. If you already have printed kanban cards, choose the format that fits them.

On shelving, flow racks and workstations in Ø 28 pipe, to identify locations, codes and quantities.

For 28 mm tubes and profiles there is the label holder with clip, 100 or 200 mm long, open at the side and top to change the insert; for Green Frame GF-N Ø 28 mm tubes the 50 × 100 or 50 × 120 mm front card holder. Pockets and label holders are fixed to round tubes from 28 to 30 mm with the Gripper hook Ø 28, which has inner grip points and holds even with vibration. Series 100 frames are mounted on tubes from 23 to 38 mm with the matching clamps.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
