Lifting platforms: how to choose
Enter weight and use: we show you the suitable models.
Standard equipment and safety →
How heavy is the load?
Spread over the whole platform. If it rests on half of it, double it.
Platform size
Optional, in mm.
Working heights
Optional, in mm from the floor.
or
How will you use it?
Platform types
Series T or Series C?
Series T
Made entirely in Sweden.
- Configured to suit the job: accessories, controls and colours.
- Orange and blue as standard; anthracite grey and black also at no extra charge.
- Other colours on request.
Series C
The lighter, more economical version.
- Hydraulics and many basic components are the same as on the Series T.
- Powder coated, fixed colours orange and blue.
- It cannot be customised and takes only a few accessories.
Good to know before choosing
How to read the capacity

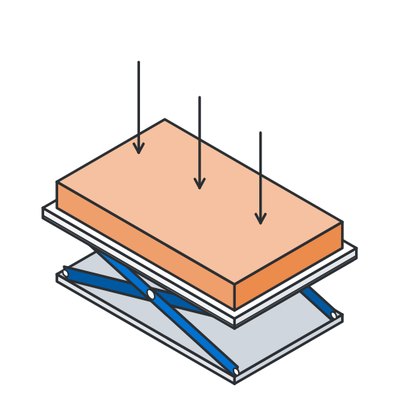

- It applies with the load spread over the whole platform.

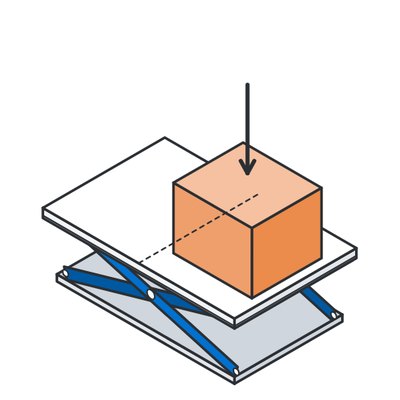

- On half the length: half the capacity. On one side: one third.

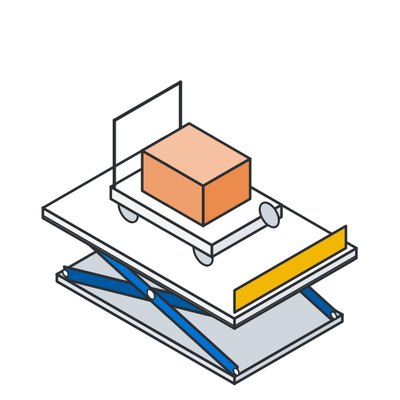

- Loads on wheels: roll stop, ordered with the platform.
Learn more
- Turntable: platform with twice the capacity.
- Permitted side forces: 2.5% to 10% of the load.
- Pallet truck on the platform: reinforced deck and mechanical blocks.

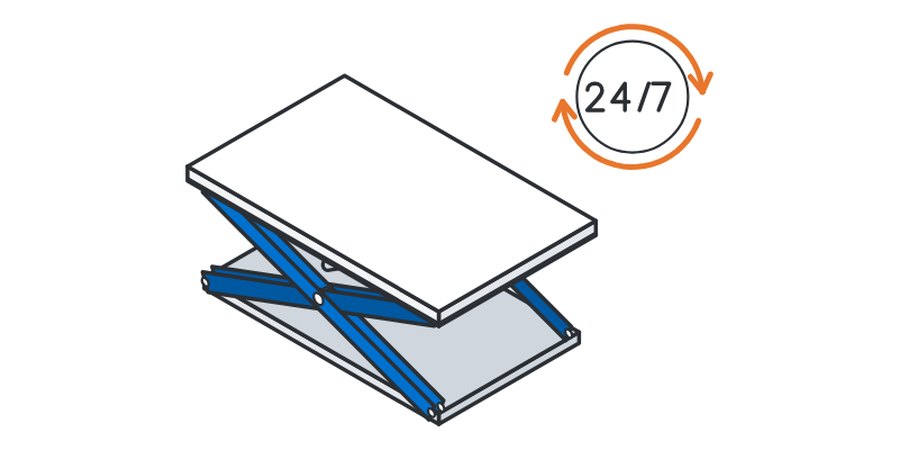

Intensive use: HD
- Over 10 cycles/hour or 10,000/year: HD kit required.
- Ordered with the platform: it cannot be fitted later.

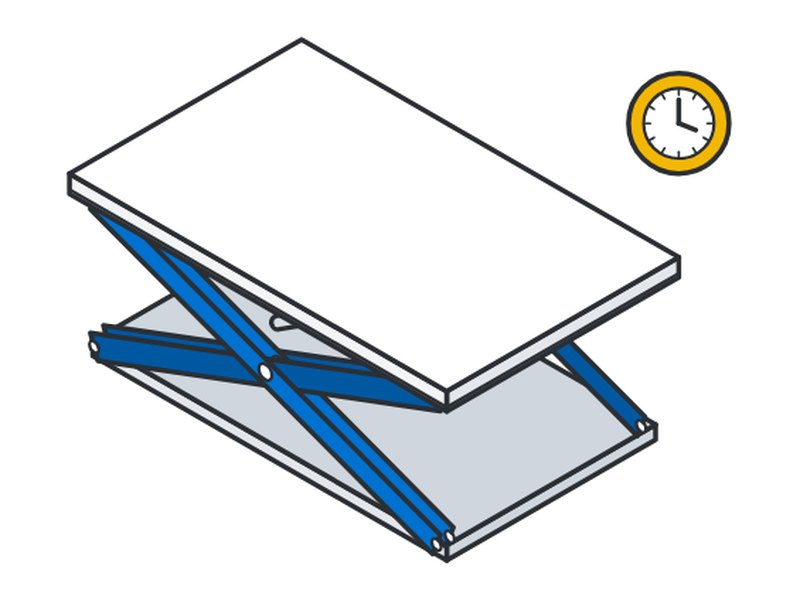

- 24/7 use up to 2000 kg: HD Series.
Learn more

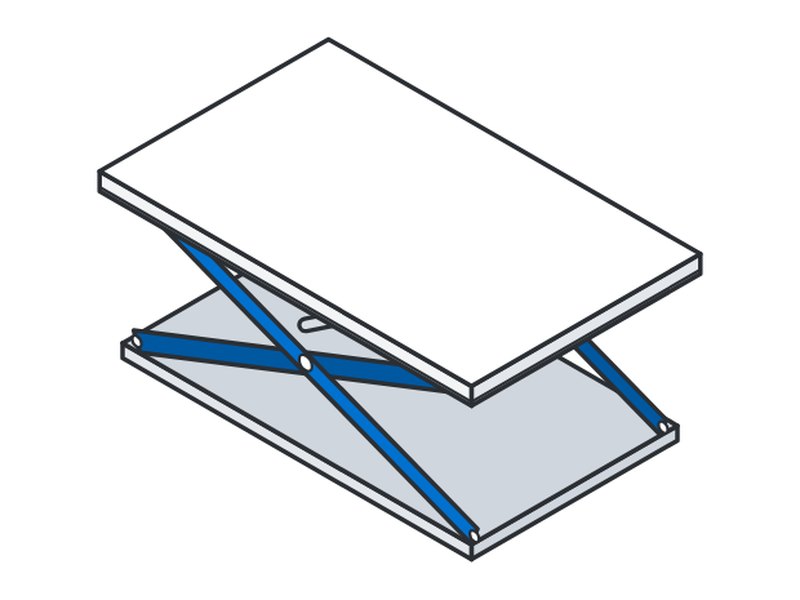

| 82103 | single and vertical up to 4000 kg |
|---|---|
| 82104 | single and vertical over 4000 kg |

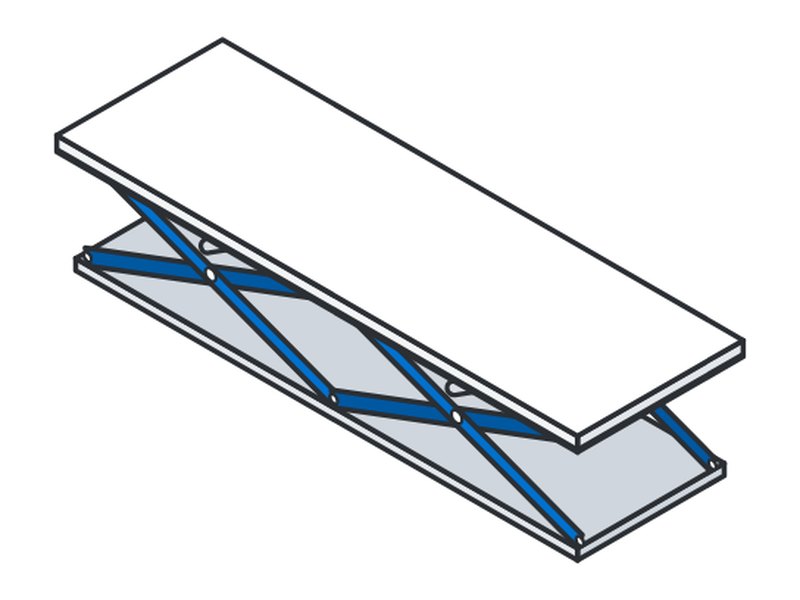

| 82105 | double horizontal up to 4000 kg |
| 82106 | double horizontal over 4000 kg |
Working environment

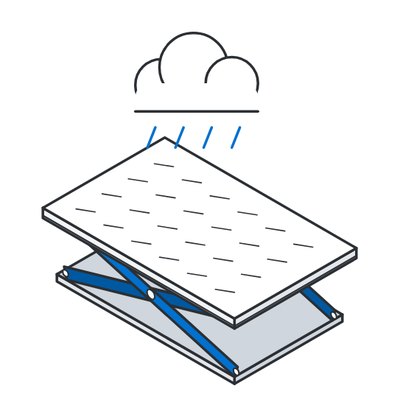

- Outdoor: anti-slip deck, covered power unit, C4 corrosion protection.

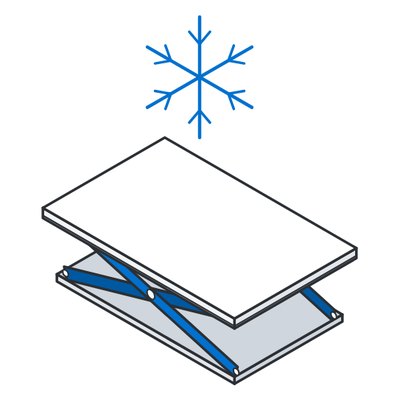

- Cold: oil for use down to −20 °C.

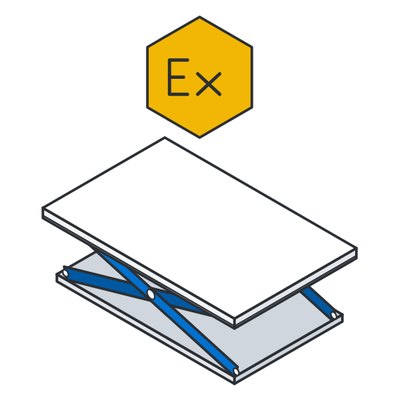

- ATEX: only as a project, with the zone classification plan.
Learn more
- Standard: IP54 electrical system and C3 corrosion protection.
- Dust: bellows or mesh.
- Corrosion: C4 corrosion protection, galvanising or stainless steel platforms.

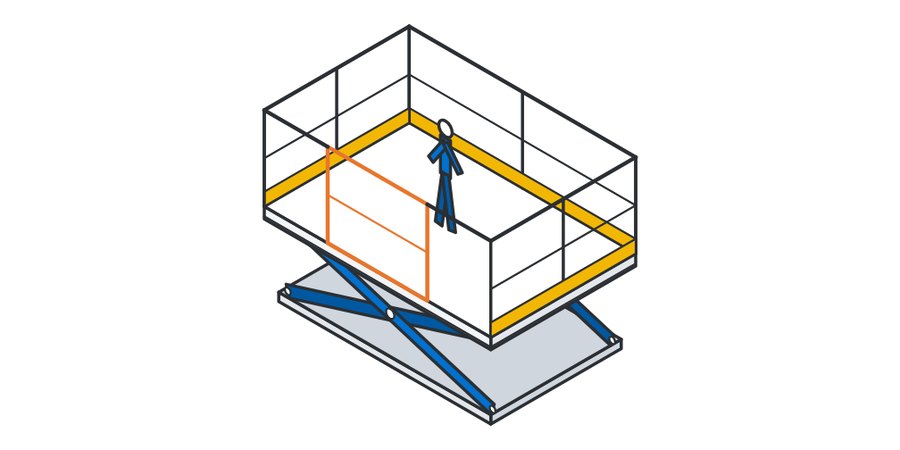

People on board
- Only trained people accompanying the goods.
- Guardrails, gate and marking for people: mandatory.
- It is neither a lift nor an aerial work platform.
Learn more
- EN 1570-1: at most two stops, without passing a fixed floor.
- In the calculation each person counts as 80 kg on 20 × 20 cm.
- Work at height: special version, outside EN 1570-1.
Pit or on the floor?

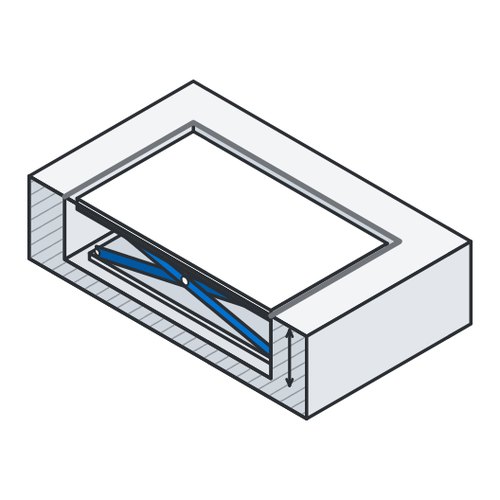

- Pit: platform flush with the floor, building work needed.

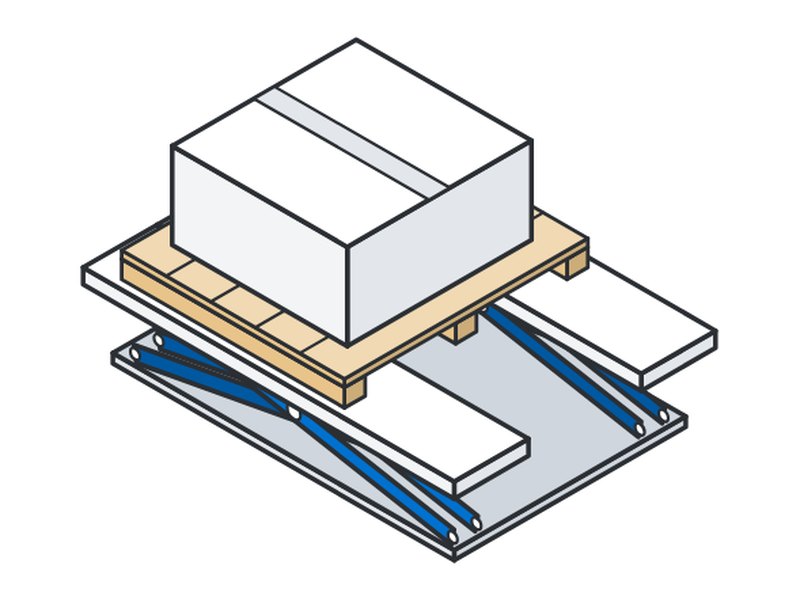

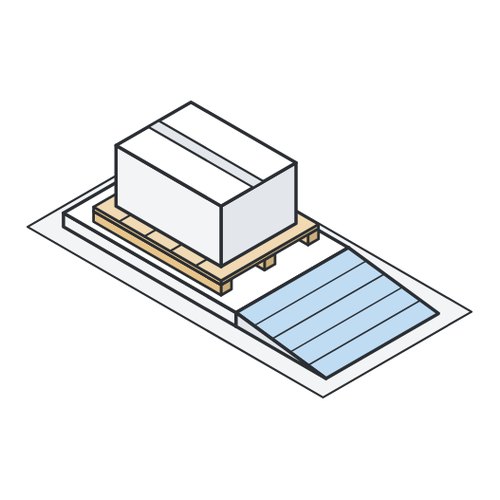

- Low-profile: 80–100 mm from the floor, U-shaped or with a ramp.
- Over 2000 kg from the floor: standard platform in a pit.
Learn more
- Pit: platform length and width +30 mm, depth: closed height +5.
- Concrete C12/15, L-profile, Ø 100 mm pipe.
- Recommended: mechanical blocks, inspection hatch or external power unit.
HD Kit for Lifting Platforms
Anti-Tip Device for Lifting Platforms
Automatic Anti-Roll Stop
Adjustable Mechanical Blocks
PVC Protective Bellows
Guard Rail with Gate for Lifting Platforms
Ramp for Low-Profile Lift Platforms
Wheeled Frame for Lifting PlatformsFrequently asked questions
What does the number in the model name mean?
The capacity in kg with the load evenly spread: TL 2000 = 2000 kg.
Low-profile or pit?
Low-profile up to 2,000 kg with no building work; above that, a platform in a pit.
Can people ride on it?
Only trained attendants, with guardrails, gate and marking.
What power supply is needed?
Three-phase 400 V as standard; on request 230 V, battery or pneumatic.
