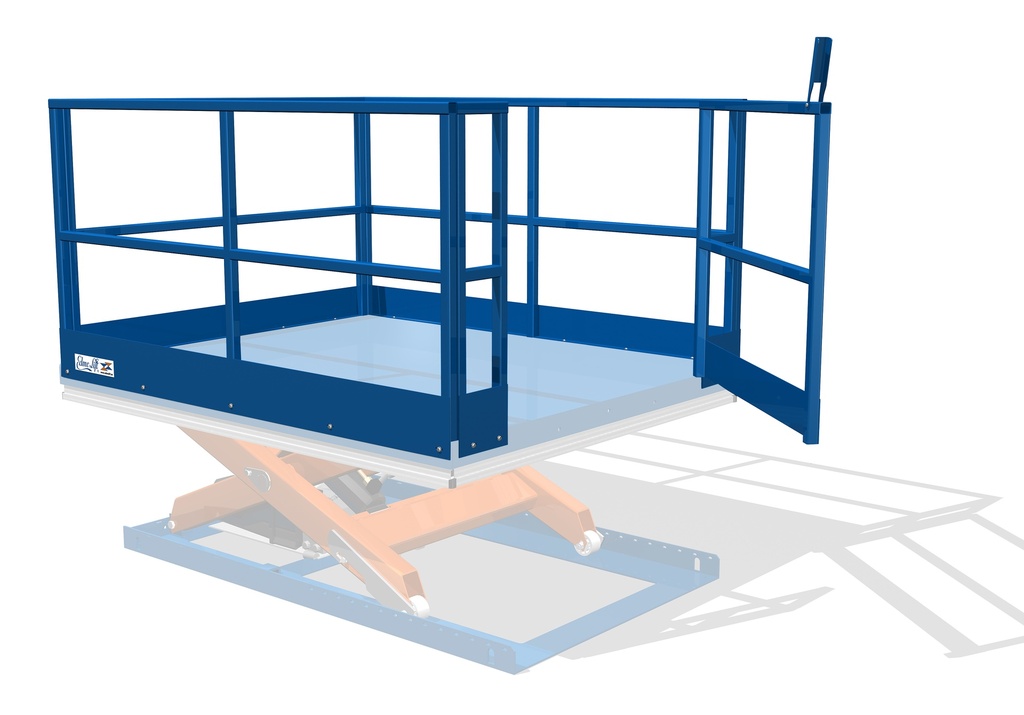

Guard Rail with Gate for Lifting Platforms
1100 mm high guard rail with 150 mm toe board and gate with latch (maximum width 1200 mm, specify the opening side). The gate can be fitted with an electromechanical lock, a mechanical-only lock or both. Mandatory accessory for lifting people.
Edmolift · Lift table accessories
Guard rail with gate for lift tables
1100 mm high guard rail with 150 mm toe board and latched gate, up to 1200 mm wide. The gate can have an electromechanical lock, a mechanical lock only, or both. Mandatory when people ride on the lift table.
Why choose it
People on board
Guard rails and gate are mandatory when trained people accompany the load (EN 1570-1).
Choice of closure
Mechanical latch, electromechanical lock or both; there is a version prepared for the lock.
30 or 40 mm tubes
30 × 30 or 40 × 40 mm tube, for larger platforms.
Technical data
| Version | Tubular 40x40 mm with gate, Tubular 30x30 mm with gate, Gate prepared for electromechanical lock |
In the order, state the hinge side, opening direction and type of closure. Above 1200 mm opening a double gate is needed.
Guard Rail for Lifting PlatformsGuard rail without gate
TL 2000 Single Scissor Lift TableSingle scissor lift tables
TLH 2000 Tandem Scissor Lift TableHorizontal double scissor lift tablesNeed help choosing?
Tell us the lift table model and serial number: we check the right accessory with Edmolift and prepare the quote.
