ESD Floor Marking Tape

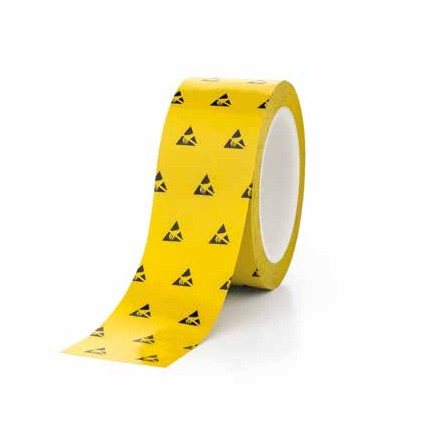

This tape has ESD protection on the adhesive and the surface, with stated values: surface resistance < 1 × 10¹⁰ Ω and resistance to ground < 1 × 10⁹ Ω. LongLife tape with ESD symbols is a yellow tape printed “ESD Protected Area” that marks the area boundary: ORGATEX does not state electrical resistance values for it.

According to the ORGATEX data sheet, surface resistance is below 1 × 10¹⁰ Ω and resistance to ground below 1 × 10⁹ Ω. ESD protection covers both sides: the adhesive and the surface.

On smooth industrial floors that are dry, clean and free of dust, oil, grease and solvents. The application temperature is at least 12 °C; straight after application, put the tape under pressure to increase its durability. In use it withstands -20 to +70 °C.

Yes: according to ORGATEX the tape is dimensionally stable and can be removed without leaving residue.

50, 75 or 100 mm wide, 33 m roll. Colours: red, white, yellow, green, black, dark blue and orange.

In Italy, Legislative Decree 81/08 (Annex XXVIII) requires that, where the use of the premises makes it necessary, vehicle traffic routes are marked with continuous lines in a clearly visible colour, preferably white or yellow depending on the floor, and that obstacles and danger points are marked with yellow/black or red/white bands angled at about 45°. Signs follow Annex XXIV: red for prohibitions, yellow for warnings, blue for mandatory actions, green for escape and first aid. Other colours (for example blue for raw materials, green for finished goods, red for scrap) are not set by law: they are an internal code to define and apply consistently.

Thickness, material and adhesive differ, and so does the traffic they withstand. Low Duty (0.16 mm) is for pedestrians and pallet trucks and for temporary markings. Standard, Eco, Grip, Rough Ground, Cold Performance and the LongLife ESD tape («ESD Protected Area») also withstand forklifts: choose by floor (smooth, rough, cold store, EPA) and requirements (recycled material, slip resistance). Heavy Duty (1.3 mm) is the only line for heavy forklifts, Vector™ the only one that resists forklifts turning on the spot. Outdoor (2.8 mm) is for outdoor use, up to forklifts. The fabric tape is for temporary marking. For the vinyl + PET ESD tape, with ESD protection on adhesive and surface, ORGATEX does not state the permitted traffic.

The floor must be even, clean and free of dust, oil and grease. First clean thoroughly, then degrease the application strip with LongLife Cleaner. Remove old markings with the scraper and adhesive residue with LongLife Remover. On critical surfaces, such as porous or dusty concrete, LongLife Primer increases adhesion; outdoors it is always required.

Yes. According to ORGATEX, LongLife markings can be removed without residue using LongLife Remover. Markings are lifted with the LongLife scraper, 1200 mm long so you can work standing up, with a 125 mm blade and 3 spare blades; adhesive residue is dissolved with the Remover. On delicate floors test it in a hidden spot first.

Adhesive marking has no drying time: tapes and symbols are applied without chalk lines or special equipment and the area can be used straight away (the adhesive bonds fully in about 12 hours). When the layout changes it is removed without residue with LongLife Remover, and colours stay standard and consistent in repeat orders. Choose the line by traffic and floor: if in doubt, we will recommend it.

Yes. Send us a floor plan or a few photos of the areas to be marked or made safe and tell us how they are used (traffic, vehicles, floor, stairs, exits): we will recommend the right products, with colours, formats and quantities. For larger sites or special situations we can consider a site visit on request.

You can use pre-cut pieces – 45° and 90° corners (Standard), T and L pieces (Standard, Vector™, Heavy Duty, Cold Performance), crosses (Standard and Vector™ Rounded) – or cut the tape with the stainless steel LongLife cutting template, which guides 90° and 45° cuts on 50, 75 and 100 mm widths. For 10 pallet locations there is the marking kit (L corners, straight pieces and A4 windows); on uneven floors or outdoors, LongLife Modul L corners fixed with anchors. ORGATEX recommends not overlapping markings.

The price depends on width, colour and quantity: request a quote and we will send you a tailored proposal, also for recurring supplies.
