Anti-Tip Device for Lifting Platforms

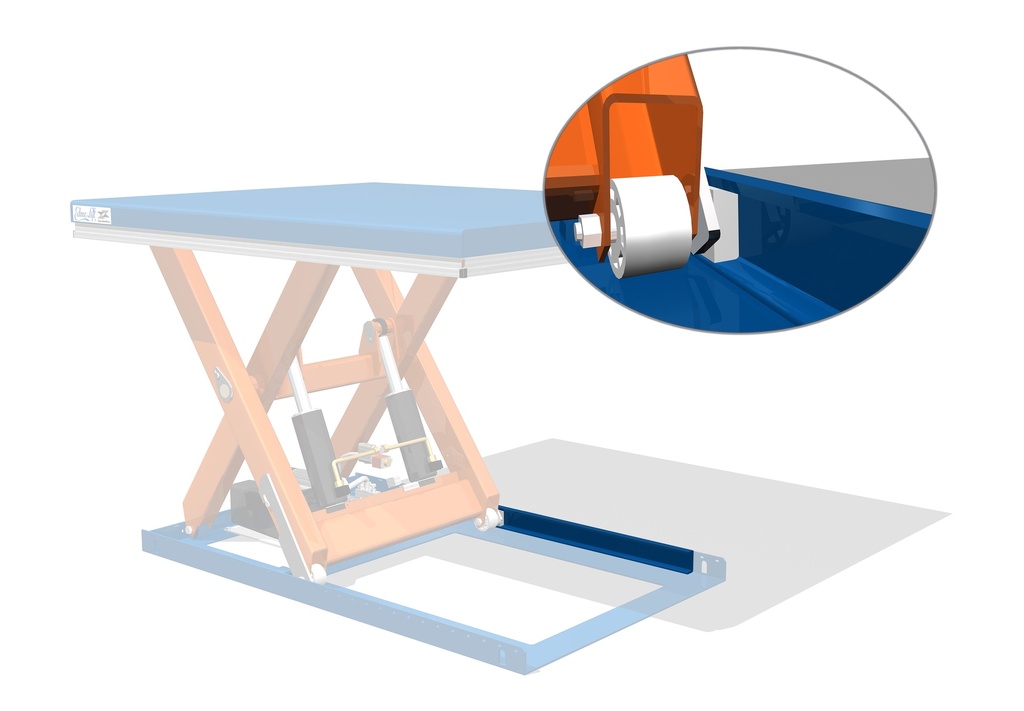

With the anti-tip device: it stops the scissor wheels from lifting when the load is not positioned correctly, stabilises the lift table and reduces the risk of tipping. There is one version for lift tables up to 4000 kg and one for higher capacities.

No: it must be ordered together with the lift table, as it cannot be fitted once the machine has been delivered. It is available for single scissor, double horizontal scissor and vertical scissor lift tables and for the HD series.

Start from how you will use it: people on board need guard rails and a gate; in a pit, limit switches, lifting eyes, mechanical blocks and an inspection hatch or external power unit; outdoors, an anti-slip deck and a covered power unit; loads that roll need an anti-roll stop, loads to be rotated a turntable. Tell us the model and the use and we will recommend the compatible accessories.

Many, yes: control pendants, limit switches, photocells and other electrical accessories plug into the M12 connectors of the UC-60 control unit, without an electrician and without opening it. The HD kit, anti-roll stop, adjustable mechanical blocks and anti-tip device must instead be ordered with the lift table, as they cannot be fitted later. To check compatibility, give us the model and serial number from the rating plate.
