HD Kit for Lifting Platforms

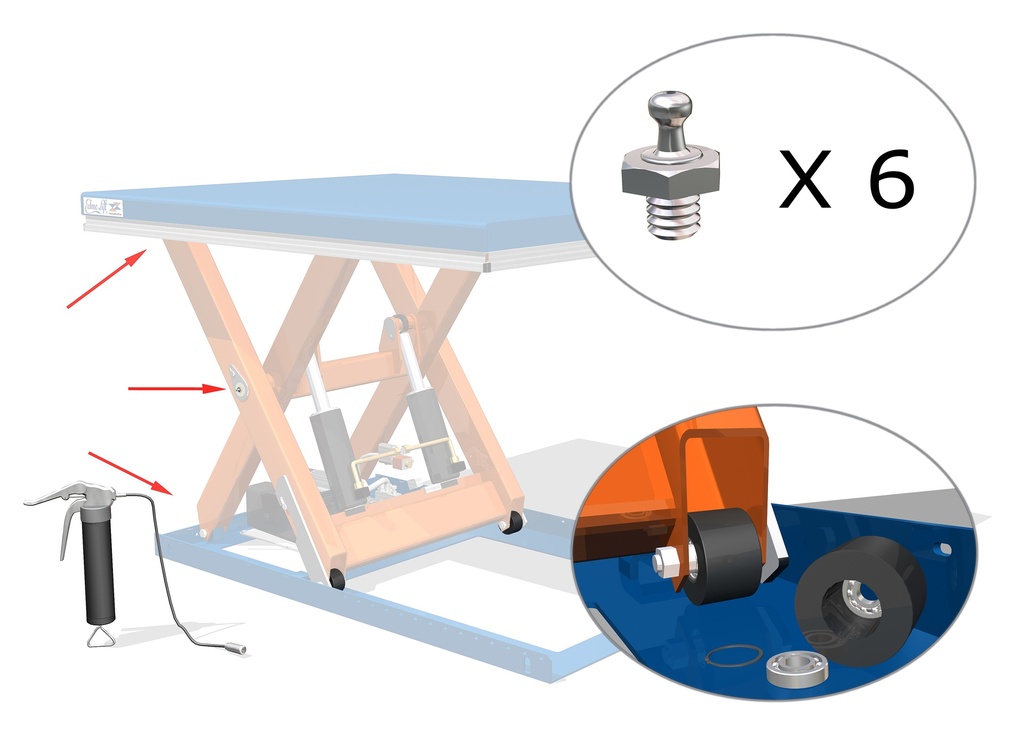

The HD kit: it is mandatory above 10 cycles per hour or 10,000 per year, and also recommended with loads close to the capacity or over several shifts. It has ball-bearing wheels, machined shafts, grease nipples on all pivot points and cylinder drainage to the tank; for continuous 24/7 use there is the HD series.

No, it must be ordered with the lift table. The version is chosen by scissor type, vertical (single to quadruple) or double horizontal, and by capacity: up to 4000 kg or from 4000 to 10,000 kg.

Start from how you will use it: people on board need guard rails and a gate; in a pit, limit switches, lifting eyes, mechanical blocks and an inspection hatch or external power unit; outdoors, an anti-slip deck and a covered power unit; loads that roll need an anti-roll stop, loads to be rotated a turntable. Tell us the model and the use and we will recommend the compatible accessories.

Many, yes: control pendants, limit switches, photocells and other electrical accessories plug into the M12 connectors of the UC-60 control unit, without an electrician and without opening it. The HD kit, anti-roll stop, adjustable mechanical blocks and anti-tip device must instead be ordered with the lift table, as they cannot be fitted later. To check compatibility, give us the model and serial number from the rating plate.
