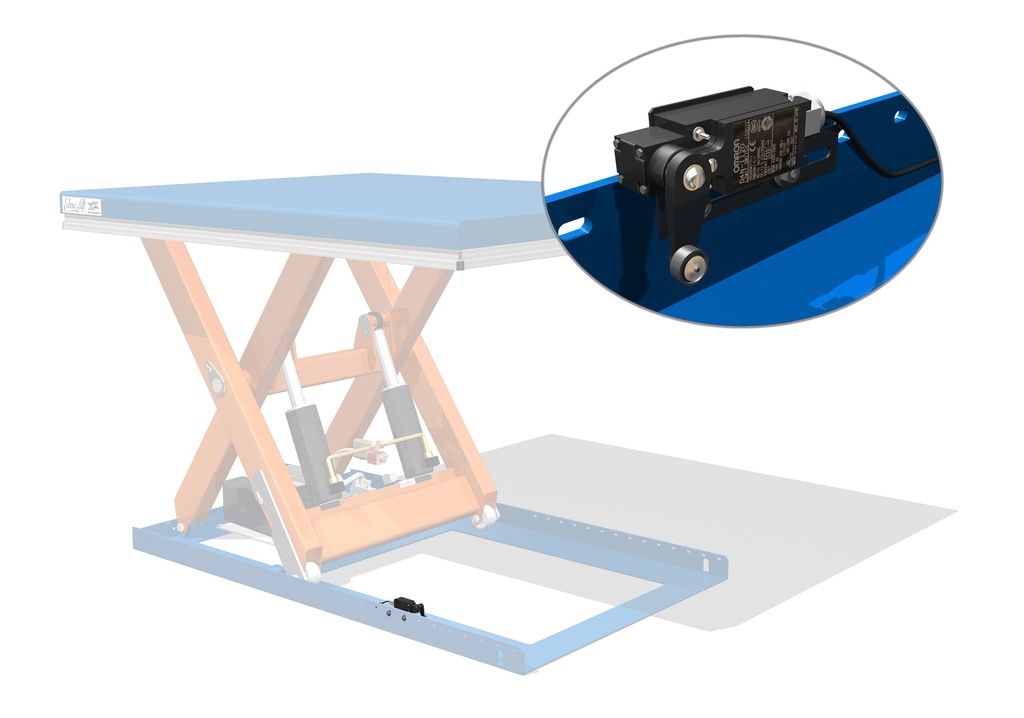

Limit Switch for Lifting Platforms

The limit switch is adjustable and stops the lift at a preset height. Choose the upper or lower limit and any intermediate function; specify the intended use when ordering. Recommended for use in a pit.

Limit switch for scissor lift tables

Adjustable limit switch that stops the lift table at a preset height: upper or lower limit, with an intermediate function if needed. Recommended for pit-mounted lift tables. Edmolift lift table accessory.

Upper or lowerAdjustableRecommended in a pit

Why choose it

Always the same height

The lift table stops by itself at the set height, cycle after cycle.

Fully adjustable

It is set to the working height of the workstation.

Plug & play UC-60

It connects to the UC-60 control box with an M12 connector, without an electrician.

Technical data

Version

Single, double, triple scissor up to 3000 kg (horizontal double up to 6000 kg), Single, double, triple scissor over 3000 kg (horizontal double over 6000 kg), Series C: CR, CL, CB, Low profile TUB, CUB, Pallet lifters TSL, TSE, Low profile TCB, TCL

You choose the version for the lift table family; in the order, state whether it is needed as an upper, lower or intermediate limit.

Compatible with

TL 2000 Single Scissor Lift TableSingle scissor lift tables

TSL 750 Pallet LifterPallet lifters

TCL 1000 Low Profile Lift TableLow-profile lift tables

CL 1001 Single Scissor Lift TableSeries C

Any other questions?Read the 4 frequently asked questions →

Need help choosing?

Tell us the lift table model and serial number: we check the right accessory with Edmolift and prepare the quote.

Request a quote Call +39 0434 572757

Specifications

Version

Single, double, triple scissor over 3000 kg (horizontal double over 6000 kg)

With the adjustable limit switch: the lift table stops by itself at the set height, as an upper or lower limit, with an intermediate function if needed. It is also recommended for pit-mounted lift tables.

On machines with the UC-60 control box, yes: it connects with the M12 connector, without an electrician. The version is chosen for the lift table family, and the order states whether it is needed as an upper, lower or intermediate limit.

Start from how you will use it: people on board need guard rails and a gate; in a pit, limit switches, lifting eyes, mechanical blocks and an inspection hatch or external power unit; outdoors, an anti-slip deck and a covered power unit; loads that roll need an anti-roll stop, loads to be rotated a turntable. Tell us the model and the use and we will recommend the compatible accessories.

Many, yes: control pendants, limit switches, photocells and other electrical accessories plug into the M12 connectors of the UC-60 control unit, without an electrician and without opening it. The HD kit, anti-roll stop, adjustable mechanical blocks and anti-tip device must instead be ordered with the lift table, as they cannot be fitted later. To check compatibility, give us the model and serial number from the rating plate.

Limit Switch for Lifting Platforms

Limit switch for scissor lift tables

Why choose it

Always the same height

Fully adjustable

Plug & play UC-60

Technical data

Compatible with

Need help choosing?

Specifications

We want the lift table to always stop at the same working height: how?

Can a limit switch be added to a lift table we already have?

How do I choose the right accessories for my lift table?

Can I add an accessory after buying the lift table?
