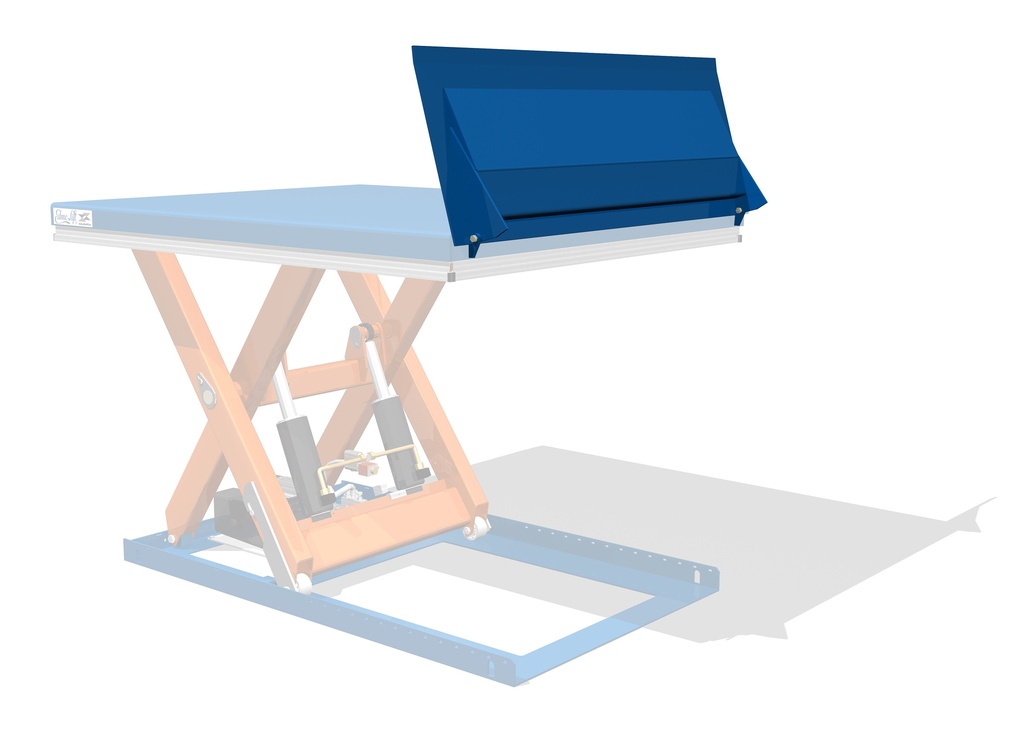

Manual Loading Bridge

Manually operated loading bridge, used to connect the platform to the loading dock or storage area.

Available in different widths (L) and depths (P), with a capacity of 2000 or 4000 kg.

Manual loading bridge for scissor lift tables

Manually operated bridge to link the lift table to the loading dock, storage area or vehicle. Available in several sizes and two capacities. Edmolift lift table accessory.

Manual operation2000 or 4000 kgTruck loading

Manual loading bridge for scissor lift tables

Why choose it

Link to the dock

Connects the platform to the dock, storage area or vehicle.

For truck loading

Option used mainly in special truck solutions.

Technical data

Dimension

W 800 x D 400 mm - 2000 kg, W 400 x D 400 mm - 2000 kg, W 500 x D 400 mm - 2000 kg, W 1000 x D 400 mm - 2000 kg, W 1200 x D 400 mm - 2000 kg, W 1000 x D 300 mm - 4000 kg, W 1000 x D 400 mm - 4000 kg, W 1200 x D 400 mm - 4000 kg

You choose the size (width × depth) and the capacity, 2000 or 4000 kg, according to the lift table.

Compatible with

Hydraulic Loading BridgeHydraulically operated version

TL 2000 Single Scissor Lift TableSingle scissor lift tables

TLH 2000 Tandem Scissor Lift TableHorizontal double scissor lift tables

HDL 2000 HD Series Lift TableHD series for continuous use

Any other questions?Read the 4 frequently asked questions →

Need help choosing?

Tell us the lift table model and serial number: we check the right accessory with Edmolift and prepare the quote.

Request a quote Call +39 0434 572757

Specifications

Dimension

W 800 x D 400 mm - 2000 kg

With the manual loading bridge, which connects the lift table to the loading dock, the storage area or the vehicle.

You choose the size, width × depth, and the capacity, 2000 or 4000 kg, according to the lift table. For hydraulic operation there is the hydraulic loading bridge, on request.

Start from how you will use it: people on board need guard rails and a gate; in a pit, limit switches, lifting eyes, mechanical blocks and an inspection hatch or external power unit; outdoors, an anti-slip deck and a covered power unit; loads that roll need an anti-roll stop, loads to be rotated a turntable. Tell us the model and the use and we will recommend the compatible accessories.

Many, yes: control pendants, limit switches, photocells and other electrical accessories plug into the M12 connectors of the UC-60 control unit, without an electrician and without opening it. The HD kit, anti-roll stop, adjustable mechanical blocks and anti-tip device must instead be ordered with the lift table, as they cannot be fitted later. To check compatibility, give us the model and serial number from the rating plate.

Manual Loading Bridge

Manual loading bridge for scissor lift tables

Why choose it

Link to the dock

For truck loading

Technical data

Compatible with

Need help choosing?

Specifications

There is a gap between the lift table and the loading dock: how do we bridge it?

How is the manual loading bridge chosen?

How do I choose the right accessories for my lift table?

Can I add an accessory after buying the lift table?
