Photoluminescent Fire Protection Signs
Photoluminescent fire protection signs made of durable plastic to mark fire extinguishers, alarm devices and firefighting equipment. Available for wall mounting and as angle signs, visible even in elongated rooms.
- Luminance class C to DIN 67510, 200/25 mcd/m² (10/60 min)
- Durable, hard-wearing plastic
- Pictograms to ASR A1.3 / DIN EN ISO 7010, red RAL 3001 and white RAL 9003
- Format 200x200 mm with pictogram
- Maximum recognition distance 20 m (200x200 mm)
- Custom printing on request
ORGATEX · Photoluminescent fire safety signs
Photoluminescent fire safety signs 200 × 200 mm: extinguishers and equipment visible even in the dark
Signs in durable plastic to mark fire extinguishers, fire hose reels, alarm devices and other fire-fighting equipment. The photoluminescent material, class C to DIN 67510 (200/25 mcd/m²), keeps glowing when the lights go out, without any power supply. Wall-mounted or angled, recognisable from up to 20 m.
Why choose it
Visible when the lights fail
The material charges with ambient light and, if the general lighting goes out, keeps glowing without any power supply or batteries.
Class C to DIN 67510
Luminance 200/25 mcd/m², measured 10 and 60 minutes after the end of illumination: above the minimum of 140/20 mcd/m² required for class C.
Recognisable from up to 20 m
200 × 200 mm format, pictogram in red RAL 3001 and white RAL 9003 to ASR A1.3 / DIN EN ISO 7010.
Wall-mounted or angled
Same pictogram and same format; the angled version ensures visibility even in long, narrow rooms.
Choose it if…
- you need to mark fire extinguishers, fire hose reels, alarm devices or fire-fighting equipment
- the signs must remain visible even if the lights go out
- you need a rigid wall-mounted or angled sign
Choose another solution if…
- if you need to mark emergency exits, escape routes or first aid equipment Photoluminescent Escape Signs →
- if the extinguisher must also be marked on the floor, with a half circle against the wall LongLife Floor Signs - Half Circle - 900 mm →
- if the escape route must also be marked on the floor, with photoluminescent tape Luminescent Tapes →
Not sure? Use the selection guide →
Mounting and customisation
Screw-fixed
The plastic signs are fixed to the wall with screws.
With double-sided tape
As an alternative to screws, with PE-SCHAUM foam tape: no drilling, even on uneven surfaces.
View product →Custom print
On request ORGATEX makes signs with custom text or pictogram.
Technical data
| Version | Wall Mount, Angled |
| Pack | 1 pc |

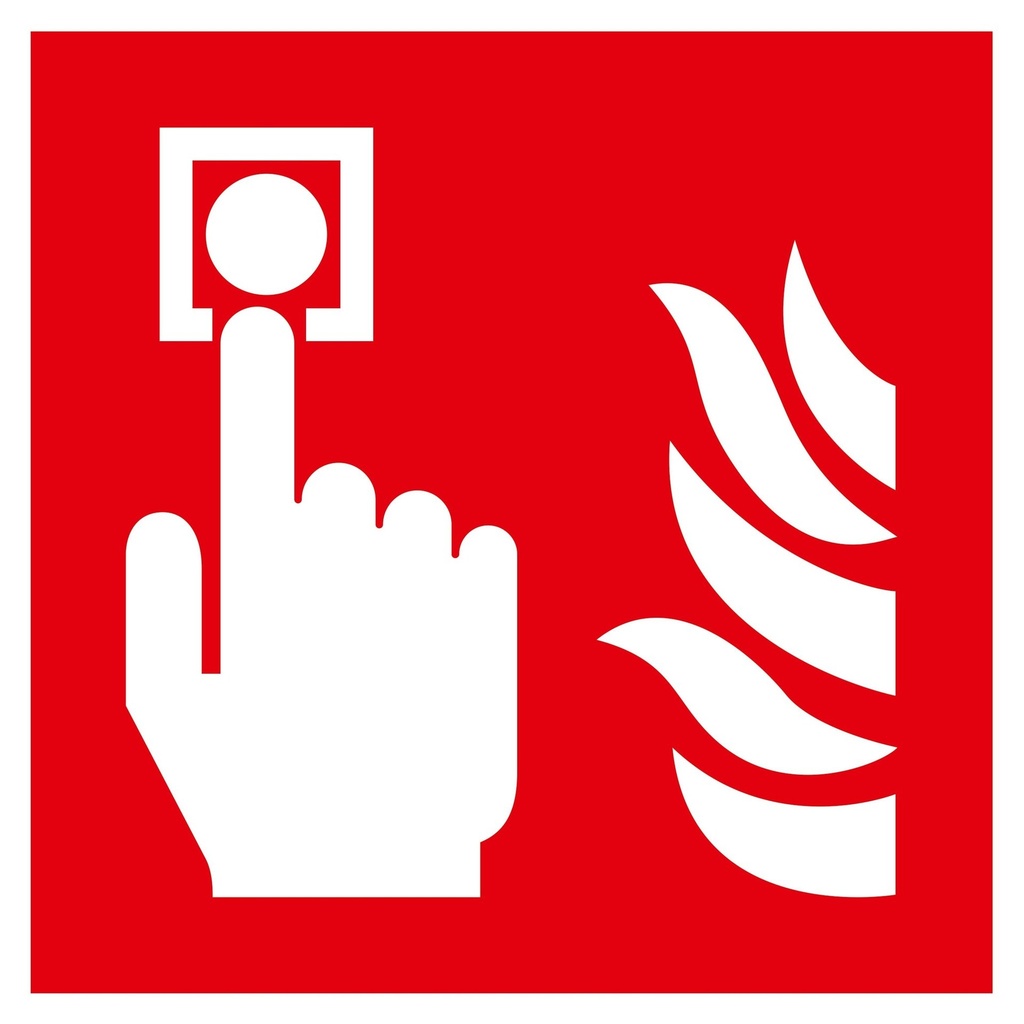

| Signs | Fire Alarm Call Point, Fire Extinguisher, Fire Emergency Telephone, Fire Hose Reel, Collection of Firefighting Equipment, Fire Ladder |
| Dimension mm | 200x200 |
ORGATEX data: luminance 200/25 mcd/m² to DIN 67510 (class C), measured 10 and 60 minutes after the end of illumination. Pictograms to ASR A1.3 / DIN EN ISO 7010, red RAL 3001 and white RAL 9003. Wall signs in 1.7 mm plastic.
Double-Sided Foam Tape for SignsTo fix them without drilling
Photoluminescent Escape SignsEmergency exits and first aid
LongLife Floor Signs - Half Circle - 900 mmFloor half circles for extinguishers
Luminescent TapesPhotoluminescent tape for escape routesNeed to update your fire safety signs?
Send us the floor plan or the list of equipment to be marked: we will recommend signs, versions and fixing. For large quantities we prepare a dedicated quote.
