Steel Platform 60 kg

Steel Platform 60 kg

https://leanproducts.eu/web/image/product.template/1807/image_1920?unique=d0a6f66

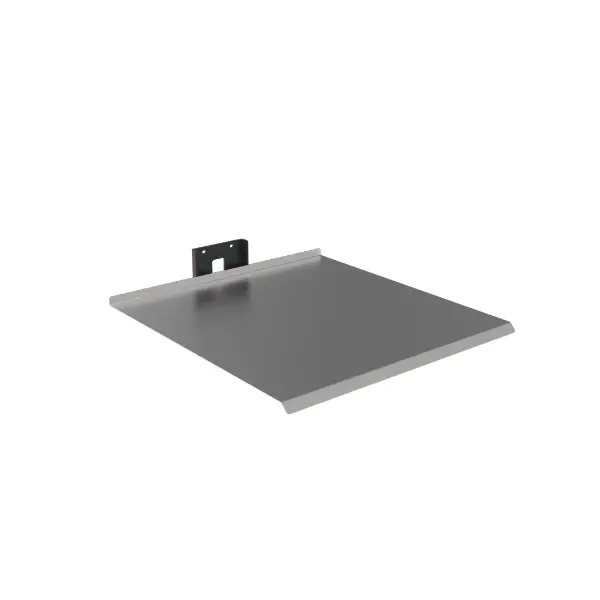

Platform with a stainless steel top for lifting boxes, crates and parts with the Work Positioner. The frame is in steel or stainless steel; capacity 60 kg from WP 65 to WP 205, 50 kg on the WP 55.

Read more ↓
Code: WPR-T-0007
  • Version
  • Length mm
  • Width mm

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Version Steel
Length mm 500
Width mm 500

Both have a 500 × 500 mm top: the stainless steel one has a smooth surface for boxes, crates and parts, the HDPE one is the lightest (5 kg against 7 kg). For food and pharmaceutical environments choose the stainless steel frame; for loads over 60 kg there is the 85 kg stainless steel platform (WPR-T-0008).

Usable capacity with this tool: 50 kg on the WP 55, 60 kg on the WP 65, 60 kg on the WP 85, 60 kg on the WP 125 and 60 kg on the WP 205. For stainless steel Work Positioners there is the stainless steel version, code WPR-T-0007-SS.

Yes, with the quick change for manual tools: the trolley part stays on the Work Positioner (WPR-A-0001-SS up to the WP 125, WPR-A-0003-SS for WP 125 and WP 205) and the tool part is fitted to this tool. You can then change it in a few seconds, on your own, without unscrewing it; without the quick change it is fixed to the carriage with screws.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.
