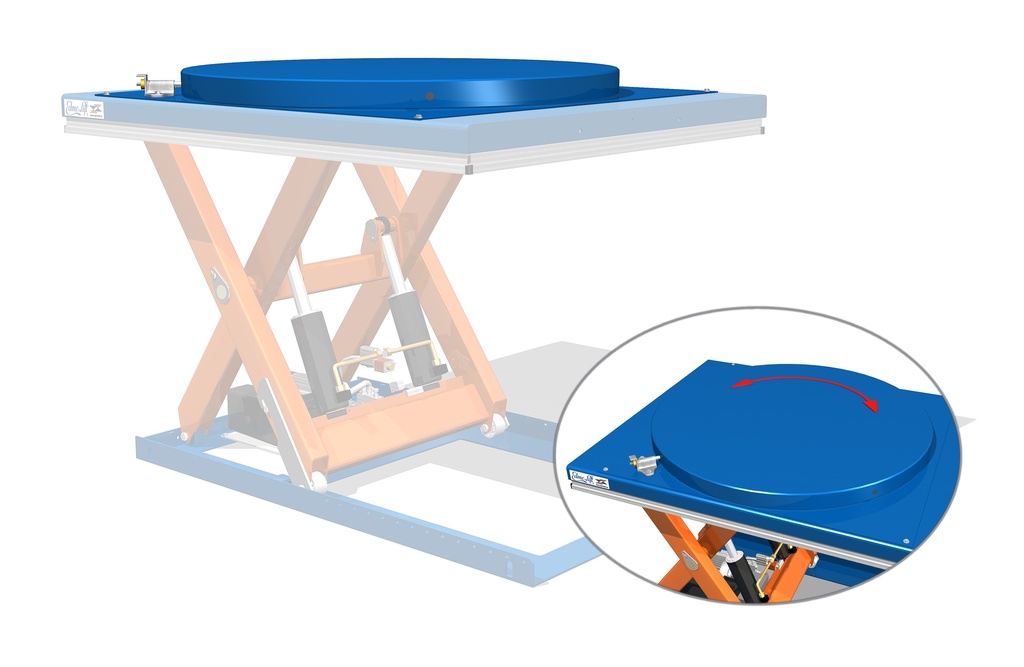

Turntable for Lifting Platforms

With the turntable mounted on the platform: the operator rotates the part and works from the side needed. It carries 1000 kg, has an adaptable locking device and can also be supplied recessed into the platform.

The lift table must have at least twice the capacity of the load to be rotated: 1000 kg requires a 2000 kg lift table. The turntable diameter is chosen according to the load and the platform.

Start from how you will use it: people on board need guard rails and a gate; in a pit, limit switches, lifting eyes, mechanical blocks and an inspection hatch or external power unit; outdoors, an anti-slip deck and a covered power unit; loads that roll need an anti-roll stop, loads to be rotated a turntable. Tell us the model and the use and we will recommend the compatible accessories.

Many, yes: control pendants, limit switches, photocells and other electrical accessories plug into the M12 connectors of the UC-60 control unit, without an electrician and without opening it. The HD kit, anti-roll stop, adjustable mechanical blocks and anti-tip device must instead be ordered with the lift table, as they cannot be fitted later. To check compatibility, give us the model and serial number from the rating plate.
