Wave platform

Wave platform

https://leanproducts.eu/web/image/product.template/1816/image_1920?unique=d0a6f66

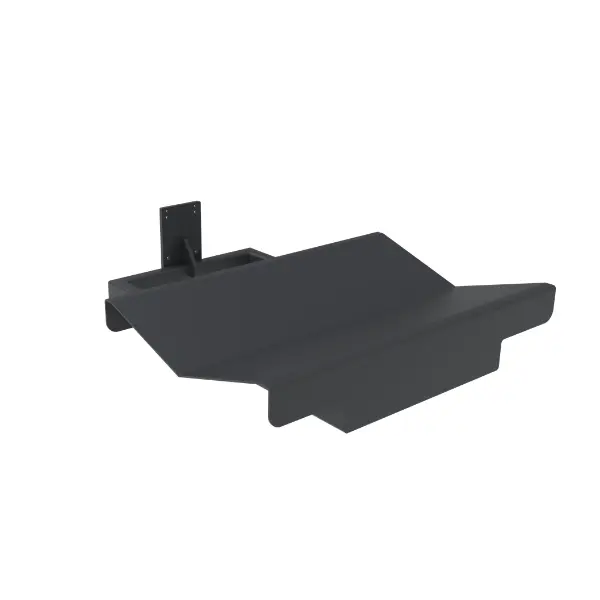

The Wave platform is an industrial positioning solution available in steel and stainless steel versions, measuring 400 × 600 mm. It is part of the LeanProducts range of Work Positioner and Lift & Tilt Solution products, providing stable, repeatable support for components with a cylindrical or irregular profile. Availability in stainless steel also makes it suitable for environments with high hygiene or corrosion resistance requirements.

Read more ↓
Code: WPR-T-0014
  • Version
  • Length mm
  • Width mm

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Version Steel
Length mm 400
Width mm 600

A platform with a wave-shaped top, different from the flat top, in painted steel or stainless steel; it weighs 14 kg. For larger, heavier loads there is the version with rollers, 800 × 550 mm (WPR-T-9039), up to 160 kg.

Usable capacity with this tool: 50 kg on the WP 65, 70 kg on the WP 85, 80 kg on the WP 125 and 80 kg on the WP 205. For stainless steel Work Positioners there is the stainless steel version, code WPR-T-0014-SS.

Yes, with the quick change for manual tools: the trolley part stays on the Work Positioner (WPR-A-0001-SS up to the WP 125, WPR-A-0003-SS for WP 125 and WP 205) and the tool part is fitted to this tool. You can then change it in a few seconds, on your own, without unscrewing it; without the quick change it is fixed to the carriage with screws.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.
