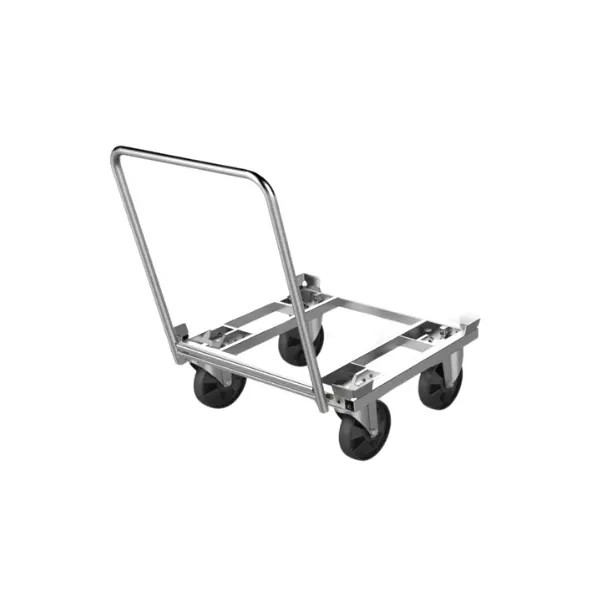

LL Trolley

A tugger train is an electric tractor that tows several trolleys or trailers along a set route. In the milk run, one of the basic methods of lean logistics, the train does a round at regular intervals, like the milkman: it delivers materials to the points of use, collects empty containers and kanban cards and returns to the warehouse. Compared with individual forklift trips, you reduce traffic, waiting and line-side stock. With the LiftLiner you transport trolleys of up to 1000 kg and load and unload them without lifting; with the Milkrun Drawbar Assembly you hitch dollies and pallet dollies to the tractor.

Three sizes: 600 × 800, 1200 × 800 and 1200 × 1000 mm, for loads of up to 1000 kg. You can load Euro pallets and 1200 × 1000 pallets, folding cages such as the SmartCube Light, or boxes and containers on a plywood or aluminium deck. The retaining corners hold the load in position during travel.

All versions have Ø 200 mm polyamide castors with ball bearings and 2 braked castors. With 2 swivel and 2 fixed, the trolley holds its direction when you push it along long stretches; with 4 swivel it turns on the spot and gets into tight spaces more easily; the 4 self-aligning swivel castors, for the 1200 × 800 and 1200 × 1000 sizes, straighten themselves in the direction of travel. We recommend the right version by looking at how you use it between one train run and the next.

LL Trolleys in the sizes 600 × 800, 1200 × 800 and 1200 × 1000 mm, for pallets, cages and containers, and the three-shelf LL Taxi Trolley. You can mix sizes and types in the same train without losing capacity: each bay carries one trolley of up to 1000 kg. For 600 × 800 trolleys and non-standard trolleys there is an adapter and an extended scissor drawbar: we assess them with you during the analysis phase.

It is the LP-KCL16 version: 1200 × 800 mm, 4 swivel castors of which 2 braked, capacity up to 750 kg instead of 1000 kg. Choose it if your loads stay below 750 kg.

Yes: it is a fully fledged pallet trolley and a single person can move it. To push it comfortably, choose the version with a fixed handle or fit the removable handle, which attaches on either side. The 2 braked castors keep it still at the workstation.

Yes, empty LL Trolleys stack on top of each other: they take up little space when returning to the warehouse or waiting at the end of the line.

Not for pallets and cages: they rest on the frame, between the retaining corners. For boxes, containers or loose parts, fit the Deck for LL Trolley, in anti-slip plywood or aluminium chequer plate, in the sizes 1200 × 800 and 1200 × 1000 mm.

We start from your flows: what you carry, where, how often and in which containers. We design the route and drop-off points with you, choose trolleys, dollies and accessories and size the train: how many LiftLiners, how many trolleys, which tractor. Then we deliver, commission and show operators how to load, hitch and unload safely. Spare parts and support stay with us.
