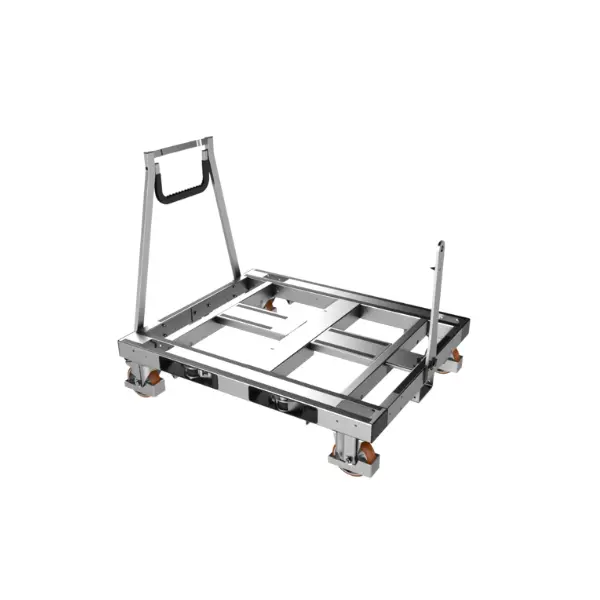

Dolly Pallet

https://leanproducts.eu/web/image/product.template/2008/image_1920?unique=58e6883

The Dolly Pallet is the pallet trolley for lean logistics: it carries Euro pallets and ISO pallets, KLT containers, cages and collapsible boxes. Push it by hand with the folding handle or hitch it into the tugger train with the retractable drawbar.

Sizes 1200×800 and 1200×1000 mm, capacity 1000 kg, up to 4000 kg in the train (6 trolleys), polyurethane castors Ø 160 mm with brake, deck in anti-slip tape, plywood or aluminium. Stackable when empty.

Read more ↓
Code: LP-KP015
from
not with
options
Prices per piece + VAT
Prices per pack of %s + VAT
Prices per pack of %s pcs + VAT
colors
only
of
available
  • Dimensions mm
  • Version
  • Wheels
  • Extra
  • Load capacity (kg)

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Dimensions mm 1200x800
Version Anti-slip tape
Wheels 2 swivel with brake - 2 fixed, polyurethane Ø 160
Extra Retractable 3-position drawbar and foldable handle
Load capacity (kg) 1000

It is a low pallet trolley on castors, designed for lean logistics: it carries 1200x800 Euro pallets, 1200x1000 ISO pallets, stacks of KLT containers, cages and folding crates, up to 1000 kg. You push it by hand with the handle or hitch it into a tugger train behind a tow vehicle.

The Dolly Pallet has a low deck, 1200x800 or 1200x1000, and is stackable when empty. The Raised Dolly Pallet brings the load to about 600 mm off the ground, with retaining corners: the operator picks with less bending. The Mini Dolly Pallet, 923x600 mm, is for 800x600 pallets and small cages. The Dolly Pallet Extension is 800 mm wide and 1200 to 1800 mm long, for long loads. All carry 1000 kg.

Up to 6 trolleys, with a total load of 4000 kg and a recommended maximum speed of 6 km/h. The retractable drawbar has 3 positions and a quick-coupling hook. We check train length and space on curves with you on the actual route.

On the tow vehicle you fit the Milkrun Drawbar, which tows a row of Dolly Pallets or Dolly Taxis. In the same train you can put different trolleys: Dolly Pallet, Raised, Mini, Dolly Taxi and Taxi Liner. The round runs at fixed times, takes full loads to the line and brings back the empties.

160 mm polyurethane castors with aluminium centre and precision ball bearings, with foot guard: 2 fixed and 2 swivel with brake. With the 6-castor upgrade (Dolly Pallet, Raised and Dolly Taxi) the trolley turns 360° on the spot.

They are the three deck versions. Anti-slip tape is the basic version for pallets and loads that rest on the frame. Anti-slip plywood and aluminium chequer plate give a continuous surface, also useful for boxes and loose loads.

Yes: with the handle folded, the Dolly Pallet and the Mini Dolly Pallet stack up to 6 units in 1680 mm, thanks to the stacking holes. The Raised Dolly Pallet, with its high deck and fixed handle, is not designed to be stacked.

With ratchet straps, fitted on the left or right side, and with retaining corners and plates. The Raised Dolly Pallet already has retaining corners.

Yes, with the fork guide set: the forks enter at the right point and the trolley is lifted and loaded safely. The set suits both Dolly Pallet and Dolly Taxi.

Yes, with the dedicated coupling accessory, on request: a pallet dolly tows one or two rows of Dolly VII or Dolly 800x600 with drawbar. This way you carry pallets and stacks of KLT containers in the same train.

Yes. We analyse flows, loads, routes and tow vehicles with you, choose the right trolleys and accessories and help you get the round going. With LeanProducts you have a single point of contact for spare parts and support too.
