T Series Roller Conveyor Module
The roller conveyor module for PUDU T300 loads and unloads containers from conveyors and machines on its own: the robot docks with ±10 mm and ±1° precision and receives pick-up and delivery notifications from the PLC.
Single or double level, 80 kg per level (160 kg with the double level), containers 650 mm deep and 120 to 540 mm wide, minimum passage 75 cm. It is the solution for line feeding from person to line, line to line and line to person.
PUDU · Accessories T300

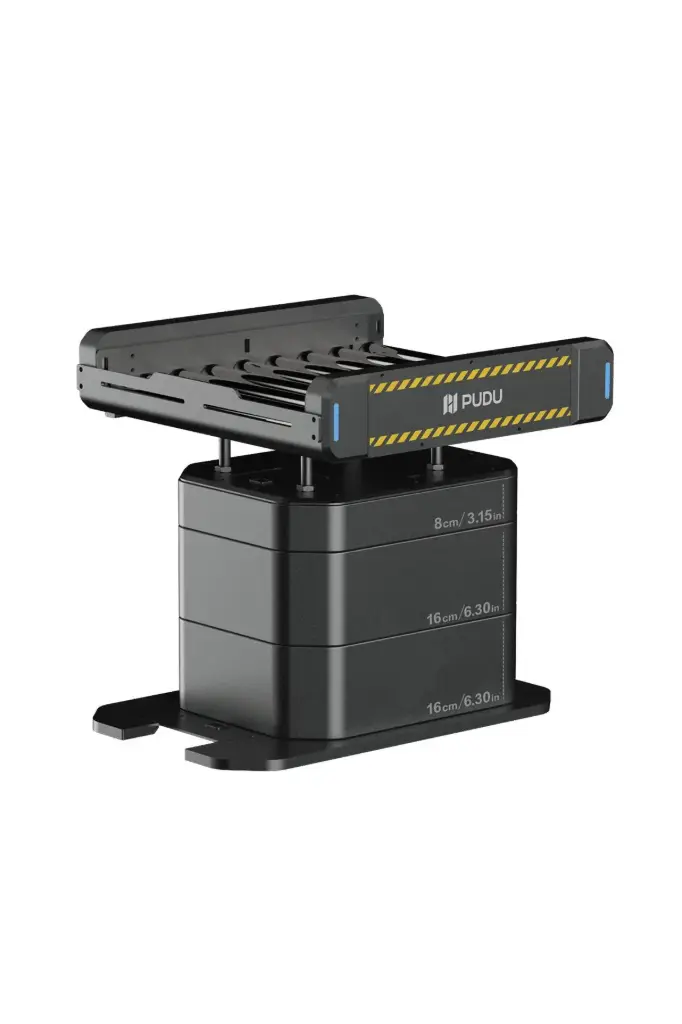

Roller module for T300: automatic loading and unloading from roller conveyors and machines
With the roller module the T300 docks with a roller conveyor or machine with ±10 mm accuracy and transfers the containers by itself, without an operator. It receives pick-up and delivery notifications from the PLC: it is the solution for line feeding from person to line, line to line and line to person.
Why choose it
Transfer without an operator
The robot aligns with the roller conveyor and the on-board roller loads or unloads the container: nobody has to move it by hand.
Communicates with the PLC
It receives pick-up and delivery notifications from the PLC: it fits into the cycles of automatic lines and machines.
Single or double deck
One or two decks of 80 kg each: with the double deck you carry two containers per trip, up to 160 kg.
Containers of different sizes
Usable width adjustable from 120 to 540 mm, depth 650 mm.
Data and compatibility
| Item | Value |
|---|---|
| Compatible with | T300; T600 to be confirmed in the quote |
| Versions | Single deck or double deck |
| Payload | 80 kg per deck (double deck: 160 kg) |
| T300 weight with roller module | 120 kg (single deck) · 180 kg (double deck) |
| Robot footprint with roller module | 835 × 665 × 1350 mm (front/rear transfer) · 835 × 650 × 1350 mm (side) |
| Minimum passage | 75 cm |
| Docking accuracy | ±10 mm, ±1° |
| Container | Depth 650 mm; adjustable width 120–540 mm |
| Height from floor | At least 305 mm; height for your line to be confirmed in the quote |
| Battery life | Single deck 12 h empty / 10 h loaded · double deck 10 h / 8 h |
| Integration | Pick-up and delivery notifications with PLC |
Transfer height and side are defined on your line: we check them during the site survey.
Compatible with
Pudu T300Compatible robot
Want to know which accessory your PUDU robot needs?
Tell us the model, serial number and what your environment is like: we will confirm the right code and, if needed, check everything during a site visit.
