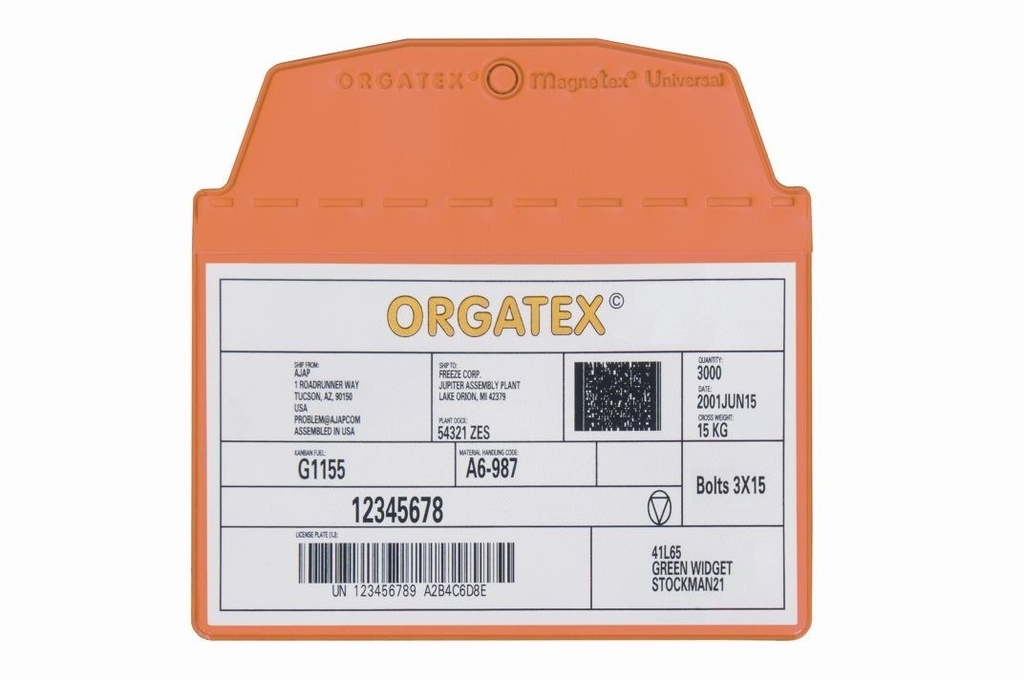

Hanging Visual Pockets

The header has 5 holes and a slot. The universal support slides into the slot and is used for wire mesh boxes and containers with walls up to 4 cm (not for A7, A4 landscape or flap versions). The special retaining clamp goes through the two outer holes and is ideal for A4 landscape; the mini clamp is only for A6 landscape and A5 portrait; the container clamp fits walls up to approx. 2 or 5 cm thick. On cartons, bars and tubes use U-clamps, steel clips, Gripper hooks or binders.

Outer dimensions (W × H): A7 landscape 115 × 112 mm; A6 landscape 159 × 159 mm; 1/3 DIN 230 × 160 mm; A5 landscape 230 × 205 mm; A5 portrait 160 × 264 mm; A4 landscape 325 × 268 mm; A4 portrait 229 × 350 mm. The inner pocket measures, for example, 322 × 217 mm in A4 landscape and 225 × 108 mm in 1/3 DIN.

Yes: they hang on wire boxes and containers, the card is read and scanned without taking it out, and the 9 header colours separate loops, suppliers or departments. With the Gripper hook accompanying documents are swapped quickly.

According to the ORGATEX data sheet the PVC withstands -20 to +80 °C for short periods. It is not resistant to solvents such as tetrachloroethylene.

Yes: the hanging visual pocket with protective flap, in A5 landscape, A4 portrait and A4 landscape, in the same 9 colours. The flap keeps the document free from dirt.

The magnetic holder sticks to all iron and steel surfaces – shelves, cabinets, machines, metal mesh boxes and containers – does not slip and can be moved without tools. The self-adhesive holder is fixed with foam strips on metal, wood, plastic and glass, even if the surface is not perfectly flat, and holds even under strong vibration: it is the choice for positions that do not change. If the container has no suitable surface, use the hanging pocket with brackets or hooks. On non-metal surfaces you can also stick on the self-adhesive metal tape or magnetic tape and then use magnetic products.

Choose the pocket by the sheet format: 1/3 DIN (99 × 210 mm, one third of A4) for narrow documents, folded A4 sheets and barcodes; A7 (74 × 105 mm) and A6 (105 × 148 mm) for cards and short information; A5 (148 × 210 mm) and A4 (210 × 297 mm), landscape or portrait, for checklists, work instructions and shift plans. Inside and outside dimensions are on each product page. Versions with closing flap come in A5 landscape and A4 landscape and portrait, the Outdoor pocket in A5 and A4 landscape.

Standard pockets, label holders and magnetic labels are designed for indoor use, and information frames are suitable for indoor use only. Outdoors, in wet areas and where there are water splashes, use the Outdoor document holder: the zip on the bottom edge protects the document from wet, dirt and mechanical stress. It comes in A5 and A4 landscape, blue or yellow, self-adhesive, magnetic or hanging; it withstands -20 to +80 °C for short periods. For pallets there is the pallet clip, suitable for indoor and outdoor use.

With a soft or damp cloth and, if needed, a mild detergent. Avoid solvents: according to the data sheets the PVC of the pockets is not resistant to solvents such as tetrachloroethylene. Do not use chemicals or alcohol on Anti-Stick surfaces and do not rub too hard. Magnetic Windows® and repositionable adhesive windows are cleaned with a damp cloth.

Quantities are ordered in packs: the number of pieces is shown in the «Pack» attribute of each product. Document pockets come in packs of 10; previously packs of 50 were shown, so for the same quantity order 5 packs. Label holders usually come in 50 or 100 pieces, KAN-Label and KLT-Snapper Kanban sleeves in 50; for Mega label holders and insert cards the number depends on the format.

Hanging pockets have 5 holes in the header and a slot. The universal support slides into the slot and is for mesh boxes and walls up to 4 cm (not with flap, A7 or A4 landscape); the special retaining clamp goes through the outer holes and is ideal for A4 landscape; the mini clamp is only for A6 landscape and A5 portrait; the container clamp fits walls up to about 2 cm. For mesh boxes there are the Gripper hooks, for 28 to 30 mm tubes the Gripper Ø 28; for cartons and packaging, the metal clamp, plastic nails or U-clamp; for lasting fixing, plastic cable ties. The same accessories work for ESD pockets and the standard Outdoor pocket.
