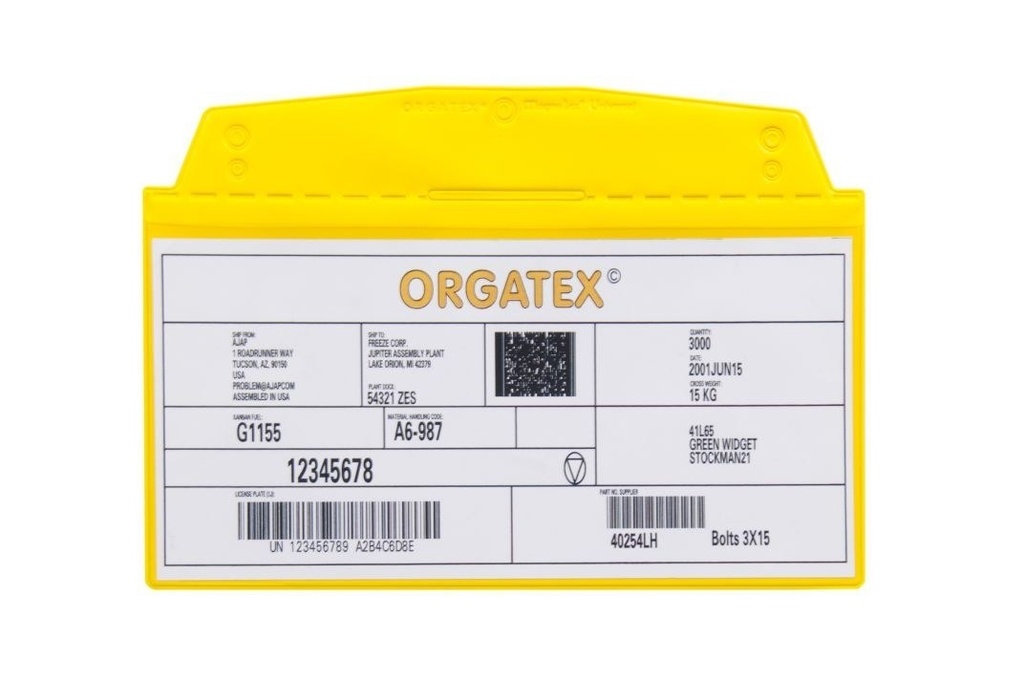

Magnetic visual pocket

https://leanproducts.eu/web/image/product.template/43/image_1920?unique=f20c9d2

The magnetic document holder lets you display work instructions, inspection sheets, kanban cards and production documents on any metal surface: shelving, cabinets, machines, trolleys and boards. The magnetic document holder can be placed and moved in a moment, without screws or adhesive, and is a basic visual management tool on the shop floor and in the warehouse.

It is made of durable PVC plastic; the transparent front lets you read the document without taking it out and scan the barcode. The top opening makes inserting and replacing sheets quick.

  • Formats: 1/3 DIN landscape, A7 landscape, A6 landscape, A5 landscape and portrait, A4 landscape and portrait
  • Versions: one, two or four magnetic strips, or full magnetic surface
  • Magnetic strips on the back, 25 mm wide and 2 mm thick, with high holding force
  • 9 colours: red, white, blue, yellow, green, orange, light grey, dark grey, transparent
  • Suitable for barcode readers
  • Pack of 10

The colours let you code departments, statuses or priorities at a glance, while the choice of magnetic version depends on the format and weight of the document to be displayed.

Read more ↓
Code: MA1310-04
from
not with
options
Prices per piece + VAT
Prices per pack of %s + VAT
Prices per pack of %s pcs + VAT
colors
only
of
available
  • Colour
  • Formats
  • Version
  • Pack

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Orgatex
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Colour Red
Formats 1/3 DIN Landsc.
Version Single magnetic strip
Pack 10 pcs
Tags
Tags
Orgatex

It depends on the format and weight of the document. With 1 or 2 strips you get all 7 formats; 4 strips are available in A5 and A4, the full-surface magnetic sheet from A6 to A4. For heavy documents, vibration or small or irregular surfaces there is the Neodym pocket.

Isotropic rubber ferrite strips, 25 mm wide and 2 mm thick, with multipolar magnetisation. The ORGATEX data sheet states a magnet strength of approx. 40–45 g/cm².

Outer dimensions (W × H): A7 landscape 115 × 112 mm; A6 landscape 159 × 159 mm; 1/3 DIN 230 × 160 mm; A5 landscape 230 × 205 mm; A5 portrait 160 × 264 mm; A4 landscape 325 × 268 mm; A4 portrait 229 × 350 mm. The inner pocket measures, for example, 322 × 217 mm in A4 landscape and 225 × 108 mm in 1/3 DIN.

Yes: the magnetic visual pocket with closing flap, in A5 landscape, A4 landscape and A4 portrait, with the same 4 magnetic versions and 9 colours.

According to the ORGATEX data sheet the PVC withstands -20 to +80 °C for short periods. It is not resistant to solvents such as tetrachloroethylene.

The magnetic holder sticks to all iron and steel surfaces – shelves, cabinets, machines, metal mesh boxes and containers – does not slip and can be moved without tools. The self-adhesive holder is fixed with foam strips on metal, wood, plastic and glass, even if the surface is not perfectly flat, and holds even under strong vibration: it is the choice for positions that do not change. If the container has no suitable surface, use the hanging pocket with brackets or hooks. On non-metal surfaces you can also stick on the self-adhesive metal tape or magnetic tape and then use magnetic products.

The standard magnetic holder has 2 mm ferrite strips (approx. 40–45 g/cm²), with 1, 2 or 4 strips or a full-surface magnetic sheet, from DIN A7 to A4 and 1/3 DIN. The Neodym has two neodymium magnets welded into the pocket: it holds even with vibration and transport and on small, uneven or curved surfaces, and comes in A6 and A5 landscape and A4 landscape and portrait, also with an extra magnetic strip. Both are available with a closing flap (the Neodym with flap is light grey); the Neodym also comes in an ESD version.

Choose the pocket by the sheet format: 1/3 DIN (99 × 210 mm, one third of A4) for narrow documents, folded A4 sheets and barcodes; A7 (74 × 105 mm) and A6 (105 × 148 mm) for cards and short information; A5 (148 × 210 mm) and A4 (210 × 297 mm), landscape or portrait, for checklists, work instructions and shift plans. Inside and outside dimensions are on each product page. Versions with closing flap come in A5 landscape and A4 landscape and portrait, the Outdoor pocket in A5 and A4 landscape.

Standard pockets, label holders and magnetic labels are designed for indoor use, and information frames are suitable for indoor use only. Outdoors, in wet areas and where there are water splashes, use the Outdoor document holder: the zip on the bottom edge protects the document from wet, dirt and mechanical stress. It comes in A5 and A4 landscape, blue or yellow, self-adhesive, magnetic or hanging; it withstands -20 to +80 °C for short periods. For pallets there is the pallet clip, suitable for indoor and outdoor use.

With a soft or damp cloth and, if needed, a mild detergent. Avoid solvents: according to the data sheets the PVC of the pockets is not resistant to solvents such as tetrachloroethylene. Do not use chemicals or alcohol on Anti-Stick surfaces and do not rub too hard. Magnetic Windows® and repositionable adhesive windows are cleaned with a damp cloth.

Quantities are ordered in packs: the number of pieces is shown in the “Pack” attribute of each product. Document pockets come in packs of 10; previously packs of 50 were shown, so for the same quantity order 5 packs. Label holders usually come in 50 or 100 pieces, KAN-Label and KLT-Snapper Kanban sleeves in 50; for Mega label holders and insert cards the number depends on the format.
