ESD Hanging Document Pocket A7–A4

ORGATEX · ESD · Hanging visual pockets

ESD hanging visual pockets: dissipative pockets for EPAs

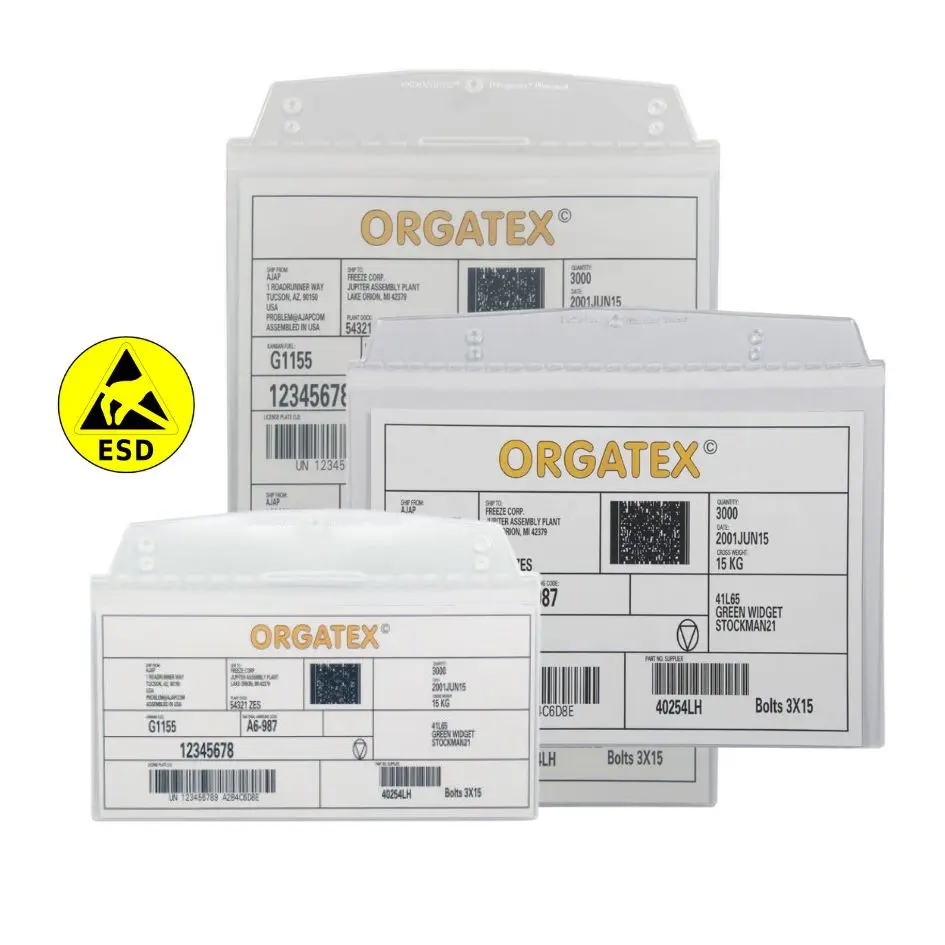

Production areas sensitive to electrostatic discharge need document holders that do not compromise ESD protection. These hanging pockets in permanently dissipative IDP-STAT® film, meeting DIN EN 61340-5-1, keep work instructions, test documents and process information clean and clearly visible. 7 formats from A7 to A4, 9 colours, 5 hanging holes and a slot for the universal support.

DIN EN 61340-5-1Permanently dissipative7 formats, A7 to A49 coloursScanner-readable

ESD hanging visual pockets: dissipative pockets for EPAs

7formats

9colours

0.25 mmIDP-STAT® film thickness

10⁹–10¹⁰ Ωtypical surface resistance

Why choose it

Permanent ESD protection

Permanently dissipative IDP-STAT® (Inherently Dissipative Polymer) film: it does not build up static charge and meets the requirements of DIN EN 61340-5-1.

Hangs like the standard version

5 holes and a slot: the same accessories apply, from the universal support to brackets and clamps.

Scanner-readable

The transparent front lets you read documents and barcodes without taking them out.

Colour coding in the EPA too

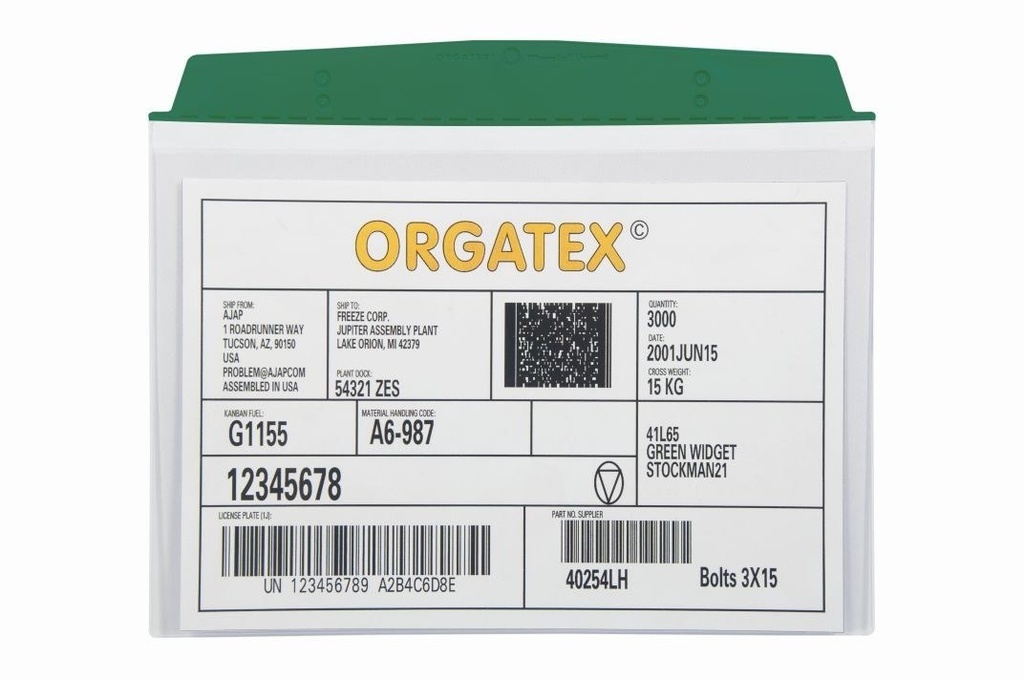

9 header colours to tell lines, departments or progress statuses apart.

Choose it if…

you work in an EPA
the document has to hang on containers, wire boxes or shelves
you need formats from A7 to A4

Choose another solution if…

if in an EPA the surface is metal ESD Neodym Magnetic Visual Pockets →
if in an EPA the document has several pages ESD Magnetic pocket for A4 sheets →
if you need an ESD A4 pocket to collect several sheets ESD Pocket for A4 Document →
if you are not in an EPA Hanging Visual Pockets →

Not sure which one to choose? Use the Visual Management guide →

Where it is used

In EPAs the ESD pocket brings information to the point of use without compromising protection:

Work instructions at the assembly workstation
Test documents and inspection reports next to the product
Process information on containers and wire boxes moving around the area
Container identification with scanner-readable barcodes
Standard work that is the same across the area: less searching, more process reliability

Technical data

Colour	Red, White, Blue, Yellow, Green, Orange, Light Grey, Dark Grey, Transparent
Formats	1/3 DIN Landsc., A7 Landsc., A6 Landsc., A5 Landsc., A5 Portr., A4 Landsc., A4 Portr.
Pack	10 pcs

Choose format and header colour. Outer dimensions W × H: A7 landscape 115 × 112 mm, A6 landscape 159 × 159, 1/3 DIN 230 × 160, A5 landscape 230 × 205, A5 portrait 160 × 264, A4 landscape 325 × 268, A4 portrait 229 × 335 mm. 0.25 mm IDP-STAT® film, recyclable.

Accessories and related products

Universal SupportFor wire boxes and containers up to 4 cm

Special retaining clampSpecial clamp, ideal for A4 landscape

Mini Retaining ClampMini clamp for A6 landscape and A5 portrait

Container clampFor thick-walled containers

Universal U-ClampU-clamp for cartons, film and wire boxes

Hanging Visual PocketsStandard version

Any other questions?Read the 6 frequently asked questions →

Need help choosing?

We recommend the right format, fixing and accessories for your department, warehouse or office. For large quantities or recurring supplies we'll prepare a tailored quote.

Request a quote Call +39 0434 572757

Specifications

Colour	Red
Formats	A7 Landsc.
Pack	10 pcs

Tags
Tags	Orgatex

The header has 5 holes and a slot. The universal support slides into the slot and is used for wire mesh boxes and containers with walls up to 4 cm (not for A7, A4 landscape or flap versions). The special retaining clamp goes through the two outer holes and is ideal for A4 landscape; the mini clamp is only for A6 landscape and A5 portrait; the container clamp fits walls up to approx. 2 or 5 cm thick. On cartons, bars and tubes use U-clamps, steel clips, Gripper hooks or cable ties.

Formats, colours and hanging system are the same; the material changes: 0.25 mm IDP-STAT® film, permanently dissipative and meeting DIN EN 61340-5-1, instead of soft PVC. In A4 portrait the size is slightly different: 229 × 335 mm outside.

Typical values of 10⁹ to 10¹⁰ Ω, within a limit of 1 × 10⁵ to below 1 × 10¹¹ Ω, measured at 12 ± 3% relative humidity and 23 ± 2 °C (ORGATEX data). The film is permanently dissipative and meets the requirements of DIN EN 61340-5-1.

Choose the pocket by the sheet format: 1/3 DIN (99 × 210 mm, one third of A4) for narrow documents, folded A4 sheets and barcodes; A7 (74 × 105 mm) and A6 (105 × 148 mm) for cards and short information; A5 (148 × 210 mm) and A4 (210 × 297 mm), landscape or portrait, for checklists, work instructions and shift plans. Inside and outside dimensions are on each product page. Versions with closing flap come in A5 landscape and A4 landscape and portrait, the Outdoor pocket in A5 and A4 landscape.

The ESD versions are made of permanently dissipative IDP-STAT® film and meet the requirements of DIN EN 61340-5-1, so they are used in EPA protected areas. Typical surface resistance is 10⁹–10¹⁰ Ω. There are hanging and Neodym document holders, hanging Kanban-Covers, KAN-Label and KLT-Snapper for KLT containers to VDA 4902, FLIP-MAG pockets and an A4 pocket. The ESD Systembox and ESD Kanban mailbox, on the other hand, are made of low-charging ABS.

Hanging pockets have 5 holes in the header and a slot. The universal support slides into the slot and is for mesh boxes and walls up to 4 cm (not with flap, A7 or A4 landscape); the special retaining clamp goes through the outer holes and is ideal for A4 landscape; the mini clamp is only for A6 landscape and A5 portrait; the container clamp fits walls up to about 2 cm. For mesh boxes there are the Gripper hooks, for 28 to 30 mm tubes the Gripper Ø 28; for cartons and packaging, the metal clamp, plastic nails or U-clamp; for lasting fixing, plastic cable ties. The same accessories work for ESD pockets and the standard Outdoor pocket.
