Dolly 1200x800

https://leanproducts.eu/web/image/product.template/2004/image_1920?unique=7929585

Dolly 1200x800 is a light dolly, 19 kg, the size of a euro pallet: it carries a 1200×800 pallet, four stacks of 600×400 containers or three stacks of 800×400, with a drawbar to work in the tugger train.

Capacity 300 kg, up to 1600 kg in the train, 6 wheels Ø 100 mm (4 swivel, 2 fixed) in polyamide or polyamide and rubber. Stackable when empty, up to 15 pieces.

Read more ↓
Code: LP-KD901
  • Dimension mm
  • Wheels
  • Drawbar
  • Capacity Kg

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Dimension mm 1200x800
Wheels 4 Swivel Polyamide - 2 Fixed Polyamide Ø 100
Drawbar Yes
Capacity Kg 300

On the 1200 × 800 mm format: 4 dollies 600 × 400, 2 dollies 800 × 600, 2 dollies 600 × 400 plus 1 dolly 800 × 600, or 1 dolly 1200 × 800. The maximum load is 1000 kg per Adaptor Pallet. For the ISO 1200 × 1000 mm format we confirm the combination based on your dollies.

A 1200x800 Euro pallet, cages and folding containers, or stacks of containers: four 600x400, three 800x400 or eight 300x400. The capacity is 300 kg.

The Dolly 1200x800 weighs 19 kg, has 6 100 mm castors and carries 300 kg: it is light and stacks up to 15 units. The Dolly Pallet weighs 66 kg, has 160 mm polyurethane castors with brake, a handle and a retractable drawbar, and carries 1000 kg. For heavy loads or less even floors, choose the Dolly Pallet.

Up to 5–6 dollies, with a total load of 1600 kg and a recommended maximum speed of 6 km/h. We check the right number with you based on tow vehicle and route.

Polyamide (PA) is the standard castor: hard and smooth-rolling, it suits smooth industrial floors. Elastic rubber is softer and quieter and is kind to delicate floors. ESD polyamide dissipates electrostatic charges and is needed in areas where electronic components are handled. On request there are also ESD rubber, polyurethane, ESD polyurethane and Clean wheel. All have ball bearings.

With 4 swivel and 2 fixed castors the 1200 mm long dolly manoeuvres well and holds its direction. You can have them all in polyamide (LP-KD901) or with the 2 fixed castors in rubber (LP-KD905).

The 600x400 Type I, II and VII B dollies stack up to 15 units in about 1950 mm. The Dolly 800x600 and 1200x800 also reach 15 units in 1955 mm, 2300 mm in the versions with drawbar. The Type VII C, with its raised deck, stacks up to 3 units. This way returning empties takes up little space on the train and in the warehouse.

With the Lean Adaptor Pallet, the steel pallet for dollies: it carries 4 600x400 dollies, or 2 800x600 dollies, 1 800x600 and 2 600x400 dollies, or one 1200x800 dolly, up to 1000 kg. You move it with the forklift from the long and the short side and load it onto the truck; on arrival the dollies come off the pallet without lifting them.

Yes. We start from what you move (containers, sizes and weights), the routes and the floors: we propose the type of dolly, castors, drawbar and accessories and how to build the train with the tow vehicles you have. With LeanProducts you have a single point of contact for spare parts and support too.

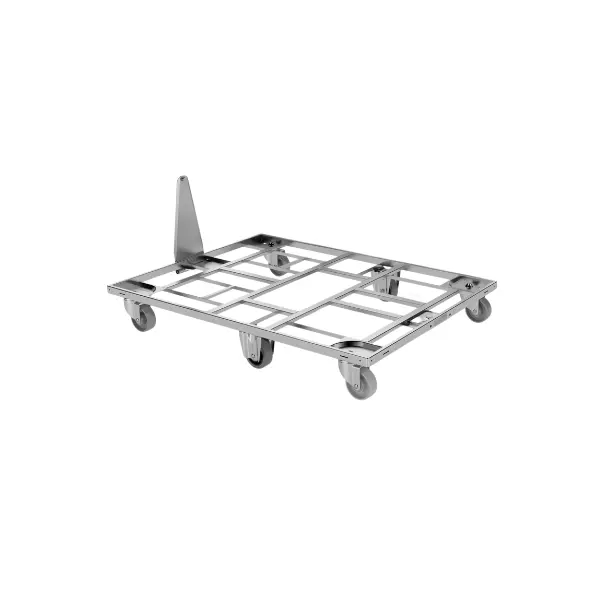

Product Image
