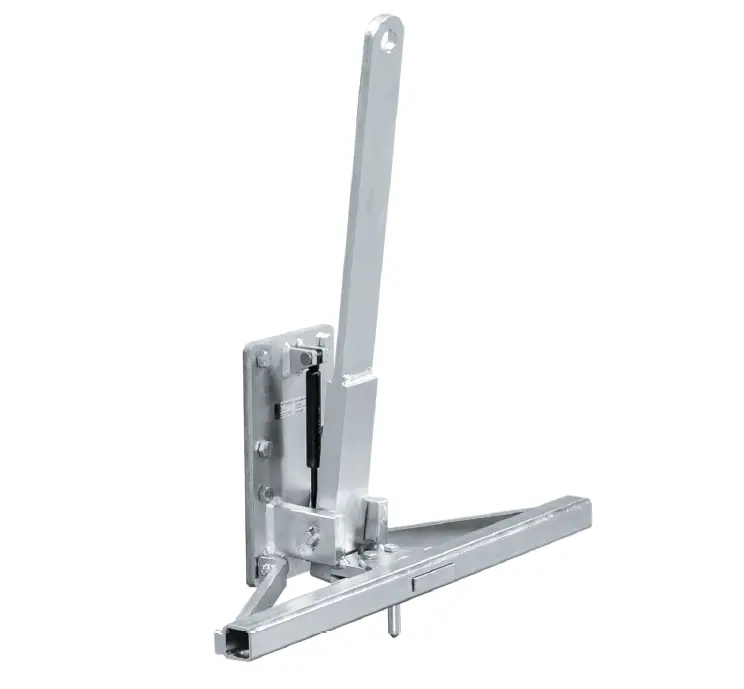

Milkrun Drawbar Assembly
The Milk Run Drawbar Assembly (code LP-D0100) is the component that turns dolly carts into a logistics train: it is mounted on the cart and lets you couple it to the tractor or to the previous cart, so several load units can be moved in a single round. It is compatible with all dolly carts in the range, can be used with most tractors and is supplied ready to mount.
The milk run is one of the pillars of lean intralogistics: a scheduled round that supplies production lines at regular intervals, collects empty containers and reduces line-side stock and unplanned forklift movements. Lean carts coupled with the drawbar make the route repeatable and the load well organised.
- Item code LP-D0100
- Compatible with all dolly carts
- Usable with most tractors
- Supplied ready to mount
- Suitable for the line-feeding carts of the Dolly & Adaptor Pallet range
The drawbar assembly pairs with the dollies in our catalogue, such as the Dolly Type I, and is the basis for building or extending a milk run system in your plant. To configure the logistics train that best fits your flows, request a quote from LeanProducts.
Features
Steel drawbar compatible with all dollies. It comes with a pre-drilled plate for hitching to your tugger, a drawbar with hole, a cross bar with 2 side hitch holes, one on the right and one on the left, to build 2 rows of 600x400 dollies as well, and a centre pin for coupling pallet dollies and Taxi dollies.
Load capacity: 6 t / Pin: 2 t
