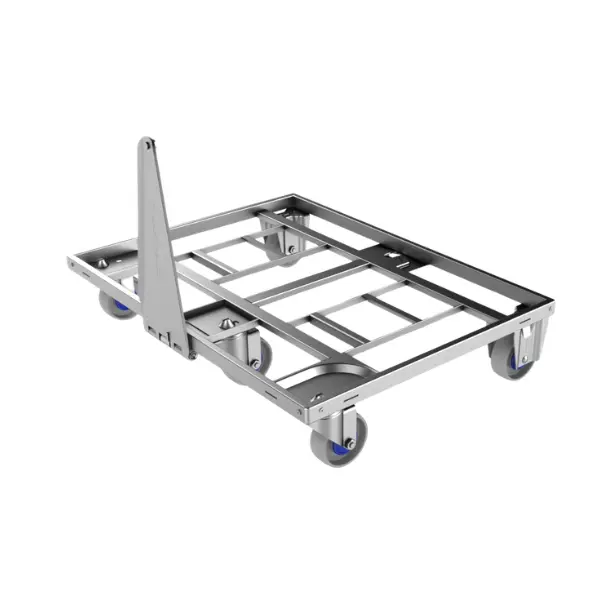

Dolly 800x600

On the 1200 × 800 mm format: 4 dollies 600 × 400, 2 dollies 800 × 600, 2 dollies 600 × 400 plus 1 dolly 800 × 600, or 1 dolly 1200 × 800. The maximum load is 1000 kg per Adaptor Pallet. For the ISO 1200 × 1000 mm format we confirm the combination based on your dollies.

One stack of 800x600 containers, two 600x400 stacks side by side or four 300x400 stacks, or one 800x600 pallet, cages and folding containers. The capacity is 500 kg. For boxes and parts that do not rest on the frame there is the plywood deck.

Without drawbar if the dolly is only moved by hand or travels on an Adaptor Pallet; with drawbar if you hitch it into the tugger train. With the drawbar the train reaches 1600 kg, with 5–6 dollies and a recommended maximum speed of 6 km/h.

With the Milkrun Drawbar, which fits on the tow vehicle and tows one or two rows of 600x400 dollies or one row of Dolly 800x600. On request there is also the coupling for having one or two rows of Dolly VII and 800x600 towed by a Dolly Pallet. We help you choose based on the tow vehicle you have.

Yes, with ESD polyamide castors (LP-KD805-1), for areas where electronic components are handled. The other versions have polyamide or elastic rubber castors.

Polyamide (PA) is the standard castor: hard and smooth-rolling, it suits smooth industrial floors. Elastic rubber is softer and quieter and is kind to delicate floors. ESD polyamide dissipates electrostatic charges and is needed in areas where electronic components are handled. On request there are also ESD rubber, polyurethane, ESD polyurethane and Clean wheel. All have ball bearings.

It closes the dolly frame with a continuous 598 × 798 mm surface: you can place boxes, cartons and small parts on it. It takes up to 500 kg, like the dolly.

The 600x400 Type I, II and VII B dollies stack up to 15 units in about 1950 mm. The Dolly 800x600 and 1200x800 also reach 15 units in 1955 mm, 2300 mm in the versions with drawbar. The Type VII C, with its raised deck, stacks up to 3 units. This way returning empties takes up little space on the train and in the warehouse.

With the Lean Adaptor Pallet, the steel pallet for dollies: it carries 4 600x400 dollies, or 2 800x600 dollies, 1 800x600 and 2 600x400 dollies, or one 1200x800 dolly, up to 1000 kg. You move it with the forklift from the long and the short side and load it onto the truck; on arrival the dollies come off the pallet without lifting them.

Yes. We start from what you move (containers, sizes and weights), the routes and the floors: we propose the type of dolly, castors, drawbar and accessories and how to build the train with the tow vehicles you have. With LeanProducts you have a single point of contact for spare parts and support too.
