Mini Dolly Pallet

Mini Dolly Pallet

https://leanproducts.eu/web/image/product.template/2011/image_1920?unique=58e6883

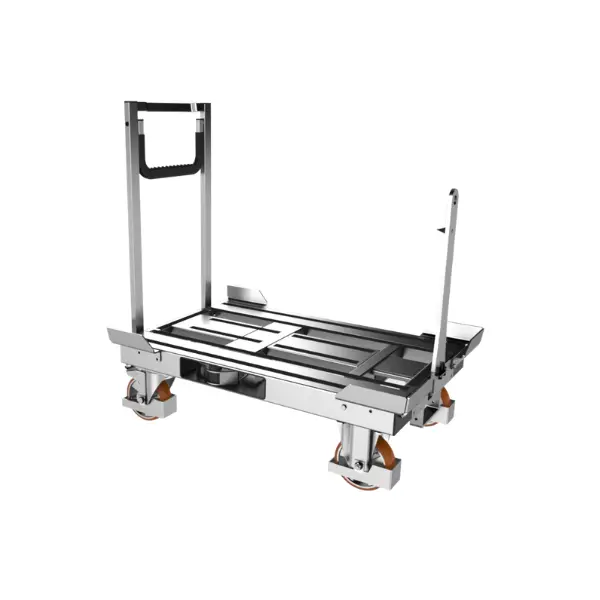

Mini Dolly Pallet is the compact version of the Dolly Pallet, for 800×600 pallets, cages and foldable boxes: it takes less space than a euro pallet trolley and hitches into the tugger train with the others.

Platform 923×600 mm, capacity 1000 kg, up to 4000 kg in the train, Ø 160 mm polyurethane castors with brake, folding handle and retractable drawbar, 55 kg. Stackable when empty: 6 in 1680 mm.

Read more ↓
Code: LP-KM003
from
not with
options
Prices per piece + VAT
Prices per pack of %s + VAT
Prices per pack of %s pcs + VAT
colors
only
of
available
  • Dimensions mm
  • Version
  • Wheels
  • Extra
  • Load capacity (kg)

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Dimensions mm 923x600
Version Anti-slip tape
Wheels 2 swivel with brake - 2 fixed, polyurethane Ø 160
Extra Retractable 3-position drawbar and foldable handle
Load capacity (kg) 1000

The Dolly Pallet has a low deck, 1200x800 or 1200x1000, and is stackable when empty. The Raised Dolly Pallet brings the load to about 600 mm off the ground, with retaining corners: the operator picks with less bending. The Mini Dolly Pallet, 923x600 mm, is for 800x600 pallets and small cages. The Dolly Pallet Extension is 800 mm wide and 1200 to 1800 mm long, for long loads. All carry 1000 kg.

Up to 6 trolleys, with a total load of 4000 kg and a recommended maximum speed of 6 km/h. The retractable drawbar has 3 positions and a quick-coupling hook. We check train length and space on curves with you on the actual route.

800x600 pallets, cages and folding crates, and containers, up to 1000 kg. The deck measures 923 × 600 mm.

On the tow vehicle you fit the Milkrun Drawbar, which tows a row of Dolly Pallets or Dolly Taxis. In the same train you can put different trolleys: Dolly Pallet, Raised, Mini, Dolly Taxi and Taxi Liner. The round runs at fixed times, takes full loads to the line and brings back the empties.

The Dolly 800x600 weighs 12 kg, has 100 mm castors and carries 500 kg: it is light and stacks up to 15 units. The Mini Dolly Pallet weighs 55 kg, has 160 mm polyurethane castors with brake, a handle and retractable drawbar, and carries 1000 kg: it is the choice for heavy loads and trains with Dolly Pallets.

160 mm polyurethane castors with aluminium centre and precision ball bearings, with foot guard: 2 fixed and 2 swivel with brake. With the 6-castor upgrade (Dolly Pallet, Raised and Dolly Taxi) the trolley turns 360° on the spot.

They are the three deck versions. Anti-slip tape is the basic version for pallets and loads that rest on the frame. Anti-slip plywood and aluminium chequer plate give a continuous surface, also useful for boxes and loose loads.

Yes: with the handle folded, the Dolly Pallet and the Mini Dolly Pallet stack up to 6 units in 1680 mm, thanks to the stacking holes. The Raised Dolly Pallet, with its high deck and fixed handle, is not designed to be stacked.

With ratchet straps, fitted on the left or right side, and with retaining corners and plates. The Raised Dolly Pallet already has retaining corners.

Yes, with the dedicated coupling accessory, on request: a pallet dolly tows one or two rows of Dolly VII or Dolly 800x600 with drawbar. This way you carry pallets and stacks of KLT containers in the same train.

Yes. We analyse flows, loads, routes and tow vehicles with you, choose the right trolleys and accessories and help you get the round going. With LeanProducts you have a single point of contact for spare parts and support too.
