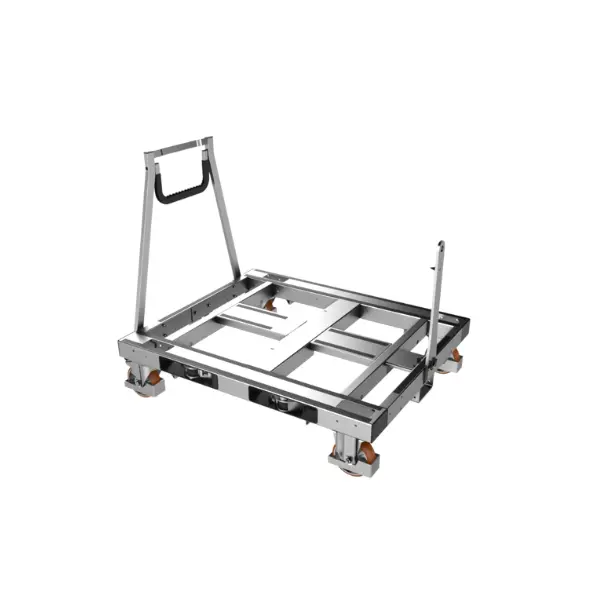

Dolly Pallet
Dolly Pallet is the pallet cart for lean logistics: it carries euro and ISO pallets, KLT containers, cages and foldable boxes. Push it by hand with the folding handle or hitch it into the tugger train with the retractable drawbar.
Sizes 1200×800 and 1200×1000 mm, capacity 1000 kg, up to 4000 kg in the train (6 carts), Ø 160 mm polyurethane wheels with brake, deck in anti-slip tape, plywood or aluminium. Stackable when empty.
Lean Logistic · Pallet dollies and shelf trolleys
Dolly Pallet: 1000 kg 1200x800 and 1200x1000 pallet trolley for the milk run
The pallet trolley for lean logistics: it carries Euro pallets and ISO pallets, KLT containers, cages and folding crates up to 1000 kg. 160 mm polyurethane castors with brake, folding handle and retractable drawbar: push it by hand or hitch it into the tugger train, up to 4000 kg per train.
Why choose it
Pallets and containers, a single trolley
Euro pallets, ISO pallets, KLT stacks, cages and folding crates: the load stays on the trolley from the warehouse to the line.
Retractable drawbar
The 3-position drawbar with quick-coupling hook comes out for the train and retracts when you push by hand with the handle.
160 mm castors and brake
Polyurethane castors with aluminium centre and ball bearings, foot guard and brake on the swivel castors.
Stackable when empty
Folded handle and stacking holes: 6 empty trolleys in 1680 mm.
Choose it if…
- You move 1200x800 or 1200x1000 pallets, or mixed loads up to 1000 kg.
- You want to switch from forklift to milk run: trolleys in a line behind a tow vehicle, up to 4000 kg.
- You need a trolley that also works pushed by hand, with a brake.
- You want to stack empty trolleys to save space.
Choose another solution if…
- You want the pallet at a more comfortable gripping height, at about 600 mm: Raised Dolly Pallet →
- You carry 800x600 pallets or small cages: Mini Dolly Pallet →
- You need several levels for containers and cartons: Dolly Taxi →
- You want to load and unload trolleys from both sides in a few seconds, without detaching them from the train: LiftLiner 2 load units →
Not sure which one to choose? Use the selection guide →
Where it works
The Dolly Pallet is used in both internal and external logistics:
- Line replenishment: pallets and containers in a line behind the tow vehicle, with a milk run at fixed times
- Warehouse → production: take the forklift out of the departments and bring pallets where they are needed
- Finished product: from end of line to dispatch, without transferring
- Truck loading: with the fork guides you load it with the forklift safely
Fewer forklifts in the departments means lower risk and more space for production: it is one of the first steps towards a forklift-free department.
How it is built
3-position retractable drawbar
On the short side, with a quick-coupling hook: open it for the train, close it when pushing by hand.
Choice of deck
Anti-slip tape, anti-slip plywood or aluminium chequer plate.
Load restraint straps
Ratchet straps, left or right, hold the load in place on curves and when braking.
View product →Standard: folding handle, 2 fixed castors and 2 swivel castors with brake, retractable drawbar with hook.
Dolly Pallet, Raised, Mini and Extension: the differences
Dolly Pallet
Low deck, 1200x800 or 1200x1000 mm, 1000 kg. Folding handle: stackable when empty, 6 trolleys in 1680 mm.
Raised Dolly Pallet
Deck at about 600 mm with retaining corners: the load reaches the line at a more comfortable gripping height. 1000 kg.
View product →
Mini Dolly Pallet
Compact 923x600 mm version for 800x600 pallets, cages and folding crates. 1000 kg.
View product →
All have 160 mm polyurethane castors, 2 fixed and 2 swivel with brake, a retractable drawbar, and hitch into the same tugger train, also with Dolly Taxi and Taxi Liner.
In the tugger train
The same trolley works pushed by hand or hitched behind the tow vehicle:
Retractable drawbar
The drawbar sits on the short side, has 3 positions and a quick-coupling hook: open it for the train, close it again when pushing by hand.
Up to 4000 kg per train
Up to 6 trolleys in a line, at the recommended maximum speed of 6 km/h.
Milkrun Drawbar on the tow vehicle
It fits on the tow vehicle and tows a row of Dolly Pallets or Dolly Taxis, or rows of container dollies.
View product →Mixed trains
In the same train you can put Dolly Pallets, Dolly Taxis and Taxi Liners. On request there is also the coupling for towing one or two rows of Dolly VII and 800x600.
View product →We check train length, curves and manoeuvring space with you on the actual route.
Accessories to adapt it to your flow
Complete it with the accessories your load needs:
Retaining corners and plates
They hold pallets, containers and cages in position during transport.
View product →On request there is also the coupling for towing one or two rows of container dollies.
The LeanProducts service
From the flow map to delivery, with a single point of contact:
Flow and layout analysis
We look at routes, containers, frequencies and drop-off points with you and tell you which trolleys you need and how many.
Configuration
Together we choose sizes, castors, drawbar and accessories based on loads, floors and the tow vehicles you already have.
Delivery and commissioning
We deliver and help you get the new round going: loading, hitching, routes and return of empties.
Spare parts and support
Spare castors, drawbars and accessories: we confirm the right code even for the dollies you already have.
LeanProducts is the K.Hartwall distributor in Italy.
Technical data
| Specification | Value |
|---|---|
| Deck formats | 1200 × 800 mm; 1200 × 1000 mm |
| Overall dimensions (1200 × 800) | 1200 × 800 × 275 mm (1017 mm with handle raised) |
| Capacity | 1000 kg |
| In the tugger train | Up to 4000 kg, 6 trolleys |
| Recommended maximum speed | 6 km/h |
| Castors | Ø 160 mm polyurethane with aluminium centre, ball bearings and foot guard: 2 fixed and 2 swivel with brake |
| Deck | Anti-slip tape, anti-slip plywood or aluminium chequer plate |
| Drawbar | Retractable, 3 positions, with quick-coupling hook |
| Handle | Folding |
| Structure | Steel with blue zinc plating EN-ISO 2081 |
| Weight | 66 kg (1200 × 800); 72 kg (1200 × 1000) |
| Stackability | 6 empty trolleys in 1680 mm |
| Codes | 1200 × 800: LP-KP015 (tape), LP-KP016 (plywood), LP-KP021 (aluminium); 1200 × 1000: LP-KP017, LP-KP018, LP-KP022 |
On request: ESD version and RFID-ready. We check train length and turning radii with you on the route.
Images and applications
Accessories and related products
6-wheel upgrade (2 swivel)360° rotation on the spot
Strapping SystemLoad restraint strap, left or right
Corner containment kit (1 pc)Retaining corner
Retaining Plate Kit (2 pcs)Retaining plates
Forklift fork guide setForklift fork guides
Milkrun Drawbar AssemblyDrawbar for the milk run tow vehicle
Raised Dolly PalletDeck at about 600 mm
Mini Dolly Pallet923x600 format
Dolly Pallet Extension 1200-1800Length from 1200 to 1800 mm
Dolly TaxiShelf trolley for the same train
Taxi Liner 3 Bay for Dolly 600x400Trailer for 600x400 dolliesWant to find out which pallet trolley is right for you?
Tell us about loads, routes and tow vehicles: we will propose the right trolley and how to build the milk run.
