Systembox

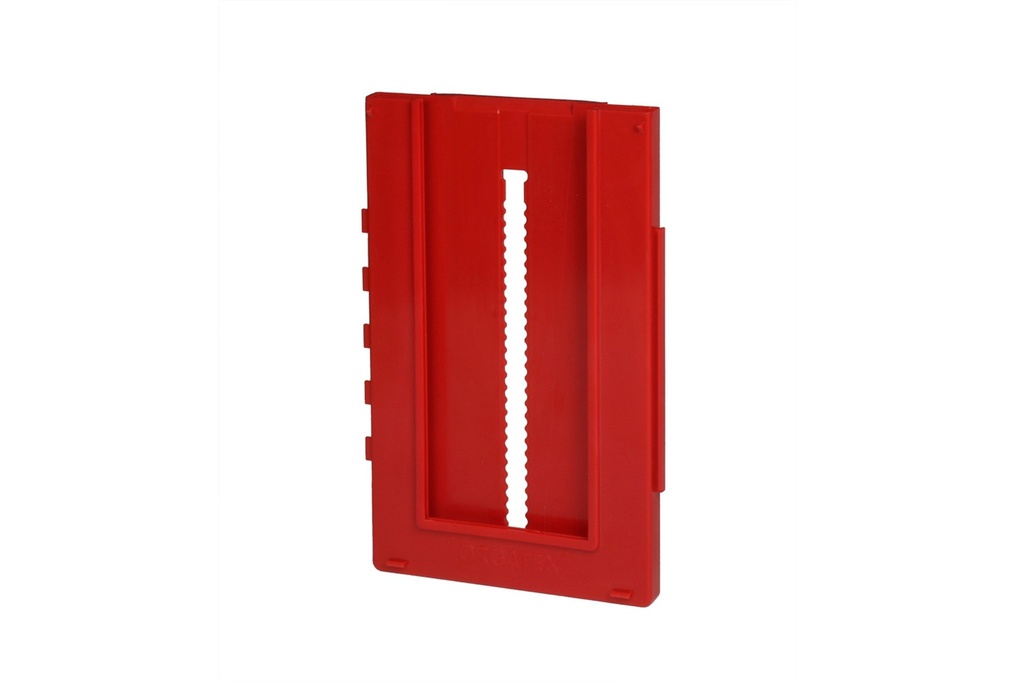

The Systembox is a colored plastic kanban holder with outer dimensions of 122×192×10 mm (width × height × depth), featuring integrated interlocks for vertical and lateral chaining of multiple units. Available in 8 colors, it enables the creation of traffic-light visual systems for production priority control. It is compatible with dedicated upper and lower supports for wall or rack-mounted installation.
ORGATEX · Modular kanban card holder
Systembox: modular kanban card holder for kanban boards
ABS box that keeps kanban cards in view and sheltered, on the wall or on a board. The patented interlock system connects it staggered below another Systembox or side by side in a block: the kanban board grows one position at a time, in rows and columns. With boxes in different colours you build the kanban traffic light for production priorities.
Want to build your Systembox columns? Open the configurator →
Why choose it
Grows with the process
The interlocks join the boxes staggered or in a block: add single positions in rows and columns without rebuilding the board.
Kanban traffic light
Boxes in different colours signal priorities. Alternatively, use boxes of a single colour and coloured inserts in the plastic pieces: to change the traffic light you only change the inserts.
Adapts to the card
The SYSB-FH adjustable base fits into the rear groove and reduces the usable depth in 5 mm steps, even for small cards.
A complete system
Stainless steel supports, plastic pieces, inserts and mailboxes complete the board; it combines with the Systembox A4 for documents.
Choose it if…
- you manage kanban cards on a board or on the wall, one card per position
- you want a kanban traffic light for production priorities
- you plan to extend the board over time, even by a single position
- you are building a heijunka or Lot Size Kanban board
Choose another solution if…
- if you need to display A4 documents or bills of materials, even bulky ones Systembox A4 →
- if you work in an EPA ESD Systembox and accessories →
- if you want to start with a complete board for 200 to 400 cards Kanban Starter Set with Systembox →
- if you prefer a pocket board for cards from DIN A8 to DIN A4 Cardplan® Board →
Not sure which one to choose? Use the Visual Management guide →
How a column is built
Stainless steel supports
The top one is fixed to the wall or the whiteboard and holds 1 or 4 columns; the bottom one secures the second-to-last Systembox.
View product →Systembox
One per card, hooked on staggered one below the other; the colour of the box or of the insert creates the traffic light.
Plastic pieces
The top piece on every Systembox except the last, the front piece on the last: they show the kanban code and keep it in place.
View product →Inserts
Pre-cut A4 sheets to print: 33 × 75 mm for the top piece, 75 × 168 mm for the front piece.
View product →Technical data
| Color | Red, White, Blue, Yellow, Green, Black, Light Grey, Transparent |
| Pack | 50 pcs |
Choose the colour. Outer dimensions 122 × 192 × 10 mm, inner space 118 × 190 × 6 mm (width × height × depth; ORGATEX 2026 catalogue). Supports, plastic pieces and inserts are ordered separately.
Images and applications
Adjustable Base for SystemboxAdjustable base for smaller cards
Transparent Plastic Kanban MailboxMailbox for returned cards
Kanban-Cover MegaKanban card holder that rests on the material, fits the Systembox
Cardplan® – WhiteboardWhiteboard to fix the supports onWant to set up a kanban board?
Tell us how many cards or documents you manage and where the board will go: we will recommend the right Systembox, supports and plastic pieces. For large quantities or recurring supplies we prepare a dedicated quote.
