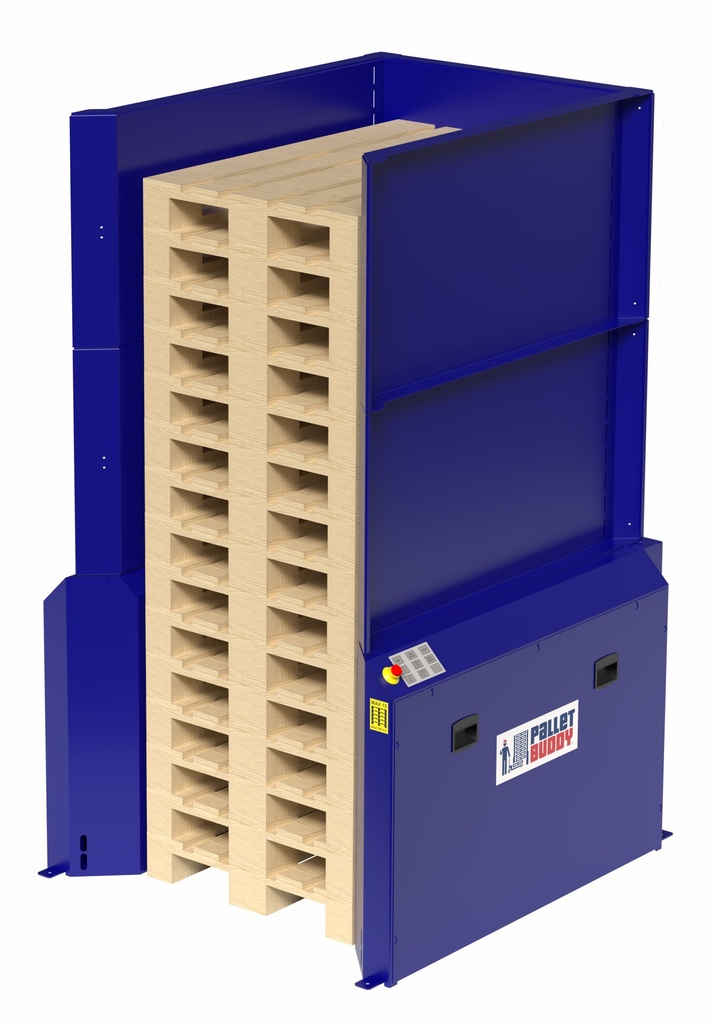

PB 25S Pallet Buddy Pallet Magazine

Pallet Buddy PB 25S is the plug & play magazine for 1200 x 1000 x 150 mm pallets: it loads and unloads up to 25 pallets (capacity 700 kg) one at a time at floor level, without a forklift.

Code: 88074

Number of pallets
Pallet size mm
Dimension mm
- 1520x1340x3750
Power Supply

This combination does not exist.

Documents

User manual EdmoLift Pallet Buddy (EN)

Download PDF data sheet

Edmolift · Pallet magazine

Pallet Buddy PB 25S: automatic magazine for 25 pallets 1200 × 1000

You put the pallet in and it lifts it. The Pallet Buddy loads and unloads pallets one at a time at floor level and also handles the whole stack without a forklift. It is fully electric: a 230 V socket is all it needs and it is controlled from the touch panel.

Plug & playPallets at floor levelTouch panelSafety system includedPLC Siemens

25pallets 1200 × 1000 × 150 mm

700 kgmaximum capacity

3750 mmmachine height

230 Vsingle-phase supply

Why choose it

Plug & play

It runs on electricity only: place it where there is a 230 V socket and use it straight away.

Everything at floor level

Pallets put in and taken out at floor level with a manual pallet truck or forklift.

The stack without a forklift

It also loads and unloads the whole stack of pallets, without a forklift.

Touch control

Touch panel with manual or automatic operation; Siemens S7-1200 PLC and Linak actuators.

Choose it if…

you handle stacks of 1200 × 1000 pallets near lines, docks or workstations
you want to stop stacking and unstacking pallets by hand
you need up to 25 pallets in a stack

Choose another solution if…

if 15 pallets and a height of 2350 mm are enough PB 15S Pallet Buddy Pallet Magazine →
if you use 1200 × 800 pallets PB 25 Pallet Buddy Pallet Magazine →

How it works

Safe and ergonomic pallet handling, with no manual lifting:

Insert: the pallet goes in at floor level with a manual pallet truck or forklift
Lift: the Pallet Buddy raises the stack and frees the space for the next pallet
Take out: pallets come out one at a time, always at floor level
Stack ready: with the maximum load indicator the stack is set down on the floor, ready for transport
Safety: safety system included, gate with switch as an accessory

Technical data

Capacity Kg	700
Number of pallets	25
Pallet size mm	1200x1000x150
Dimension mm	1520x1340x3750
Power Supply	Monophase 230V

Safety system for 25 pallets included; power supply 220–240 V AC, 50 Hz.

Accessories and related products

Safety Gate for Pallet BuddyThe Buddy only works with the gate closed

Impact Protection for Pallet BuddyProtects against forklift impacts

Stop Blocks for Pallet BuddyHold the newly loaded pallet

Maximum Load Indicator for Pallet BuddySets down the stack at the set number of pallets

Signal Tower for Pallet BuddyLight signal at maximum load

Isolator Switch for Pallet BuddyDisconnects the Buddy from the mains

Any other questions?Read the 4 frequently asked questions →

Need help choosing?

Tell us the pallet format and number and where the Pallet Buddy will go: we will recommend the model and accessories and prepare the quote.

Request a quote Call +39 0434 572757

Specifications

Capacity Kg	700
Number of pallets	25
Pallet size mm	1200x1000x150
Dimension mm	1520x1340x3750
Power Supply	Monophase 230V

Only a 230 V AC socket: operation is fully electric and it can be placed anywhere in the department.

At floor level, one at a time, with a manual pallet truck or forklift. The whole stack can also be loaded and unloaded without a forklift.

Yes, with the cold environment option: a dedicated actuator allows operation down to −25 °C. It must be requested at quotation stage.

Yes, with the maximum load indicator: for example at 12 pallets the stack is set down on the floor, ready for transport. It can also be done manually from the control panel; the signal tower adds the light signal.
