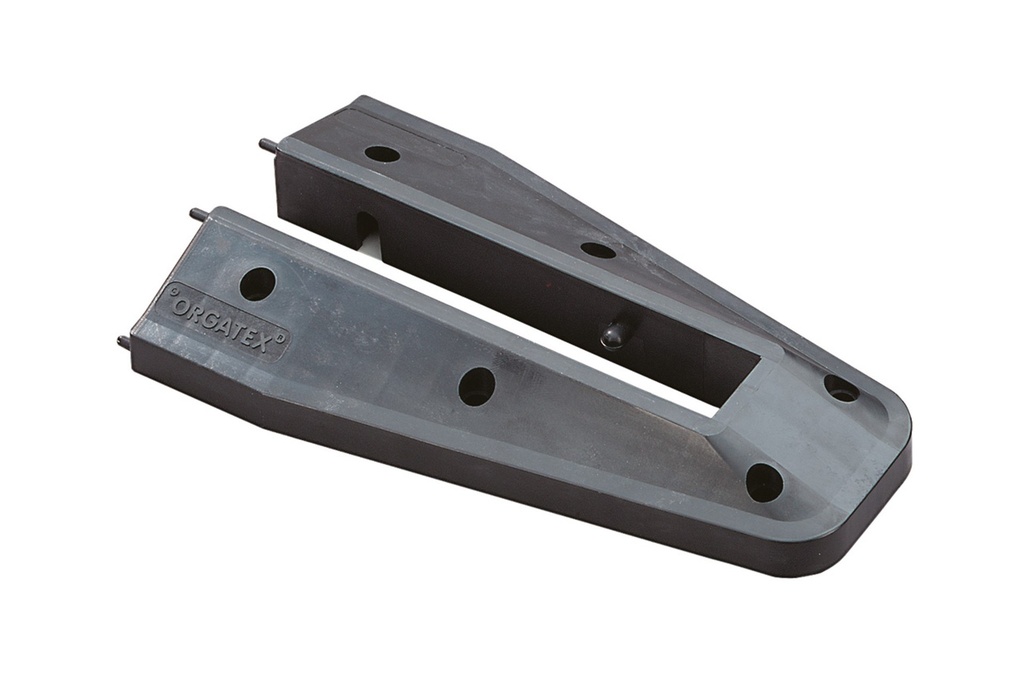

Dual Terminal for FIFO rails
The FIFO-EK-1 double end piece closes two side-by-side FIFO Station floor rails at the lane entry in a single piece, with a wedge shape for easy trolley entry. It has a seat for Bosch Rexroth 30 × 30 mm aluminium profiles, for signs, boards and guards.
Polyamide 6 with 50% glass fibre, signal black RAL 9004. Acrylic adhesive over the full surface and 6 holes for screw fixing. Pack of 1.
Documents
Lean Logistic · FIFO lane accessories
Double end piece for FIFO Station rails, with seat for 30 × 30 profiles
Closes two side-by-side rails at the lane entry in a single piece. It has a wedge shape to let the trolley in, adhesive over the whole surface, holes for screw fixing, and takes Bosch Rexroth 30 × 30 mm aluminium profiles for signs and guarding.
Designing a FIFO station? Configure it starting from your cart →
Why choose it
Two rails, one end piece
Where two lanes are side by side, it closes both rails with a single element.
Structures above the lane
It takes Bosch Rexroth 30 × 30 mm profiles for boards, guarding and signage.
Secure fixing
Acrylic adhesive over the whole surface and holes for screws and wall plugs.
Data and compatibility
| Specification | Value |
|---|---|
| Code | FIFO-EK-1 |
| Compatible with | FIFO Station rail FIFO-BP-1200/1800/2400/3000 |
| Pack | 1 piece |
| Material | PA6 with 50% glass fibre (GF50), signal black RAL 9004, silicone-free |
| Fixing | Acrylic adhesive + 6 screw holes |
| Profiles can be integrated | Bosch Rexroth aluminium 30 × 30 mm |
| Temperature | 70 °C for short periods, 60 °C continuous |
| Screws and wall plugs | FIFO-SCHR-K set |
For a single rail use the FIFO-EK-2L/2R left and right end pieces.
Modular rail FIFO StationCompatible rail
Terminal for FIFO railsSingle end pieces
Fixing Screw 6x40 mmScrews and wall plugsDo you need a component for your FIFO lane?
Tell us which rail you use and what the station looks like: we will confirm the right codes and quantities.
