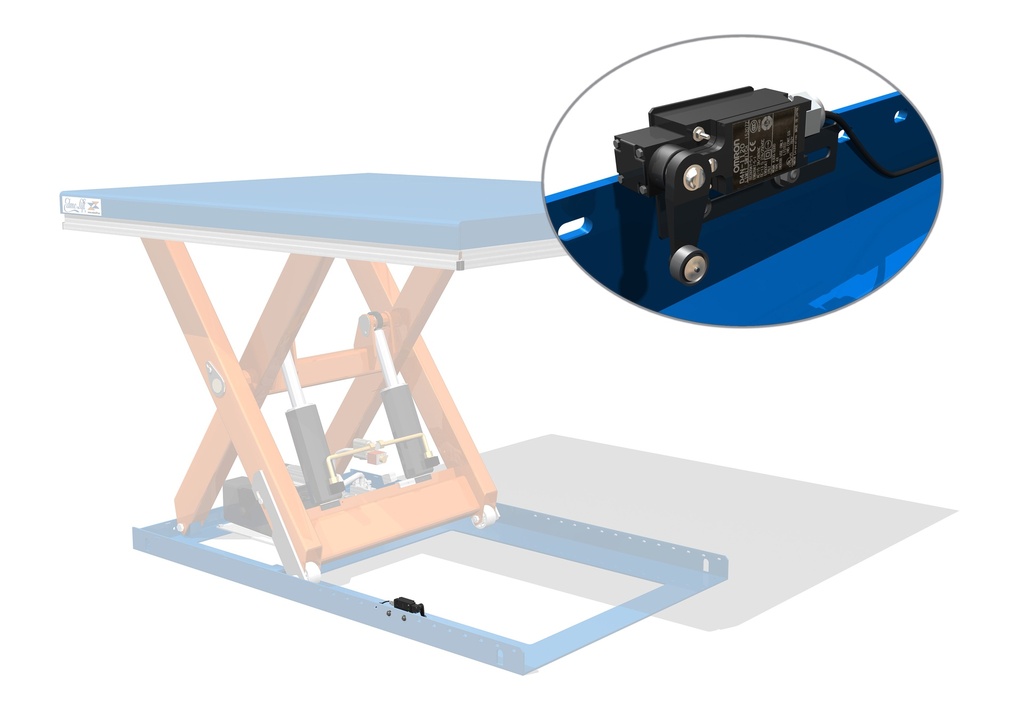

Limit Switch for Lifting Platforms
The limit switch is adjustable and stops the lift at a preset height. Choose the upper or lower limit and any intermediate function; specify the intended use when ordering. Recommended for use in a pit.
Edmolift · Lift table accessories
Limit switch for lift tables
Adjustable limit switch that stops the lift table at a preset height: upper or lower limit, with an intermediate function if needed. Recommended for pit-mounted lift tables.
Why choose it
Always the same height
The lift table stops by itself at the set height, cycle after cycle.
Fully adjustable
It is set to the working height of the workstation.
Plug & play UC-60
It connects to the UC-60 control box with an M12 connector, without an electrician.
Technical data
| Version | Single, double, triple scissor up to 3000 kg (horizontal double up to 6000 kg), Single, double, triple scissor over 3000 kg (horizontal double over 6000 kg), Series C: CR, CL, CB, Low profile TUB, CUB, Pallet lifters TSL, TSE, Low profile TCB, TCL |
You choose the version for the lift table family; in the order, state whether it is needed as an upper, lower or intermediate limit.
TL 2000 Single Scissor Lift TableSingle scissor lift tables
TSL 750 Pallet LifterPallet lifters
TCL 1000 Low Profile Lift TableLow-profile lift tables
CL 1001 Single Scissor Lift TableSeries CNeed help choosing?
Tell us the lift table model and serial number: we check the right accessory with Edmolift and prepare the quote.
