Mini Dolly Pallet
Mini Dolly Pallet is the compact version of the Dolly Pallet, for 800×600 pallets, cages and foldable boxes: it takes less space than a euro pallet cart and hitches into the tugger train with the others.
Deck 923×600 mm, capacity 1000 kg, up to 4000 kg in the train, Ø 160 mm polyurethane wheels with brake, folding handle and retractable drawbar, 55 kg. Stackable when empty: 6 in 1680 mm.
Lean Logistic · Pallet dollies and shelf trolleys

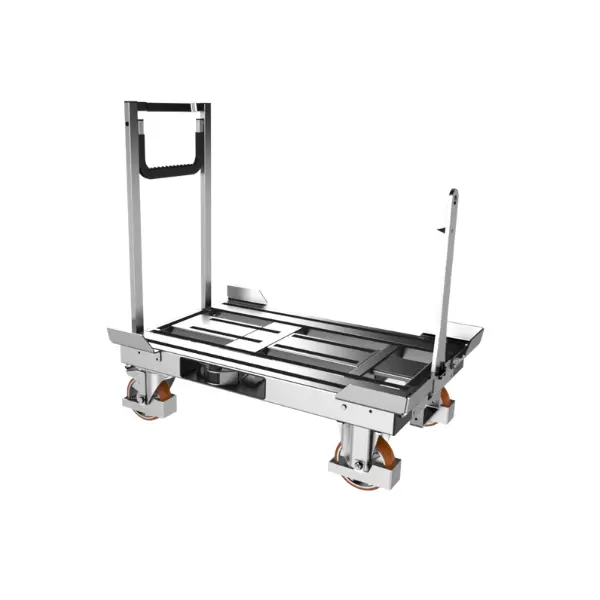

Mini Dolly Pallet: 923x600 pallet trolley for 800x600 pallets, 1000 kg
The compact version of the Dolly Pallet, for 800x600 pallets, cages and folding crates. It carries 1000 kg on 160 mm polyurethane castors with brake, with folding handle and retractable drawbar: it takes up less space than a Euro pallet trolley and hitches into the train with the others.
Why choose it
Compact
The right format for 800x600 half pallets, cages and folding crates: less space taken up in aisles and at the line side.
Same base as the Dolly Pallet
160 mm castors with brake, folding handle and retractable quick-coupling drawbar.
Choice of deck
Anti-slip tape, anti-slip plywood or aluminium chequer plate.
Stackable when empty
6 empty trolleys in 1680 mm: you recover space at the end of the round.
Choose it if…
- You carry 800x600 pallets, cages or folding crates up to 1000 kg.
- There is too little space in the aisle or at the line side for a Euro pallet trolley.
- You want to put it in the same train as the Dolly Pallets and Dolly Taxis.
Choose another solution if…
- You carry 1200x800 Euro pallets or 1200x1000 pallets: Dolly Pallet →
- You want the load at a more comfortable gripping height: Raised Dolly Pallet →
- You need shelves in the 932x600 format: Dolly Taxi →
- Your 800x600 loads are light, up to 500 kg, and you want a 12 kg dolly: Dolly 800x600 →
Not sure which one to choose? Use the selection guide →
Where it works
The Mini Dolly Pallet carries heavy, small-format loads:
- Line side: 800x600 half pallets delivered directly to the workstation
- Cages and folding crates: from the warehouse to production and back
- Mixed trains: together with Dolly Pallet, Dolly Taxi and Taxi Liner in the same milk run
With a smaller format you reduce the space taken up at the line side: lean in space too.
Dolly Pallet, Raised, Mini and Extension: the differences
Dolly Pallet
Low deck, 1200x800 or 1200x1000 mm, 1000 kg. Folding handle: stackable when empty, 6 trolleys in 1680 mm.
View product →
Raised Dolly Pallet
Deck at about 600 mm with retaining corners: the load reaches the line at a more comfortable gripping height. 1000 kg.
View product →Mini Dolly Pallet
Compact 923x600 mm version for 800x600 pallets, cages and folding crates. 1000 kg.
All have 160 mm polyurethane castors, 2 fixed and 2 swivel with brake, a retractable drawbar, and hitch into the same tugger train, also with Dolly Taxi and Taxi Liner.
In the tugger train
The same trolley works pushed by hand or hitched behind the tow vehicle:
Retractable drawbar
The drawbar sits on the short side, has 3 positions and a quick-coupling hook: open it for the train, close it again when pushing by hand.
Up to 4000 kg per train
Up to 6 trolleys in a line, at the recommended maximum speed of 6 km/h.
Milkrun Drawbar on the tow vehicle
It fits on the tow vehicle and tows a row of Dolly Pallets or Dolly Taxis, or rows of container dollies.
View product →Mixed trains
In the same train you can put Dolly Pallets, Dolly Taxis and Taxi Liners. On request there is also the coupling for towing one or two rows of Dolly VII and 800x600.
View product →We check train length, curves and manoeuvring space with you on the actual route.
The LeanProducts service
From the flow map to delivery, with a single point of contact:
Flow and layout analysis
We look at routes, containers, frequencies and drop-off points with you and tell you which trolleys you need and how many.
Configuration
Together we choose sizes, castors, drawbar and accessories based on loads, floors and the tow vehicles you already have.
Delivery and commissioning
We deliver and help you get the new round going: loading, hitching, routes and return of empties.
Spare parts and support
Spare castors, drawbars and accessories: we confirm the right code even for the dollies you already have.
LeanProducts is the K.Hartwall distributor in Italy.
Technical data
| Specification | Value |
|---|---|
| Deck format | 923 × 600 mm |
| Dimensions | 923 × 600 × 280 mm (1019 mm with handle raised) |
| Capacity | 1000 kg |
| In the tugger train | Up to 4000 kg, 6 trolleys |
| Recommended maximum speed | 6 km/h |
| Castors | Ø 160 mm polyurethane: 2 fixed and 2 swivel with brake |
| Deck | Anti-slip tape, anti-slip plywood or aluminium chequer plate |
| Drawbar | Retractable, 3 positions, quick-coupling |
| Handle | Folding |
| Structure | Steel with blue zinc plating EN-ISO 2081 |
| Weight | 55 kg |
| Stackability | 6 empty trolleys in 1680 mm |
| Codes | LP-KM003 (tape), LP-KM004 (plywood), LP-KM005 (aluminium) |
On request: ESD version and RFID-ready.
Accessories and related products
Strapping SystemLoad restraint strap, left or right
Corner containment kit (1 pc)Retaining corner
Retaining Plate Kit (2 pcs)Retaining plates
Milkrun Drawbar AssemblyDrawbar for the milk run tow vehicle
Dolly Pallet1200x800 and 1200x1000 format
Dolly TaxiShelf trolley, also 932x600Want to find out which pallet trolley is right for you?
Tell us about loads, routes and tow vehicles: we will propose the right trolley and how to build the milk run.
