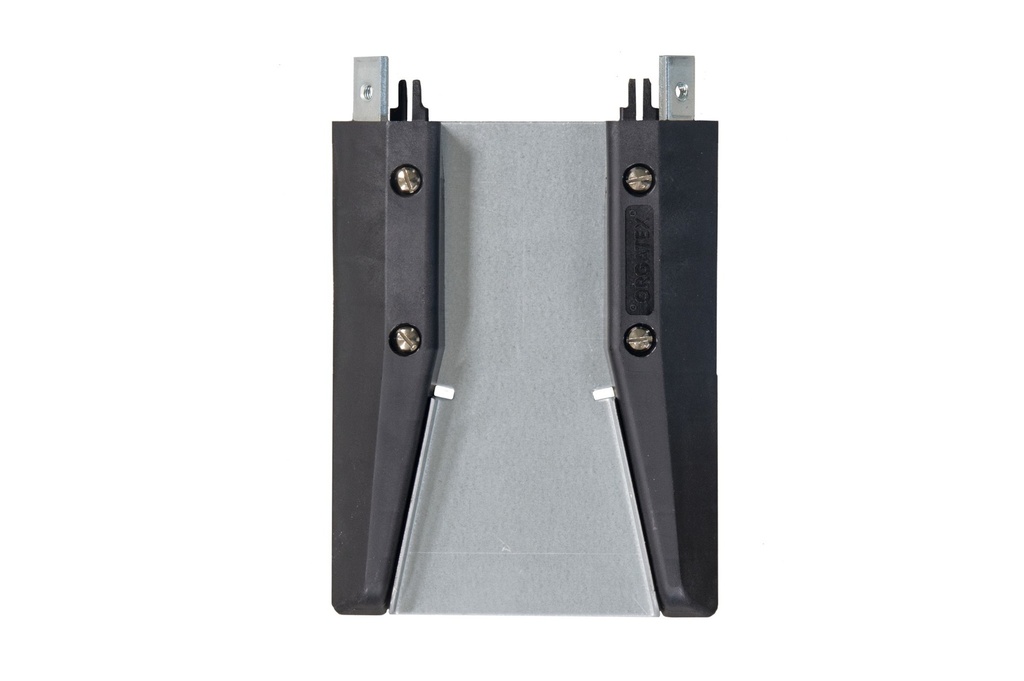

Plastic with Aluminum Base Monorail Terminal 55 mm
The MONO-BP-55-EK end piece is the standard end piece for FIFO Monorail 55 mm rails: plastic body with an aluminium base and integrated metal plates to fix it directly into the rail. The V-shaped opening with a chamfered edge lets wheels up to 55 mm wide roll in without knocks.
Dimensions 173 × 135 mm, 22.5 mm high. Pack of 10.
Lean Logistic · FIFO Monorail accessories
Monorail 55 mm plastic end piece with aluminium base, pack of 10
The standard end piece for FIFO Monorail 55 mm rails: plastic body with aluminium base and integrated metal plates for screwing it directly into the rail. The V-shaped opening with chamfered edge lets the castors in without knocks.
Designing a FIFO station? Configure it starting from your cart →
Why choose it
Smooth entry
V opening and chamfered edge lead the castors into the rail.
Screws into the rail
The integrated metal plates fix the end piece directly to the Monorail.
Stock for the station
Pack of 10: close several lanes with a single order.
Data and compatibility
| Specification | Value |
|---|---|
| Code | MONO-BP-55-EK |
| Compatible with | FIFO Monorail 55 mm rail (MONO-BP-55-1200/1800/2400) |
| Pack | 10 pieces |
| Material | Plastic with aluminium base, integrated metal plates |
| Dimensions | 173 × 135 mm, height 22.5 mm |
| Castors | Width up to 55 mm |
For high-traffic areas there is the aluminium MONO-EK-HD-55; on the loading side the wide-V MONO-BP-55-EKGS-V2.
FIFO Monorail 55 mmCompatible rail
Impact Protection for Terminal (set of 2 pcs + screws)Impact protection
Aluminum FIFO Monorail Terminal 55 mmAluminium end pieceDo you need a component for your FIFO lane?
Tell us which rail you use and what the station looks like: we will confirm the right codes and quantities.
