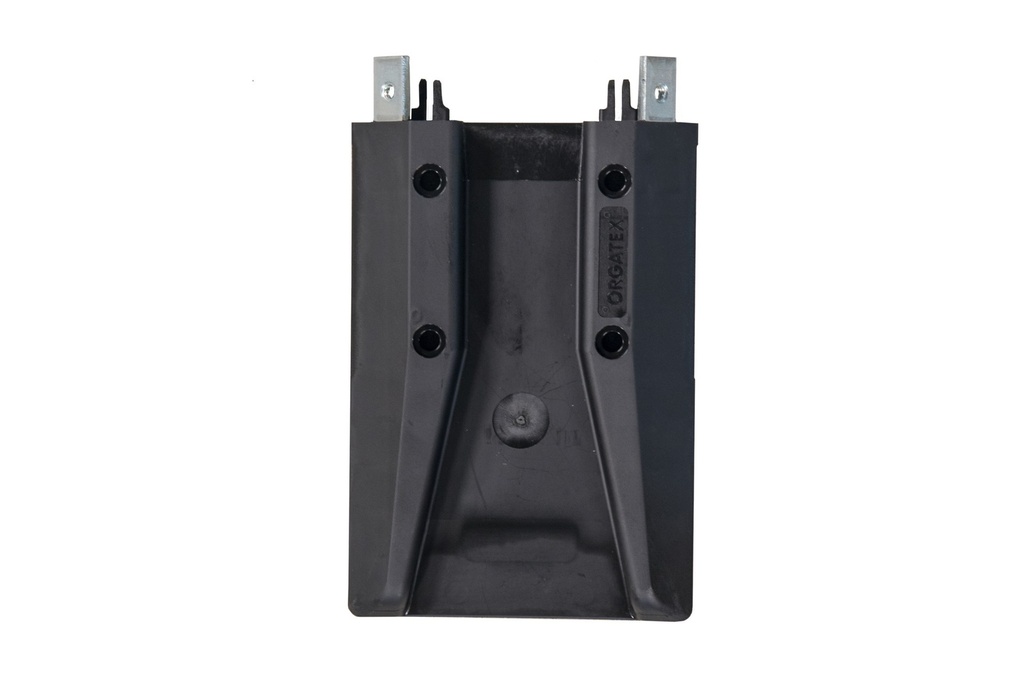

Plastic Monorail Terminal 40-mm
The MONO-EK end piece is the standard end piece for FIFO Monorail 40 mm rails: V-shaped entry with a chamfered edge so the wheels roll in without knocks. Integrated metal plates lock it into the rail slots with grub screws (3 mm Allen key); 4 holes to screw it to the floor as well.
Polyamide 6 with 50% glass fibre, signal black RAL 9004, 173 × 121 mm, 21 mm high. Takes MONO-VB connecting plates. Pack of 10.
Lean Logistic · FIFO Monorail accessories
Monorail 40 mm plastic end piece, pack of 10
The standard end piece for FIFO Monorail 40 mm rails: V-shaped entry with chamfered edge to let the castors in without knocks, integrated metal plates for screwing it directly into the rail slots and 4 holes for fixing it to the floor.
Designing a FIFO station? Configure it starting from your cart →
Why choose it
Smooth entry
The V opening and chamfered edge guide the castors into the rail.
Ready for connecting plates
It takes the MONO-VB plates to join several lanes without drilling the floor.
Tough
Polyamide 6 with 50% glass fibre, heat-stabilised, resistant to plasticisers.
Data and compatibility
| Specification | Value |
|---|---|
| Code | MONO-EK |
| Compatible with | FIFO Monorail 40 mm rail (MONO-BP-1200/1800/2400) |
| Pack | 10 pieces |
| Material | Polyamide 6 with 50% glass fibre, signal black RAL 9004 |
| Tensile strength | 170 MPa (ISO 527); elongation at break 3% |
| Dimensions | 173 × 121 mm, height 21 mm |
| Mounting | Guides in the rail slots, locked with grub screws (3 mm Allen key); 4 holes for floor screws |
| Castors | All types (rubber, polyamide…) |
With very high loads also screw it to the floor, with button-head or cheese-head screws.
FIFO Monorail 40 mmCompatible rail
FIFO Monorail 40 mm - Connection platesConnecting plates
Impact Protection for Terminal (set of 2 pcs + screws)Impact protectionDo you need a component for your FIFO lane?
Tell us which rail you use and what the station looks like: we will confirm the right codes and quantities.
