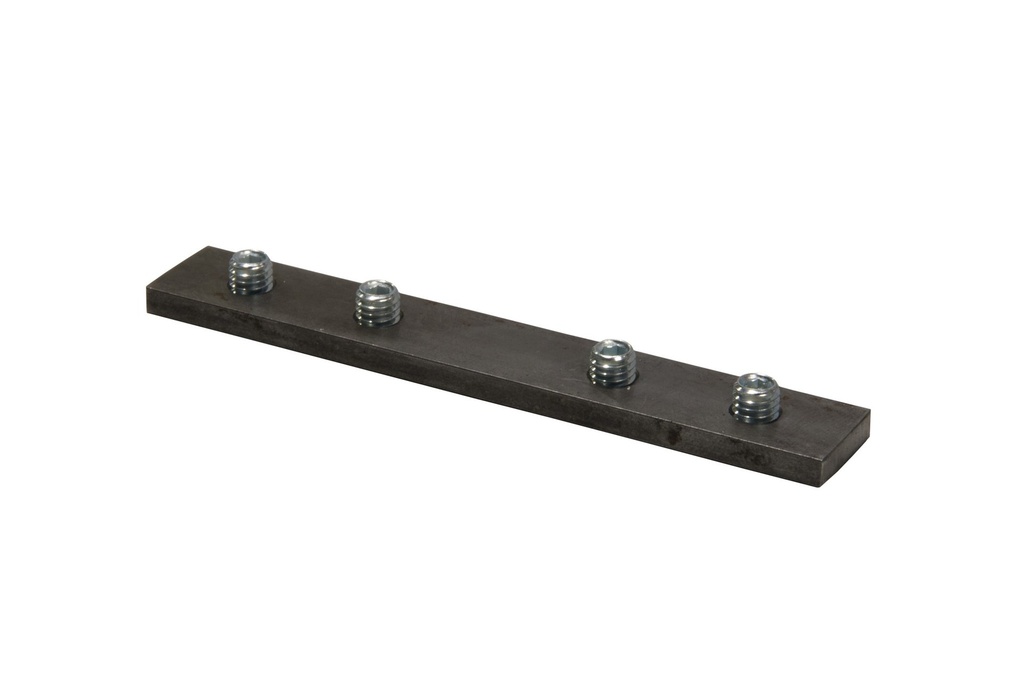

Rail Jointing Element
The MONO-SV-100 connector joins two Monorail 40 or 55 mm rails in line in the 8 mm slot: you extend the lanes and build long FIFO stations with the rails aligned.
S235JR+C steel plate, 100 × 15 mm, with 4 threaded holes and M6 × 8 mm grub screws included. Pack of 10.
Lean Logistic · FIFO Monorail accessories
Steel joint for Monorail 40/55 mm rails, pack of 10
Securely connects two in-line Monorail rails, in the 8 mm slot system: to extend lanes and build long FIFO stations. Robust steel plate with 4 threaded holes and M6 × 8 mm grub screws included.
Designing a FIFO station? Configure it starting from your cart →
Why choose it
Longer lanes
Join several rails in line and extend the lane as far as you need.
Precise alignment
The steel plate fits into the 8 mm slot and keeps the rails in line.
Easy assembly
Four M6 × 8 mm grub screws, already included, in the threaded holes.
Data and compatibility
| Specification | Value |
|---|---|
| Code | MONO-SV-100 |
| Compatible with | FIFO Monorail 40 mm and 55 mm rails |
| Pack | 10 pieces |
| Material | S235JR+C steel, bare metal |
| Dimensions | 100 × 15 mm |
| Fixing | 4 threaded holes with M6 × 8 mm grub screws included |
To anchor long rails to the floor use the MONO-HB side fixing plates.
FIFO Monorail 40 mm40 mm rail
FIFO Monorail 55 mm55 mm rail
Side Mounting PlateFloor fixingDo you need a component for your FIFO lane?
Tell us which rail you use and what the station looks like: we will confirm the right codes and quantities.
