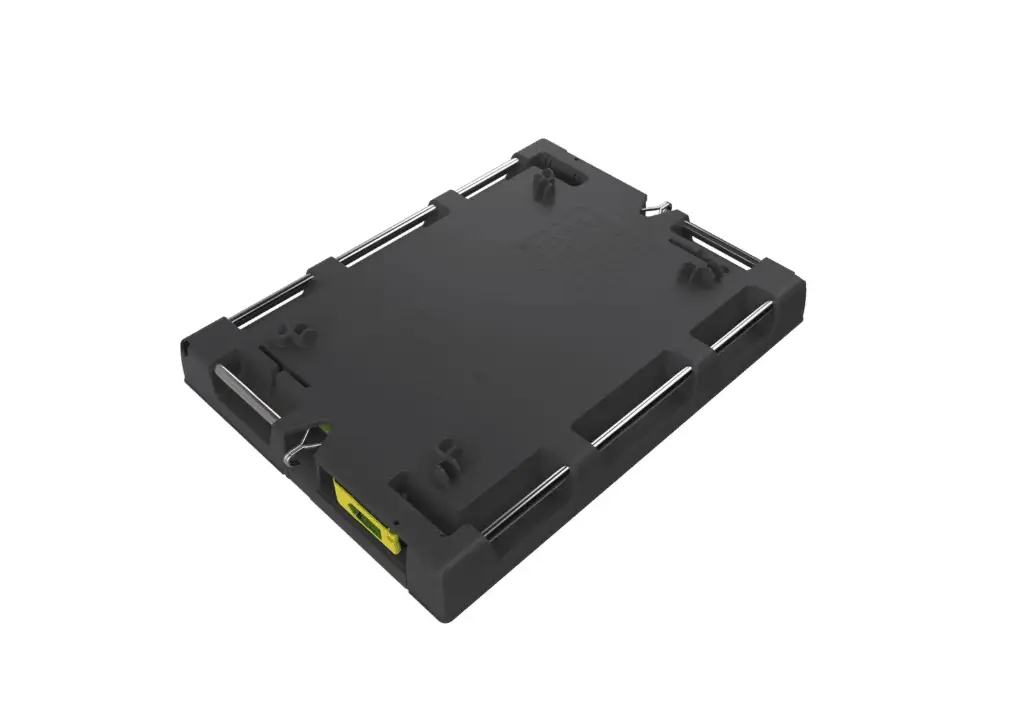

Pallet cover with integrated retractable straps

Pallet lid with integrated retractable straps

The Loadhog pallet lid has built-in retractable straps: place it on the load, pull out the straps, hook them and tension them. With 2 straps you close the load in 20 seconds on average, against 2–3 minutes for strapping, and you no longer throw away film or straps.

Sizes 800×600, 1200×800 and 1200×1000 mm, with 2 or 4 straps; for 1200×800 there is a version with a hook for dollies and Adaptor Pallet. 6 handles, prepared for a seal.

Pallet lid with retractable straps: secure the load without stretch film or strapping

The Loadhog plastic pallet lid, with the straps already integrated: you place it on the load, pull out the straps, hook them and tension them. With 2 straps it takes on average 20 seconds, against 2–3 minutes for strapping, and you no longer throw away film or strapping bands. Sizes 800×600, 1200×800 and 1200×1000, with 2 or 4 straps; for the 1200×800 there is also the version with a hook for Dolly and Adaptor Pallet.

2 or 4 retractable straps800×600 · 1200×800 · 1200×1000About 20 s to closeNo film or strappingReady for a sealVersion for Dolly and Adaptor Pallet

20 son average to close with 2 straps

2–3 minwith a strapping solution

3sizes: 800×600, 1200×800, 1200×1000

6handles for lifting it

Why choose it

Close in 20 seconds

You place it, pull out the straps, hook them and tension them with the locking mechanism: on average 20 seconds, against 2–3 minutes with strapping.

Zero one-way packaging

No film, no strapping, no single-use material to buy and dispose of: the lid comes back and goes out again.

Light and tough

Injection-moulded plastic, light and impact-resistant, with six handles: it is lifted and placed effortlessly and lasts a long time in distribution loops.

For different loads

It holds cardboard boxes and plastic containers of different shapes and sizes in place, and protects the load during handling.

Choose it if…

You ship or move pallets in a closed loop, between supplier, plant and stores, and want to eliminate film and strapping.
You close many pallets a day and packing time weighs on the shift.
The load consists of boxes or plastic containers, even of different sizes.
You need a security seal on the load.
You use Dolly and Lean Adaptor Pallet and want to close the load right there.

Choose another solution if…

You only need a lid for 1200×800 pallets, to be secured with your own straps or strapping: Plastic pallet lid 1210x810 →
You want a steel folding cage, closed and accessible from three sides: SmartCube Light →
You need a plastic container on a pallet, with modular sides and a lid: Black plastic pallet for Modular Box →

Not sure which one to choose? Use the selection guide →

Where the pallet lid is used

Wherever pallets move often and the film ends up in the skip after every trip:

Logistics and distribution: pallets closed in a few seconds at dispatch, lids that come back with the empties
Retail: deliveries to stores with the load protected and sealable
Manufacturing: pallets of components between supplier and plant, also with KLTs on Dolly and Lean Adaptor Pallet

The lid pays off most in closed loops, where it comes back with the pallet or the dolly.

See it at work

Pallet lid with retractable straps in use

How the load is closed

1. Position the lid

You place it on top of the load, holding it by the handles.

2. Pull out the straps

The retractable straps come out of the lid and hook onto the pallet.

3. Tension

With the locking mechanism you pre-tension the straps: the load is secure.

To release, do the reverse: the straps retract into the lid and are not left lying around.

Details that make the difference

Designed for daily use and for automated lines:

Security seal

It is ready for a seal: you see at once whether the load was opened in transit.

Ready for automation

A dedicated hole allows the strap to be tensioned automatically; the logo in the centre lets cameras recognise the lid so it can be placed correctly on the pallet.

Hooks for every base

Standard hooks, hooks for wooden pallets and, on the 1200×800, the version with a hook for Dolly and Lean Adaptor Pallet.

View product →

Tell us which pallet or dolly you use: we will confirm the right hook before you order.

The LeanProducts service

A single point of contact, from analysis to reordering:

Flow and layout analysis

We look at components, consumption, workstations and routes with you and tell you which lids you need, in what sizes and in what quantities.

Configuration

We choose sizes, colours, lids and accessories together, and match them to the dollies, trolleys and shelving you already use.

Delivery

We confirm codes, pack sizes and availability in the quote, and deliver where you need them.

Reorders and expansions

When the line grows or changes, you reorder the same codes or add the missing sizes: the system stays uniform.

LeanProducts designs and supplies lean solutions for intralogistics: containers, dollies, tugger trains and FIFO lanes.

Versions and data

Part number	Size · straps
LP-PL800600	800 × 600 mm · 2 straps
LP-PL1200800	1200 × 800 mm · 2 straps
LP-PL1200800-4C	1200 × 800 mm · 4 straps
LP-PL1200800-D	1200 × 800 mm · 2 straps, Dolly hook for Adaptor Pallet
LP-PL12001000	1200 × 1000 mm · 2 straps
LP-PL12001000-4C	1200 × 1000 mm · 4 straps
Material	Injection-moulded plastic
Closure	Integrated retractable straps, with locking and pre-tensioning mechanism
Handles	6
Safety	Ready for a seal
Automation	Hole for automatic strap tensioning; central logo recognisable by camera
Loads	Cardboard boxes and plastic containers of different shapes and sizes

Average closing time: about 20 seconds with 2 straps, against 2–3 minutes with strapping.

Accessories and related products

Lean Adaptor PalletWith the Dolly hook version

Plastic EURO pallet with 3 runnersPlastic pallets 1200×800 and 1200×1000

Plastic pallet lid 1210x8101210×810 lid without straps

SmartCube LightFolding cage, no film

R-KLT container with composite baseKLTs to close on a pallet or Adaptor Pallet

Any other questions?Read the 12 frequently asked questions →

Do you want to eliminate film and strapping from your pallets?

Tell us your pallet sizes, loads and flows: we will propose the right version and how many lids the loop needs.

Request a quote Call +39 0434 572757

Specifications

Dimensions mm	1200x1000
Straps	2 retractable straps

Three steps: you place the lid on the load, pull out the straps and hook them, then tension them with the locking mechanism. To remove the lid you release the straps, which retract into the lid.

On average it takes 20 seconds to close a pallet with a 2-strap lid, against 2–3 minutes with a strapping solution. On top of that, you do not buy and dispose of film and strapping with every shipment.

Yes: a single accessory secures and protects the load without shrink wrapping. It pays off most in closed loops, where the lid comes back and is reused.

The 1210×810 lid is secured with separate straps or strapping. The lid with retractable straps has them already integrated: you place it, pull out the straps, hook them and tension them, on average in 20 seconds with 2 straps.

800×600 mm with 2 straps; 1200×800 mm with 2 or 4 straps or with Dolly hook for Adaptor Pallet; 1200×1000 mm with 2 or 4 straps.

With 4 straps you have more fixing points, with 2 you close faster. It depends on the height, weight and stability of the load: tell us what you ship and we will recommend the right version.

Yes, in the 1200×800 version with Dolly hook (LP-PL1200800-D): you close the load of dollies and KLTs directly on the Adaptor Pallet, without film. The loaded Adaptor Pallet, with containers and lid, can also be stacked.

Yes: as well as the standard hooks there are hooks for wooden pallets. Tell us which pallet you use and we will confirm the right hook.

Cardboard boxes and plastic containers of different shapes and sizes. The lid protects the load during handling and, with the seal, shows whether it has been opened.

With the pallet lid with integrated retractable straps: you place it on the load, pull out the straps, hook them and tension them. For stacks of KLT containers on 1200×800 pallets there is also the 1210×810 lid, secured with straps or strapping bands.

Yes, the lid is ready for a security seal: at the destination you see at once whether the pallet was opened in transit.

It is designed for that too: a dedicated hole allows the strap to be tensioned automatically and the logo in the centre lets cameras recognise the lid so it is placed correctly on the pallet. We assess integration with your system together with you.
