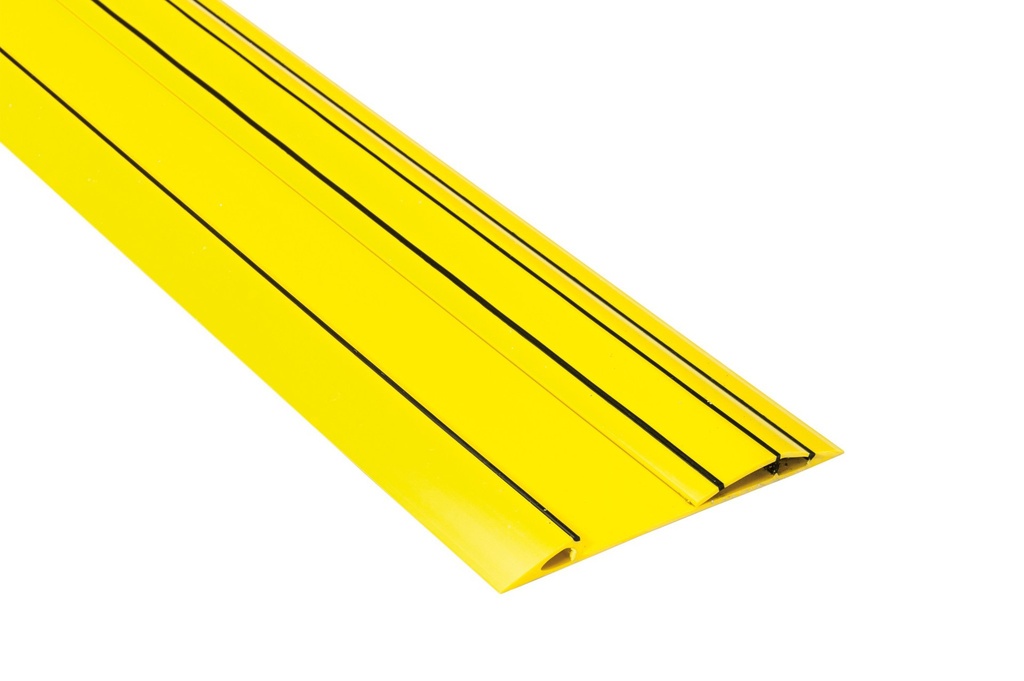

Plastic Park Station
The plastic Park Station is a yellow rail with flexible edges that you stick to the floor across the trolley path: it holds the front wheels and marks the trolley’s place at a glance. It takes wheels of any diameter, without spacers.
For trolleys up to 150 kg. Width 135 mm, lengths 400–2400 mm, easy to cut to size; pack of 5. Ideal for workstations you need to set up quickly.
Lean Logistic · Park Station
Plastic Park Station: yellow, self-adhesive trolley parking that is easy to cut
A yellow plastic rail with flexible edges, bonded to the floor across the trolley's path: it holds the front castors and marks the trolley's place at a glance. It is light, self-adhesive, can be cut to size and takes castors of any diameter. Ideal for trolleys up to 150 kg and for workstations that need to be set up quickly.
Need to park several carts? Configure it starting from your cart →
Why choose it
Ready in a few minutes
Remove the backing film, stick it down and the parking spot is done: ideal for new or temporary workstations.
Can be cut to size
The plastic is easy to cut: you adapt the length to the workstation without special tools.
Visible at once
The yellow marks the trolley's place and increases safety in work areas.
Castors of every diameter
The flexible edges take castors of any diameter, without spacers.
Choose it if…
- You have light trolleys, up to 150 kg.
- You want to set up or change trolley spaces quickly.
- You need a highly visible yellow solution, without drilling.
- You want to cut the length directly on site.
Choose another solution if…
- You have heavy trolleys or need screw fixing, high or low profiles: Aluminium Park Station (2 pcs) →
- The trolleys must queue up and be picked in order of arrival: Modular rail FIFO Station →
- You need a flat yellow guide to steer trolleys along the route: FLATRAIL self-adhesive 75x5 mm →
Not sure which one to choose? Use the selection guide →
Where it is used
In places where light trolleys must stay still and in order:
- Line side: dollies and kit trolleys always at the same point, ready for picking
- Workstations: tool trolleys and containers parked in their place
- Temporary areas: start-ups, layout trials, events, temporary warehouses
- 5S projects: trolley spaces marked in yellow, visible to everyone
The ends are closed with black plastic adhesive end pieces that remove the risk of tripping.
How it is installed
Clean floor
Dry, clean surface, free of dust, oil or grease.
Cut to length
Cut the rail to the length of the workstation.
Stick and press
Remove the backing film, position the rail across the trolley's path and press firmly.
Close the ends
Fit the plastic end pieces: adhesive, drilled and supplied with screws and wall plugs to fix them to the floor.
View product →The LeanProducts service
We help you get from drawing to finished lane:
Flow and layout analysis
We start from what you move, how many trolleys go in and out and where they are loaded and picked: we design lanes, loading and picking points with you.
Configuration
We choose the system, lengths, end pieces, connectors and accessories based on castors, loads, floor and available space.
Delivery and commissioning
We deliver the complete kit, with the component list and installation instructions, and support you during start-up.
Spare parts and support
End pieces, connectors, screws and accessories remain available for extending the station or replacing damaged parts.
Send us a plan or a few photos of the area and the trolley dimensions: we will propose the configuration and quantities.
Technical data
| Specification | Value |
|---|---|
| Codes and sizes | PAB-KU-400 · 400 × 135 mm; PAB-KU-800 · 800 × 135 mm; PAB-KU-1200 · 1200 × 135 mm; PAB-KU-2400 · 2400 × 135 mm |
| Pack | 5 pieces |
| Material | Yellow plastic with flexible edges |
| Fixing | Self-adhesive |
| Maximum load | 150 kg |
| Castor diameter | Any |
| Cutting | Easy to cut to size |
| End pieces | PAB-KU-EK, black adhesive plastic, 10 pcs (5+5) |
For heavier trolleys or frequent impacts, choose the aluminium Park Station, also available with screw holes.
