Steel terminal Monorail LiFo

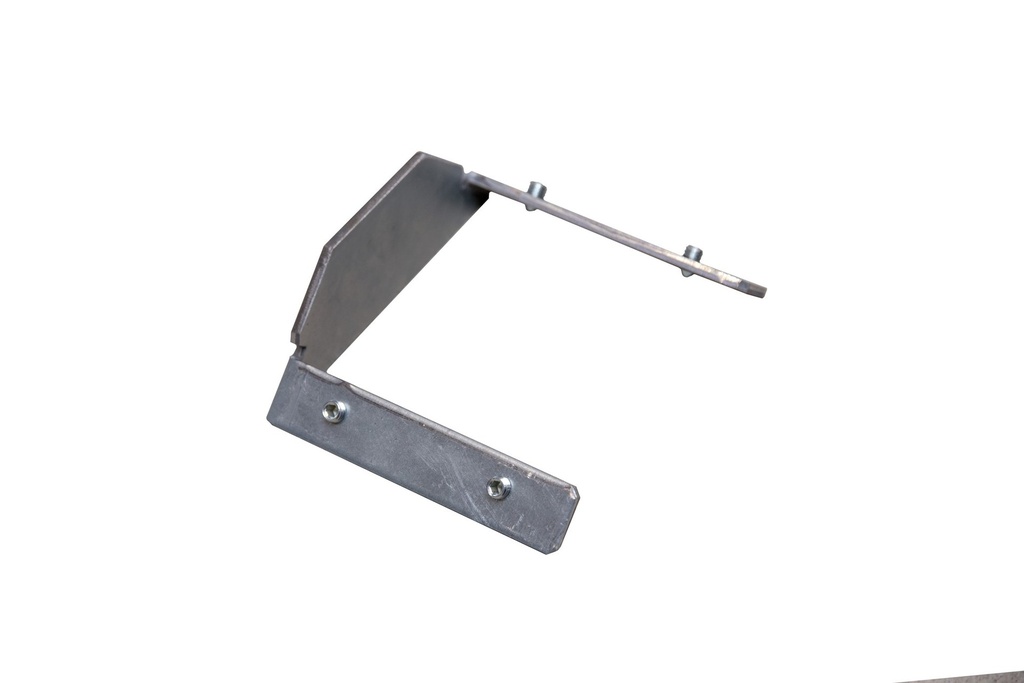

The MONO-STOP end stop is a bent stainless steel (1.4301) stop that mounts on existing Monorail rails: it closes the end of the lane so trolleys cannot roll out. It turns the lane into a LIFO lane, loaded and picked from the same side. It is fixed with threaded grub screws, no floor drilling.
MONO-STOP for 40 mm rails, MONO-STOP-55 for 55 mm rails; for all wheel types. Not suitable for swimming pools or seawater.
Documents
Lean Logistic · FIFO Monorail accessories
Steel end stop for Monorail 40 and 55 mm rails: LIFO lanes
A high-strength steel end stop that fits on existing Monorail rails and stops trolleys from leaving at the far end. It turns the lane into a LIFO lane: you load and pick from the same side. It is fixed with threaded grub screws, in a few minutes.
Designing a FIFO station? Configure it starting from your cart →
Why choose it
The trolley does not roll away
It closes the rail: trolleys do not leave at the far end of the lane.
LIFO lane
Loading and picking from the same side, when space or flow requires it.
Fits on existing rails
Threaded grub screws in the Monorail slots: no holes in the floor.
Data and compatibility
| Specification | Value |
|---|---|
| Codes | MONO-STOP for 40 mm rails; MONO-STOP-55 for 55 mm rails |
| Compatible with | FIFO Monorail 40 mm and 55 mm rails |
| Pack | 1 piece |
| Material | Stainless steel X5CrNi18-10 (1.4301), bent |
| Mounting | Threaded grub screws on the rail |
| Castors | All types (rubber, polyamide…) |
| Warning | Do not use in swimming pools or in contact with seawater |
Choose the code according to the rail width: 40 or 55 mm.
FIFO Monorail 40 mm40 mm rail
FIFO Monorail 55 mm55 mm rail
Brake with brushesBrush brakeDo you need a component for your FIFO lane?
Tell us which rail you use and what the station looks like: we will confirm the right codes and quantities.
