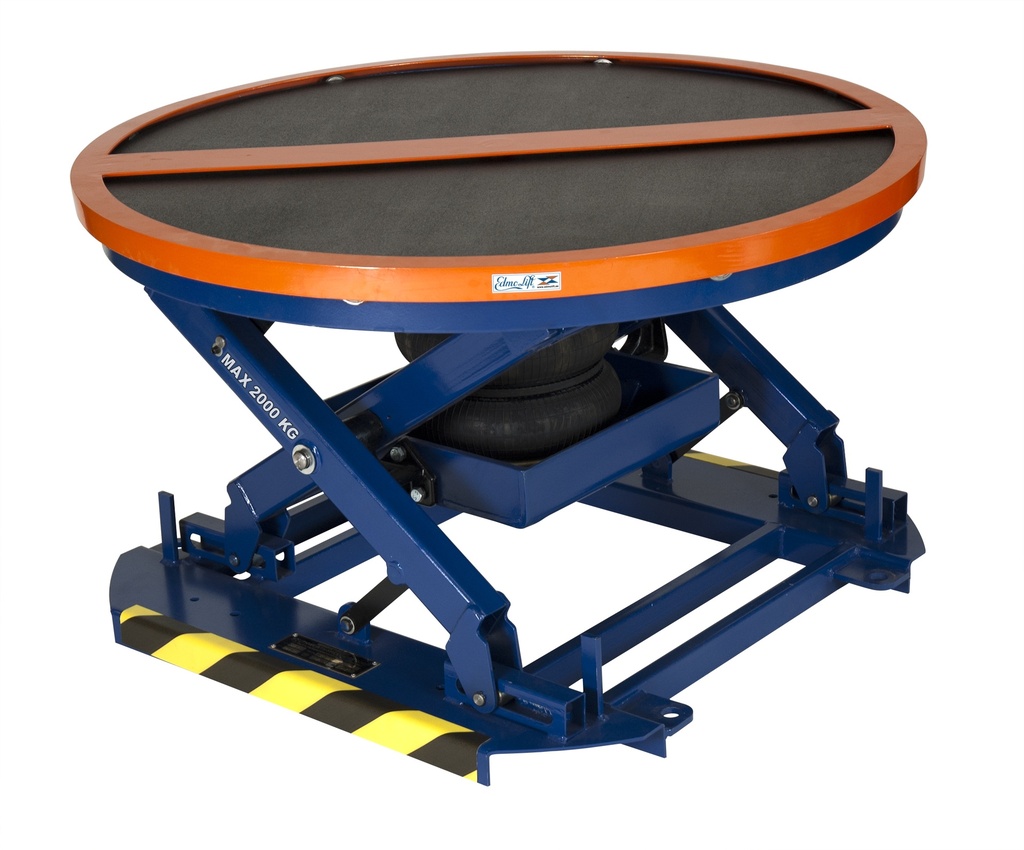

PL 2002 Pneumatic Pallet Leveller

https://leanproducts.eu/web/image/product.template/2314/image_1920?unique=d0a6f66

Edmolift pallet leveller with turntable and automatic levelling: it requires no installation and no power source. A bellows cylinder adjusts the pressure according to the weight and always keeps the load at the correct picking height. The turntable (Ø 1110 mm) lets you rotate the pallet without walking around it or bending down.

Capacity from 150 to 2000 kg, depending on the pressure set.

Operation: fill the tank with compressed air and adjust the valve according to the weight. As load is added or removed, the height changes accordingly.

Code: 86944
  • Lowest Height mm
  • Max Height mm
  • Turntable Diameter mm
  • Weight Kg

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Download PDF data sheet

Specifications

Capacity Kg 2000
Lift Stroke mm 464
Lowest Height mm 241
Max Height mm 705
Lift Table Length mm 1110
Lift Table Width mm 750
Turntable Diameter mm 1110
Weight Kg 220

No. The tank is filled with compressed air, for example with a compressor, and the valve is set according to the load weight; from then on it levels itself. It needs no installation.

From 150 to 2000 kg, depending on the pressure set. It keeps the load at the recommended working height, from 750 to 1000 mm.

No: the base is stable and needs no fixing. The frame is fork-liftable, so it can be moved with a pallet truck or forklift.

No: the low-friction turntable, 1100 mm in diameter, brings every side of the pallet in front of the operator, who loads and unloads from close by with 360° access.

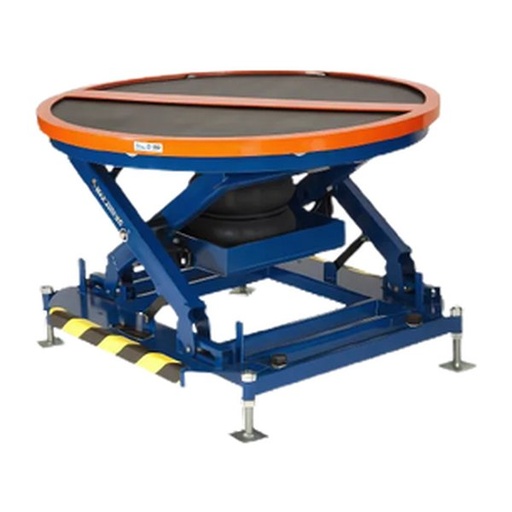

Yes, with the adjustable raised frame: the total height ranges from 755 to 825 mm and the frame can be moved with forks.

By lifting and tilting the load towards the operator: the Armlift lifts and tilts from +5° to −40°, the TSLN pallet lifter tilts the pallet by 40° to the right and left, and the tilters reach 45° or 90°. If the pallet is emptied or filled layer by layer, the PL 2002 pallet leveller keeps it at the right height at all times, without electricity.

The pallet lifter is loaded directly with a manual pallet truck and raises the pallet up to 970 mm, with free access on three sides; the TSE goes down to 10 mm. Among the Armlifts, the ALT 1500U, ALT 1500UE and ALT 1500GB have a U-shaped platform only 6 mm high and pick up pallets and trolleys straight from the floor.

With the ARZ and LTT 750 lifting arms: they take the trolley from the tugger train, lift it and tilt it towards the operator. The ARZ adjusts height and tilt from +5° to −40°; the LTT 750 lifts vertically and takes up the least space.
