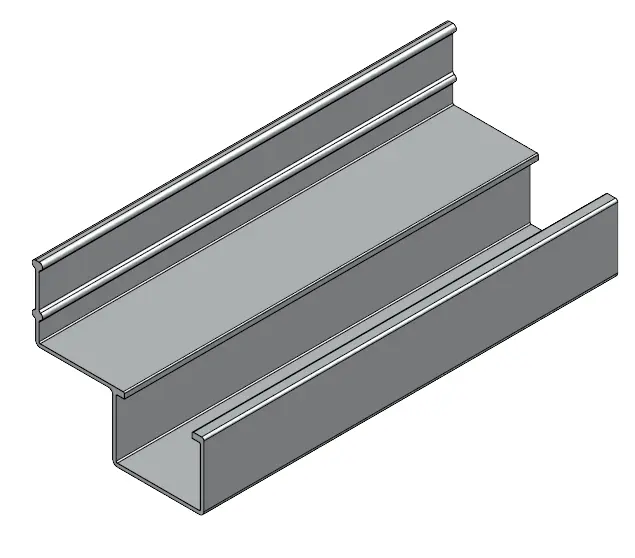

Aluminium side guide

https://leanproducts.eu/web/image/product.template/1770/image_1920?unique=0542222

Aluminium side guide for gravity roller tracks on Green Frame structures: it delimits the lanes and keeps containers in line as they run down. 4000 mm bar that we cut to the lane length.

Read more ↓
Code: LP-GLAL1
Length: 4,000
  • Materiale
  • Length

Cut dimensions

mm
73,5 × 59 mm Real profile section
0Full bar 4000 mm
Calculating price…
Full bar Full sheet of the sheet From {min} to {max} mm · full bar {max} mm Up to {maxl} × {maxw} mm · minimum {min} mm Length between {min} and {max} mm. Width between {min} and {max} mm.

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Materiale Aluminium
Length 4000

Usually one more than the number of lanes: one for each outer side and one between two adjacent lanes. So with 3 lanes, 4 guides. The length is that of the roller track.

The side guide delimits the lanes and keeps containers in line along the edges. The centre guide is fitted inside the roller track, between the roller tracks, and separates or centres the containers. We will tell you the right layout for your containers.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
