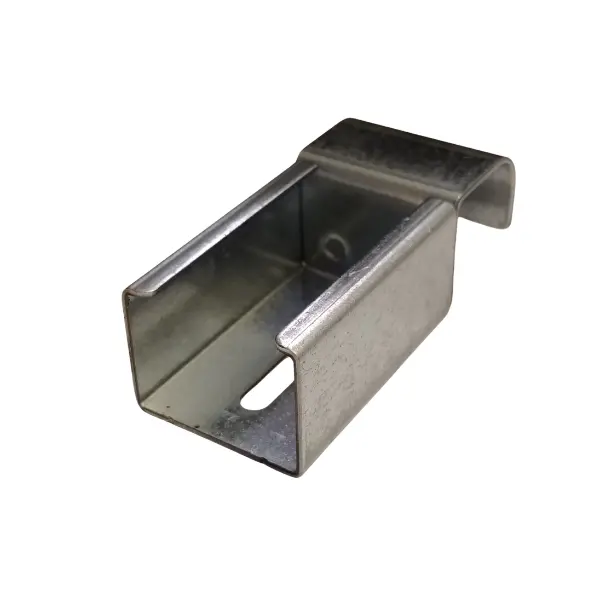

Roller track hook

https://leanproducts.eu/web/image/product.template/1771/image_1920?unique=b5b9720

Hook for gravity roller tracks: hooks the roller track onto the Ø 28 mm pipes of the Green Frame frame, secured with a screw. It is the basic connection between roller track and structure in FIFO racks and flow racks.

Code: LP-GN01

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Download PDF data sheet

Specifications

The LP-GN01 roller track hook hooks the roller track onto the frame pipes, secured with a screw. The GF28-GXR4 bridge hook attaches it to the pipe with a bridge fitting. The GF28-GXR7-1 end hook attaches the end of the roller track to the pipe. The GF28-GXR6 flexible bridge joins two roller track sections. For the end of the lane there are the high and low stop hooks. We give you the list of the right hooks for your rack.

Usually one per roller section at each hooked end. The exact number depends on lanes and sections: you will find it in the component list we prepare for you.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
