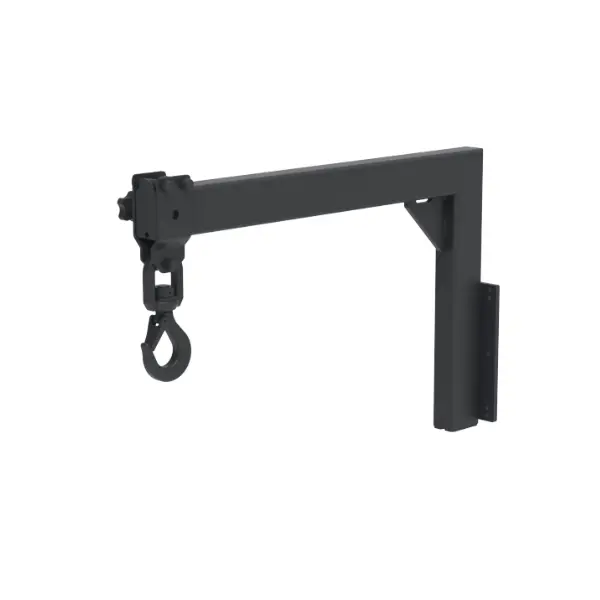

Crane arm
The Crane arm is an arm for work positioners designed for lifting and positioning applications on production lines, available in painted steel or stainless steel for environments with high hygiene requirements. Dimensions are 600 mm long and 400 mm wide. The system is compatible with a range of dedicated accessories — snap hooks, 360° latch hooks, adjustable crossbar and digital weighing system up to 200 kg with ±0.1 kg accuracy — that extend gripping and measuring functions without modifying the load-bearing structure.
Work Positioner Tools · Crane Arms
Crane Arm with Adjustable Hook Support for Work Positioner
It turns the Work Positioner into a small mobile crane: hang the load, lift it and take it where it is needed. Adjustable hook support, in painted steel or stainless steel.
Why choose it
Suspended loads
Bags, gas cylinders, metal sheets: anything that can be hooked.
On all WP models
From the WP 55 (45 kg) to the WP 285 (200 kg).
Lifting accessories
Hook, shackle, chain, snap hooks, crossbar and scale are ordered separately.
See it at work
WP 65 SS with crane arm for gas cylinders
WP 125 SS with crane arm for metal sheets
Technical data
| Specification | Value |
|---|---|
| Version | Steel, Stainless Steel |
| Length mm | 600 |
| Width mm | 400 |
The usable capacity depends on the Work Positioner the tool is fitted to: you will find it below for each model.
Compatible with
WP 55Usable capacity 45 kg
WP 65Usable capacity 55 kg
WP 85Usable capacity 75 kg
WP 125Usable capacity 115 kg
WP 205Usable capacity 195 kg
WP 285Usable capacity 200 kg
Latch hookHook with safety latch
Safety shackle500 kg shackle
Lifting chain 1 mStainless steel chain by the metre
Adjustable crane crossbarCrossbar with 2 attachment points
Weighing system for crane armWeighs the suspended loadWe help you choose the right tool
Send us the weight, shape and dimensions of the load and tell us which Work Positioner you use: we will check the tool and the capacity.
