In-line anti-return GF-N

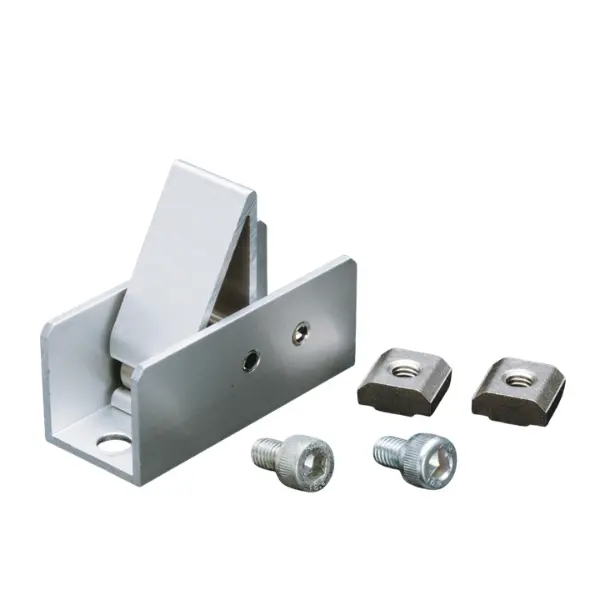

Aluminium anti-return for chutes and roller lanes on the GF-N pipe system: the box passes in one direction and does not come back. It screws onto the GF-N LS profile with S slot using the two M6 screws included. Capacity 300 N.
Green Frame · Moving parts and karakuri
In-line anti-return GF-N
The in-line anti-return lets boxes and containers pass in the direction of flow and stops them if they roll back. Use it at the entry of a chute, on roller trolleys during transport or in a karakuri, to stop the part from moving backwards.
Why choose it
One-way flow
Boxes advance towards the picking point and do not come back.
Safe in motion
On roller trolleys it holds the box in place during transport.
Kit with screws
Two M6 × 10 screws and two S nuts (M6) included.
Data and compatibility
| Specification | Value |
|---|---|
| Code | GFA-C99 |
| Fits on | GF-N LS profile with S slot |
| Contents | 2 M6 × 10 screws, 2 S nuts (M6) |
| Material | Extruded aluminium, steel screws, stainless steel nuts and pins |
| Capacity | 300 N |
| Weight | 60 g |
To snap it onto the GF-N pipe between two roller tracks there is the GF-N anti-return mechanism.
GF-N LS profile with S slotProfile it fits on
GF-N anti-return mechanismSnap-on anti-return on the pipe
Anti-return stop for roller trackAnti-return stop for roller track
Roller trackGravity roller trackAre you designing a karakuri mechanism?
Describe the movement you need and the weight to be moved: we will propose components, quantities and an assembly layout.
