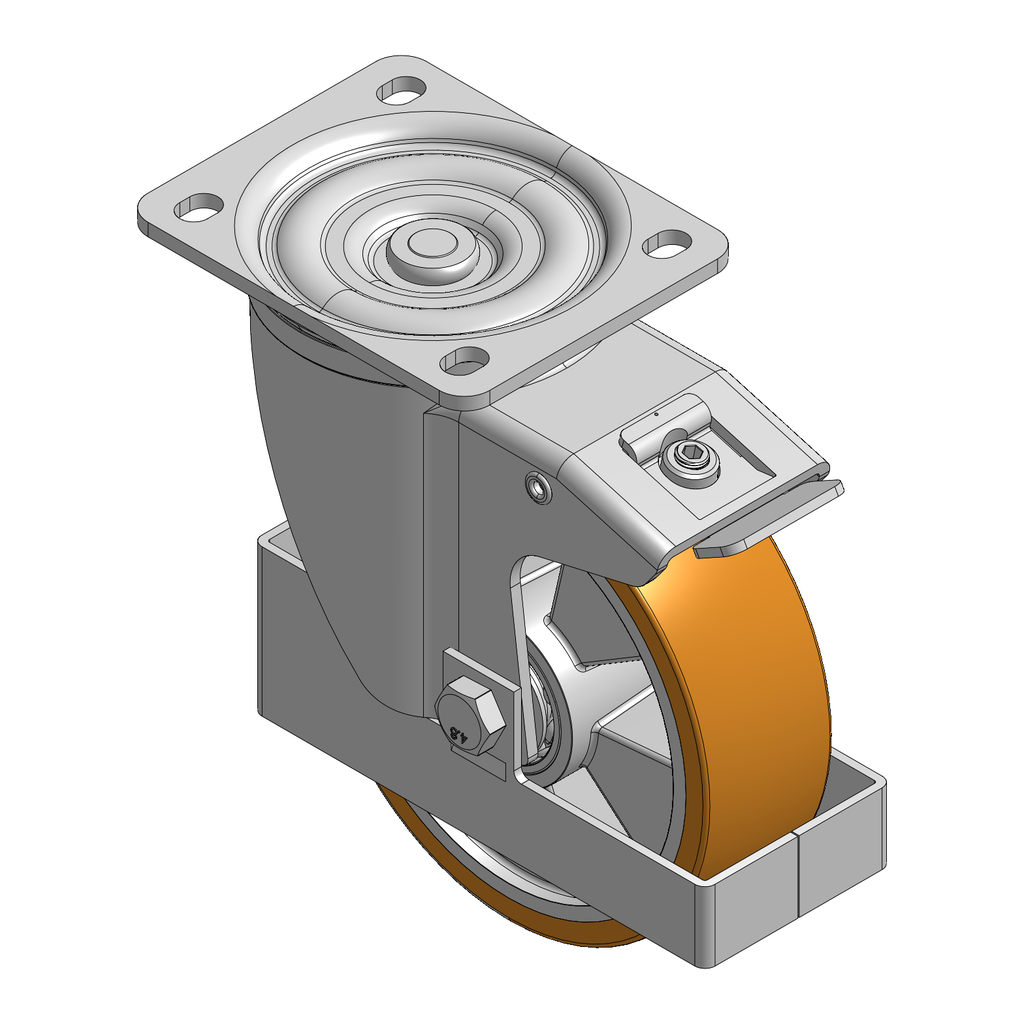

Heavy-duty plate-mounted castor

https://leanproducts.eu/web/image/product.template/1764/image_1920?unique=480dd02

Plate-mounted castor Ø 160 mm in polyurethane with ball bearings, capacity 400 kg: fixed or swivel with brake, for pipe trolleys and structures with heavy loads.

Read more ↓
Code: LP-RP021
from not with options Prices per piece + VAT Prices per pack of %s + VAT colors only of available
  • Type
  • Wheel Diameter
  • Material
  • Bearing Type
  • Capacity Kg

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Type Fixed
Wheel Diameter 160
Material Polyurethane (PU)
Bearing Type Ball bearings
Capacity Kg 400

Yes, but with 400 kg per castor the frame, connectors and plate fixing must be sized for that load. Send us the drawing or the loads: we will check the structure and the fasteners.

Count the load on three castors out of four: about 1200 kg with four castors. With steps or an uneven floor count half. The real limit is also set by frame and connectors.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
