Plate-mounted castor

https://leanproducts.eu/web/image/product.template/1737/image_1920?unique=b5b9720

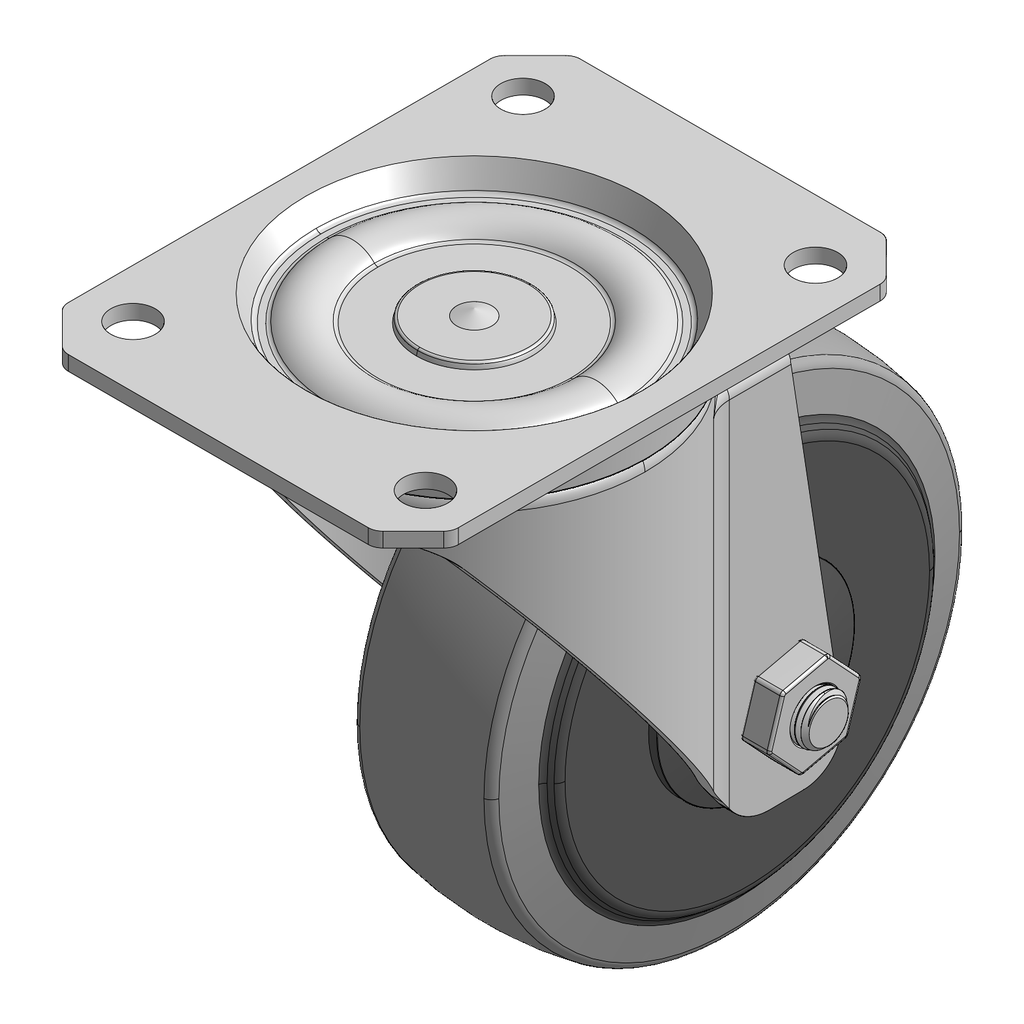

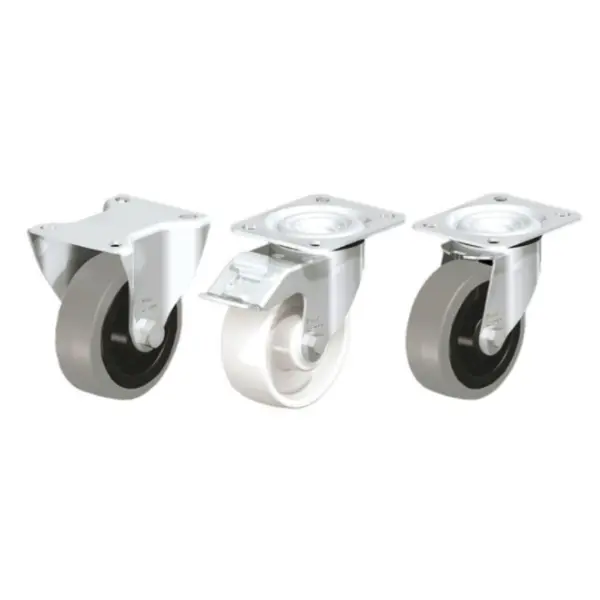

Plate-mounted castor Ø 100 or 125 mm, fixed, swivel or swivel with brake, in elastic rubber or polyamide with ball bearings: capacity 150 kg. Fixed to the profile with C10 slot with M8 screws and hammer nuts.

Code: LP-RP004
  • Type
  • Wheel Diameter
  • Material
  • Bearing Type
  • Capacity Kg

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Download PDF data sheet

Specifications

Type Fixed
Wheel Diameter 100
Material Elastic Rubber
Bearing Type Ball bearings
Capacity Kg 150

The plate screws under the GF-N profile with C10 slot of the trolley base: 4 M8 screws with hammer nuts inserted in the slot. On the Ø 100 the plate holes are at 80 × 60 mm.

Each castor carries 150 kg, but to be safe count the load on three castors: 4 castors ≈ 450 kg. With steps or an uneven floor count half. The real limit is also set by frame and connectors: we check it with you.

Usually two swivel castors with brake on the side you push from and two fixed or swivel on the other. For trolleys to be manoeuvred in tight spaces fit four swivel castors, at least two of them braked.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
