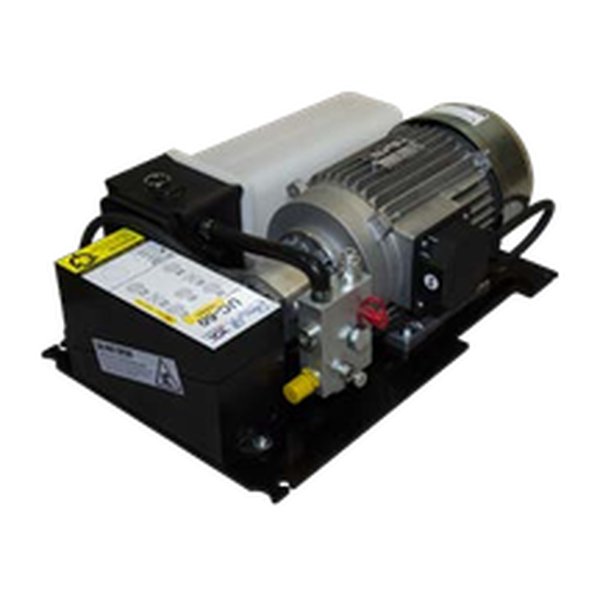

Hydraulic Power Unit Supply
Hydraulic power unit in single-phase 230 V version (maximum 1.5 kW) or three-phase 500 V, with a 1.0 or 2.0 kW pneumatic motor, or a preparation kit for a 24 V battery (battery and charger not included).
Edmolift · Lift table accessories
Power unit supply: single-phase, 500 V, pneumatic or battery
Changes the hydraulic power unit supply from the standard 400 V three-phase: 230 V single-phase up to 1.5 kW, 500 V three-phase, 1.0 or 2.0 kW pneumatic motor or 24 V battery preparation.
Why choose it
Where there is no three-phase supply
The 230 V single-phase version connects to the normal mains, up to 1.5 kW of power.
Compressed air
Pneumatic motor of 1.0 kW (80 m³/h of air at 6 bar) or 2.0 kW (170 m³/h).
Battery-ready
24 V preparation kit: battery and charger are not included.
Technical data
| Power Supply | Monophase 230V, Three-phase 500 V, Pneumatic motor 1.0 kW, Pneumatic motor 2.0 kW, Prepared for 24 V battery |
As standard, Edmolift lift tables are 400 V three-phase, with 24 V controls. You choose the supply version.
TL 2000 Single Scissor Lift TableSingle scissor lift tables
TLH 2000 Tandem Scissor Lift TableHorizontal double scissor lift tables
TLD 1000 Vertical Lift TableVertical double scissor lift tables
HDL 2000 HD Series Lift TableHD series for continuous useNeed help choosing?
Tell us the lift table model and serial number: we check the right accessory with Edmolift and prepare the quote.
