LongLife Vector™ rounded floor shapes

ORGATEX LongLife Vector™ · Rounded shapes

Vector™ Rounded shapes: 90 mm pieces with rounded edges for forklift manoeuvring areas

The Vector™ line, made for forklifts steering and turning on the spot, with a rounded profile: the rounded corners reduce the load on the edges from passing forklifts and the risk of lifting. 90 mm wide, in five shapes (T, L, straight, dot and 2-part cross), for pallet locations and busy intersections on smooth floors.

For forklifts turning on the spotRounded edges90 mm wide5 shapes incl. cross9 colours

Vector™ Rounded shapes: 90 mm pieces with rounded edges for forklift manoeuvring areas

90 mmwidth

5shapes

9colours

50pieces per pack

Which traffic: Vector™ line

Pedestrians

Manual and electric pallet trucks

Forklifts

Heavy forklifts

Forklifts turning on the spot

Thickness 0.2 mmMaterial polyesterOperating temperature 0/+90 °CApplication temperature ≥ 12 °C

Compare all lines →

Why choose it

Withstand turning forklifts

Designed for the shear and torsional forces of wheels steering on the spot, where ordinary marking frays or lifts.

Rounded edges

Rounded corners reduce the load on the edges from passing forklifts and the risk of lifting.

Cross and dot

The 2-part cross marks intersections and the meeting point of four locations; the dot marks precise positions.

Combine with Rounded Standard

Same shapes and sizes as Rounded Standard: use Vector™ only in manoeuvring areas.

Choose it if…

forklifts steer or turn on the spot over the marking
you want 90 mm shapes with rounded edges
you need a cross and dots for intersections and positions
the floor is smooth, indoors (concrete, epoxy)

Choose another solution if…

if heavy forklifts or very high loads pass LongLife Heavy Duty - Rounded Symbols →
if traffic is normal LongLife Standard - Rounded Symbols →
if you need widths from 50 to 100 mm or squares LongLife Vector - Symbols →
if you work in a cold store, below 0 °C LongLife Cold Performance - Rounded Symbols →

Not sure? Use the selection guide →

Five 90 mm shapes

They combine for single locations, blocks of floor positions and intersections. Leave 30–50 mm between pallet and shapes.

L piece

Corners of pallet locations in manoeuvring areas.

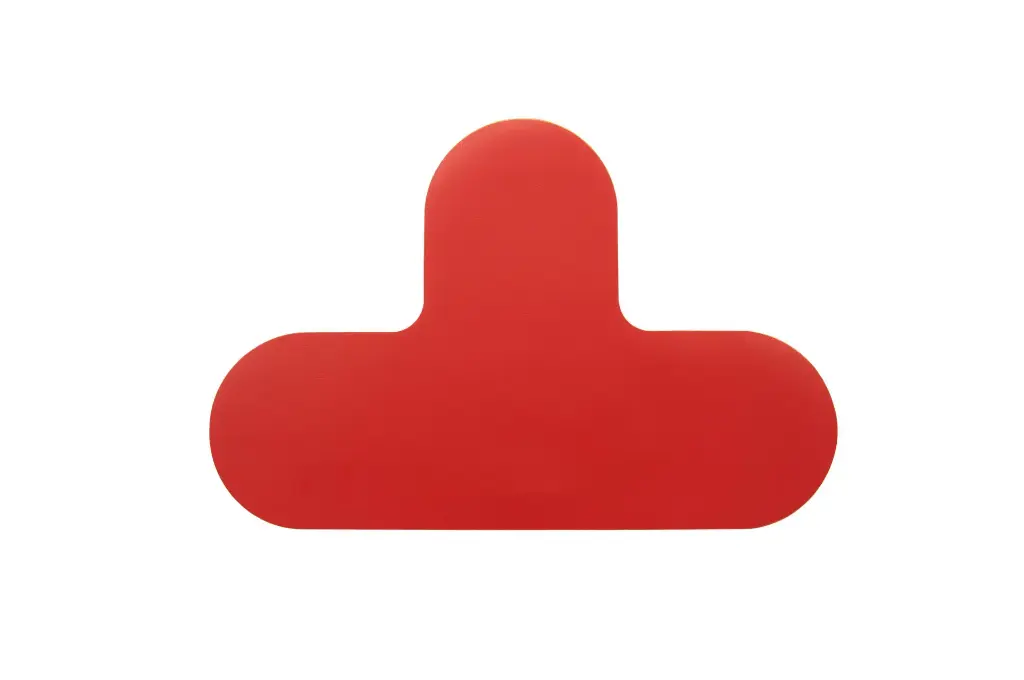

T piece

Shared side between two adjacent locations, or where one line joins another.

Cross (2 parts)

Line intersections and the meeting point of four locations.

Straight piece 90 × 450 mm

Long sides and dashed lines between areas.

Dot

Position of containers, trolleys or equipment; in a row, a dotted line.

Technical data

Pack	50 pcs
Color	Red, White, Light Blue, Yellow, Green, Black, Dark Blue, Orange, Light Grey
Width	90 mm
Shape	T-Shape, L-Shape, Longitudinal Marking, Cross, Point

All shapes are 90 mm wide: straight piece 90 × 450 mm, cross supplied in 2 parts. Pack of 50 pieces per shape and colour. For smooth, clean indoor industrial floors.

Other formats in the Vector™ line

LongLife Vector - Roll

LongLife Vector - Symbols

Accessories and related products

LongLife Standard - Protective screensFloor location code, scanner-readable

LongLife - Pressure RollerEven pressure when applying

LongLife - Remover, Cleaner, Primer & Edge SealingClean floor before application

Any other questions?Read the 10 frequently asked questions →

Is your floor marking wearing out fast?

Send us a few photos of the damaged marking and the traffic in the area: we will tell you whether you need Vector™, Heavy Duty or whether Standard is enough.

Request a quote Call +39 0434 572757

Specifications

Pack	50 pcs
Color	Red
Width	90 mm
Shape	Cross

They combine the Vector™ line, made for the shear and torsional forces of forklifts turning on the spot, with a rounded profile that reduces edge load and lifting. They suit busy intersections and manoeuvring areas.

T piece, L piece, 90 × 450 mm straight piece, dot and 2-part cross, all 90 mm wide, in 9 colours. Pack of 50 pieces.

Vector™ if forklifts turn on the spot over the shapes; Heavy Duty if heavy forklifts with high loads pass. In the ORGATEX table neither line covers both situations.

In Italy, Legislative Decree 81/08 (Annex XXVIII) requires that, where the use of the premises makes it necessary, vehicle traffic routes are marked with continuous lines in a clearly visible colour, preferably white or yellow depending on the floor, and that obstacles and danger points are marked with yellow/black or red/white bands angled at about 45°. Signs follow Annex XXIV: red for prohibitions, yellow for warnings, blue for mandatory actions, green for escape and first aid. Other colours (for example blue for raw materials, green for finished goods, red for scrap) are not set by law: they are an internal code to define and apply consistently.

The floor must be even, clean and free of dust, oil and grease. First clean thoroughly, then degrease the application strip with LongLife Cleaner. Remove old markings with the scraper and adhesive residue with LongLife Remover. On critical surfaces, such as porous or dusty concrete, LongLife Primer increases adhesion; outdoors it is always required.

Yes. According to ORGATEX, LongLife markings can be removed without residue using LongLife Remover. Markings are lifted with the LongLife scraper, 1200 mm long so you can work standing up, with a 125 mm blade and 3 spare blades; adhesive residue is dissolved with the Remover. On delicate floors test it in a hidden spot first.

Adhesive marking has no drying time: tapes and symbols are applied without chalk lines or special equipment and the area can be used straight away (the adhesive bonds fully in about 12 hours). When the layout changes it is removed without residue with LongLife Remover, and colours stay standard and consistent in repeat orders. Choose the line by traffic and floor: if in doubt, we will recommend it.

Yes, on request. ORGATEX makes LongLife Individuell tape in 50, 75 or 100 mm with custom colours, symbols or QR codes, and custom shapes in any form, size, colour and material: also with anti-slip surfaces, adhesives for rough floors or photoluminescent materials. Send us the drawing and quantities: we will prepare a quote with delivery times.

Yes. Send us a floor plan or a few photos of the areas to be marked or made safe and tell us how they are used (traffic, vehicles, floor, stairs, exits): we will recommend the right products, with colours, formats and quantities. For larger sites or special situations we can consider a site visit on request.

You can use pre-cut pieces – 45° and 90° corners (Standard), T and L pieces (Standard, Vector™, Heavy Duty, Cold Performance), crosses (Standard and Vector™ Rounded) – or cut the tape with the stainless steel LongLife cutting template, which guides 90° and 45° cuts on 50, 75 and 100 mm widths. For 10 pallet locations there is the marking kit (L corners, straight pieces and A4 windows); on uneven floors or outdoors, LongLife Modul L corners fixed with anchors. ORGATEX recommends not overlapping markings.
