Docking Station Self Cleaning CC1 - Automatic Charging, Water and Detergent with Roller cleaning

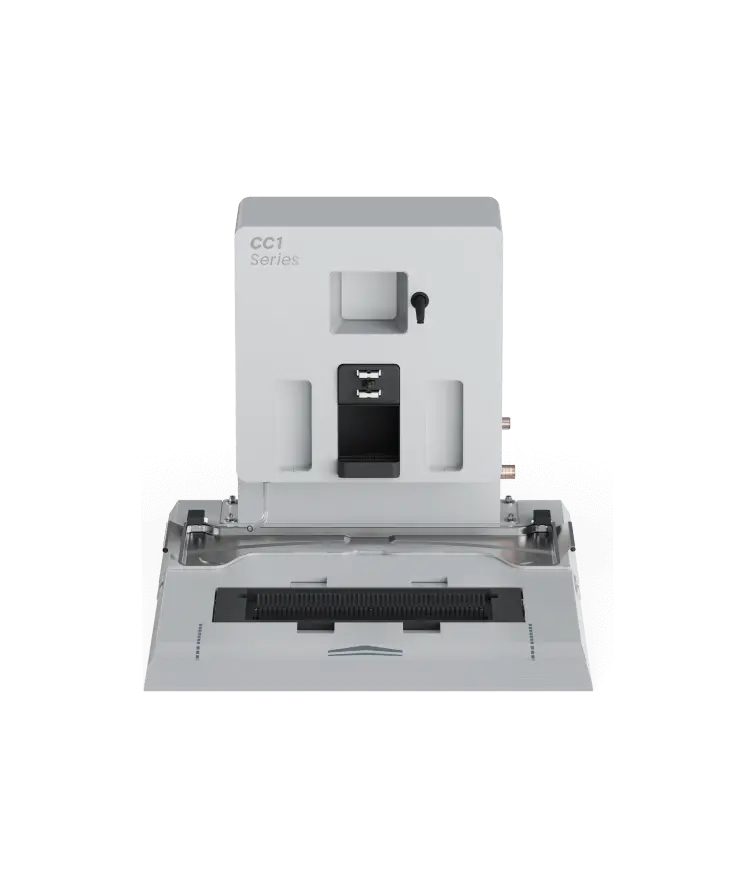

The Docking Station Self Cleaning CC1 (P-DS-CC1S) is the advanced docking station for the CC1 cleaning robot, designed to autonomously manage battery charging, clean water and detergent exchange, and roller cleaning. By consolidating these functions into a single unit, it eliminates manual intervention between operating cycles, ensuring continuous and unattended operation. An effective solution for industrial and commercial environments requiring automated, non-stop cleaning cycles.
Docking station
The CC1 Docking Station supports automatic detergent dosing and draining, automating the water refill process for the PUDU CC1 and improving cleaning effectiveness and quality.
Automatic charging:
The Dock Station provides automatic charging for the PUDU CC1, keeping the robot running continuously and increasing its productivity.
Flexible scheduling:
The Dock Station gives the CC1 a flexible scheduling system, letting it respond promptly to operating commands, improving effectiveness and making it easier to use.
Technical data
- Dimensions: 404x497x 274 mm
- Weight: 20kg
- Input voltage: 90~264V AC
- Output voltage: DC24V
- Operating temperature: 0~40℃
- Operating humidity: ≤90% (40℃)
- Storage temperature: -20℃~70℃
- Communication method: Bluetooth
- Installation requirements: floor fixing or rear fixing against the wall
- External dependencies: water source, floor drain, power supply
