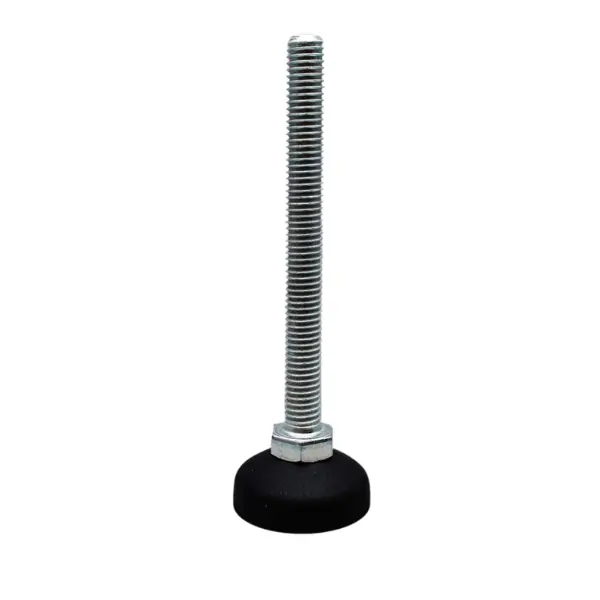

Plastic levelling foot

https://leanproducts.eu/web/image/product.template/1761/image_1920?unique=279ba48

Levelling foot with Ø 30 or Ø 50 mm plastic base and M8 or M12 threaded stem, 80 or 120 mm long. On GF-N Ø 28 pipe it is fitted with the M8 or M12 threaded insert.

Code: LP-P30M8-80
  • Diameter mm
  • Material
  • Thread
  • Length mm

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Download PDF data sheet

Specifications

Diameter mm 30
Material Plastic base
Thread M12
Length mm 120

It depends on the insert in the upright: the GFN-E01 has an M8 thread, the GFN-E02 M12. For new structures on GF-N pipe M12 is the most common choice.

The 120 mm stem (M12 only) gives you more adjustment travel: useful on very uneven floors or when the height has to be readjusted often.

The limit of the assembly is the insert: 1200 N with the M8 GFN-E01, 1250 N with the M12 GFN-E02. Tell us the load and we will check the number of feet.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
