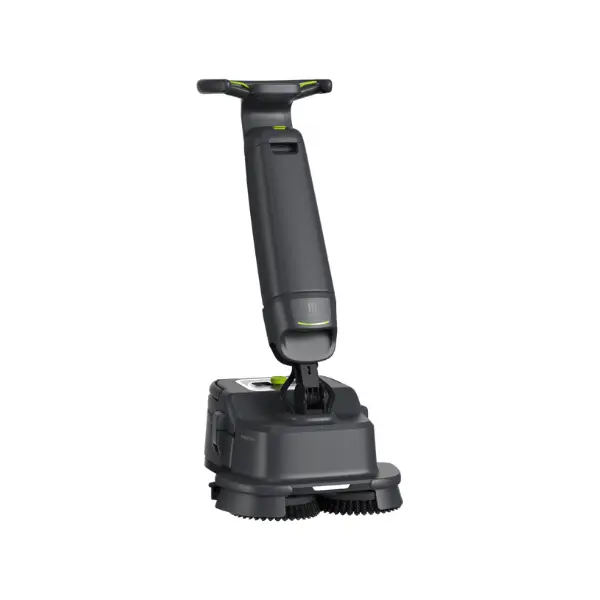

Name: Pudu SH1 Multifunctional Upright Scrubber Dryer
Brand: Pudu Robotics
SKU: P-SH1

PUDU · Walk-behind upright scrubber-dryer

Pudu SH1: professional upright floor scrubber-dryer, compact and connected

The floor scrubber-dryer that the operator pushes by hand and that scrubs, brushes and dries in a single pass, at 1100–1600 m²/h. It reaches where a robot or a large scrubber-dryer cannot: edges, under tables, narrow spaces, walls and shop windows with the accessories. With the PUDU Link app, manual cleaning gets its own reports too. LeanProducts, official PUDU distributor in Italy, helps you choose consumables and train staff.

Walk-behind scrubber-dryerScrubs and dries in one pass1100–1600 m²/h9 modesWalls, glass and under furniturePUDU Link app and reports

1100–1600 m²/hproductivity

44 cmscrubbing width

4 + 4 Lsolution and recovery

9cleaning modes

70–100 minbattery life, Standard and ECO

Why choose it

Scrubs and dries in one pass

Brush at 350 rpm with 27 kg of pressure, 20 kPa suction and a 49 cm squeegee: behind the machine the floor stays clean and dry.

Less water and detergent

Compared with a mop, the SH1 uses up to 80% less water and detergent and cuts cleaning time by up to 70%, with 4 L tanks that are easy to fill and empty.

It reaches where the robot cannot

Swivel head, handle that lowers to reach under tables and manual accessories for walls, shop windows, mirrors and spaces under furniture.

Measurable manual cleaning

The PUDU Cleaning Report records duration, water used and area cleaned for every job: you see them in the PUDU Link app, together with any PUDU robots.

Choose it if…

You have small or medium spaces, full of tables, furniture and narrow passages
You need touch-ups during opening hours, edges and corners a robot cannot reach
You want to clean walls, shop windows and spaces under furniture with the same machine
You want to standardise manual cleaning and have digital reports for every job

Choose another solution if…

You need cleaning without an operator, also at night, on hard floors and carpet: CC1 Multifunctional Cleaning Robot →
You are looking for a compact scrubber-dryer robot for shops and offices up to 800 m²: ET1 AI-Native Compact Scrubber-Dryer Robot →
You need to scrub warehouses and large areas autonomously: Pudu BG1 AI-Native Large Scrubber-Dryer Robot →
Dry-sweeping large areas autonomously is all you need: Pudu MT1 Sweeping Cleaning Robot →

Not sure which one to choose? Use the selection guide →

Where it works

The SH1 is a professional floor scrubber-dryer for hard floors, designed for environments that need agility and frequent cleaning:

Restaurants: rooms full of tables and chairs, food and drink residues, grease; you scrub and dry even during service
Hotels: lobbies, corridors, refreshment areas and the edges of common areas, with the handle that passes under furniture
Offices and buildings: entrances, toilets, break areas; with the accessories you clean glazing and vertical surfaces
Shops and supermarkets: quick touch-ups between aisles and in spots the robot cannot reach
Healthcare, schools and public spaces: frequent cleaning with data on every job in the PUDU reports
Cleaning companies and production areas: a compact machine to take from one area to another

Suitable surfaces: tiles, terrazzo, sealed concrete, marble, epoxy resin and wood. Dirt handled: dust, soil, food and drink residues, grease. It is not suitable for carpet.

See it at work

Pudu SH1 at work

The Pudu SH1 upright scrubber-dryer

Scrubbing, edges and accessories

Scrubs, brushes and vacuums

The brushless motor and the squeegee recover the dirty water in the same pass. The recovery tank separates air, liquids and solids so the drain does not clog.

360° edges and corners

The scrubbing head rotates and the front light illuminates the floor: you clean along walls, skirting boards and corners without turning the machine.

Under tables, chairs and furniture

With the manual floor accessory you vacuum and brush in low spaces where the machine cannot pass.

View product →

Walls, shop windows and mirrors

With the glass and surface accessory you recover liquids on tiles, mirrors and smooth vertical surfaces.

View product →

The SH1 Manual Accessories Kit includes a rigid extension, a flexible hose and three nozzles. The accessories are used with the Accessories and ECO Accessories modes.

Easy to use and to keep tidy

Touchscreen with the modes

Choose the mode with one tap on the 4.2" touchscreen; the screen shows operator instructions and training videos, consumables status and alarms, with visual and acoustic signals.

Quick-release parts

Brushes, squeegee, tanks and battery come off in a few moves. With a second battery you swap and get back to work.

View product →

When idle the SH1 folds into its storage position and takes up 49 × 35 cm of floor space.

9 cleaning modes

Each mode adjusts brush, suction and water: choose the right one for the type of dirt.

Normal and Heavy Duty

Normal for daily cleaning; Heavy Duty takes brush, suction and water to the maximum for stubborn dirt.

ECO and Low residue

ECO reduces consumption and noise and extends battery life; Low residue uses little water and strong suction.

Soak, Water suction, Max brush

Soak wets and brushes without vacuuming; Water suction recovers liquids; Max brush works with the brush only.

Accessories and ECO Accessories

Suction powers the manual accessories for walls, glass and spaces under furniture, at full or reduced power.

View product →

SH1 and PUDU robots: who does what

The SH1 does not replace a robot: it complements it.

The robot on open areas

CC1, ET1, MT1 or BG1 clean large, repetitive areas autonomously, also at night, with maps, schedules and automatic charging.

View product →

The SH1 for edges and touch-ups

The operator steps in where a person is needed: corners, narrow spaces, under furniture, stains that appear during the day, vertical surfaces.

One app

Robots and SH1 are followed in the PUDU Link app: whoever manages cleaning sees automatic and manual work in one place.

Maps, autonomous navigation and automatic charging are features of PUDU robots: the SH1 is always guided by an operator.

PUDU Link: manual cleaning becomes measurable

From the PUDU software ecosystem the SH1 uses the part a machine with an operator needs: app, data and reports.

PUDU Cleaning Report

For each cleaning job: duration, water used and area cleaned. Evidence ready for inspections and data to organise shifts.

PUDU Link app

Real-time reports, anti-theft functions and operator management, from the same app used for PUDU robots.

Alarms and consumables

Alerts for full recovery tank, low solution and faults in the brush and suction motors; monitoring of components and consumables.

Wi‑Fi, even when the network is weak

The SH1 connects via Wi‑Fi; if the network is unstable the data stays in the machine’s memory for up to 2 months.

A single PUDU ecosystem for cleaning, delivery and logistics: same app, same reports.

Data, security and compliance

A robot in your company must be safe for your data too. This is how it is protected:

Information security

PUDU is certified ISO/IEC 27001 for information security and ISO/IEC 27701 for privacy (certification body DNV): encrypted data, controlled access and a dedicated security department.

Privacy and GDPR

Cameras and sensors are used to find the way and avoid obstacles. We provide the privacy documentation for the model with the quote.

Data kept on site with PUDU Cloud Veil

If data must not leave the company, with PUDU Cloud Veil it runs locally or on your private cloud, without passing through PUDU servers. We define the configuration for your model in the quote.

CE marking and standards

The robot comes with CE marking and an EU declaration of conformity.

Settings and working modes are password-protected: unauthorised staff cannot change them.

The LeanProducts service

Analysis and demo

Together we assess floors, dirt and cleaning organisation; on request we give a demo at your premises.

The right consumables

We recommend brushes, pads and blades suited to your floors and type of dirt.

Staff training

We train operators in the use of the modes, accessories and app, and in daily maintenance.

Service and spare parts

Phone and remote support, repair on site or at our premises, original spare parts and consumables.

Technical data

Item	Value
Machine type	Walk-behind upright floor scrubber-dryer (not autonomous)
Dimensions	490 × 530 × 1200 mm in use; 490 × 350 × 1270 mm in storage position
Weight	27 kg
Productivity	1100–1600 m²/h
Scrubbing width	440 mm
Squeegee width	490 mm
Tanks	4 L solution + 4 L recovery
Brush pressure	27 kg
Brush speed	350 rpm
Suction	20 kPa
Modes	9: Normal, Heavy Duty, ECO, Low residue, Soak, Water suction, Max brush, Accessories, ECO Accessories
Battery	Lithium 18 Ah, 25.2 V, quick-release
Battery life	70 min in Standard, 100 min in ECO
Charging	2.5 h, also on the machine
Rated power	380 W
Noise level	76 dB(A) in Standard, 71 dB(A) in ECO
Protection rating	IPX4
Screen	4.2" touchscreen
Floors	Hard: tiles, terrazzo, granite, sealed concrete, marble, epoxy resin, wood
Connectivity	Wi‑Fi, PUDU Link app, PUDU Cleaning Report
Compliance	RoHS

Average travel speed 0.7–1.0 m/s; in Standard mode the water is changed about every 20 minutes. Actual output depends on operator, obstacles and dirt.

Downloads

Pudu SH1 brochure Download PDF

Accessories and related products

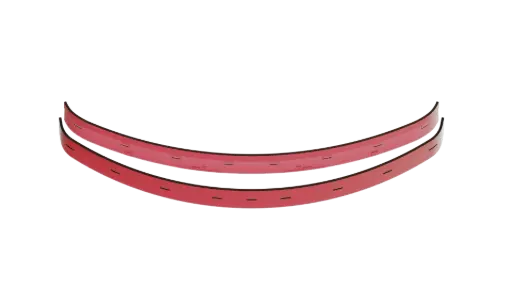

SH1 Red Rubber Blades - 2 PcsRed blades: non-oily areas, tear-resistant

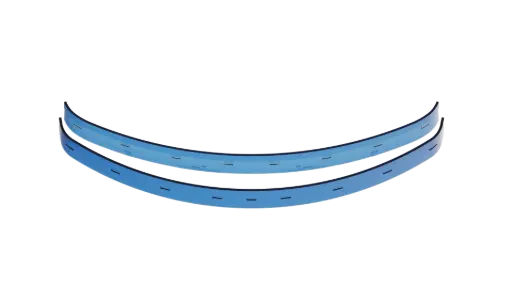

SH1 Blue Rubber BladesBlue blades: oil, detergents and chemicals

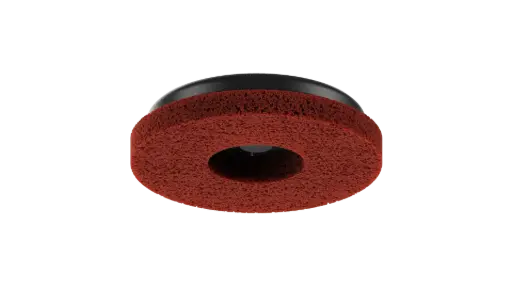

SH1 Red PadFor PVC and epoxy resin, daily use

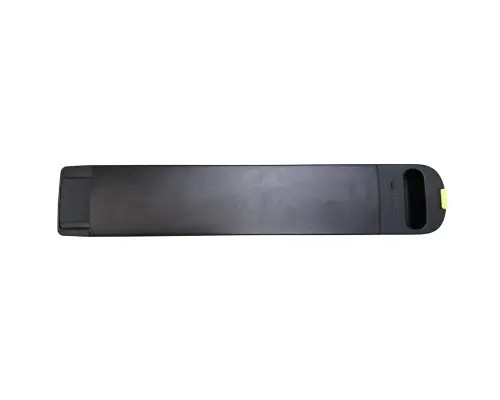

SH1 Battery, 18Ah, 25.2V, 7S4P BlackSecond battery to work longer

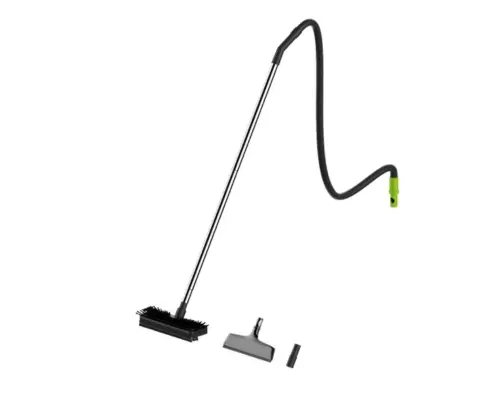

SH1 Manual Accessories KitExtension, flexible hose and three nozzles

CC1 Multifunctional Cleaning Robot4-in-1 robot to work alongside on large areas

Any other questions?Read the 22 FAQs →

Want to find out whether the SH1 is right for your floors?

Together we analyse floors, dirt and cleaning organisation, recommend the right consumables and train your staff. On request, a demo at your premises.

Request a quote Call +39 0434 572757

Specifications

Dimension mm	490x530x1200
Cleaning Efficiency m²/h	1100 - 1600
Working Width mm	440
Cleaning Type	Wet
Floor Type	Hard floor
Modes	9 modes: Normal, Heavy Duty, ECO, Low Residue, Soak, Water Suction, Brush Max, Accessory, ECO Accessory
Tank Capacity L	4 solution and 4 recovery
Vertical Pressure Kg	27
Brush Speed rpm	350
Suction Power kPa	20
Squeegee Width mm	490

Tags
Tags	Pudu Robotics

The PUDU SH1 is a professional upright scrubber-dryer designed for commercial cleaning. It is an "all-in-one" device that combines scrubbing, brushing and vacuuming functions to clean floors effectively in a single pass.

No. The SH1 does not navigate on its own and does not recharge on its own: it is always guided by an operator. It is a “smart” scrubber-dryer because of what it does on board: preset modes, alarms, consumables monitoring and reports in the PUDU Link app. If you are looking for operator-free cleaning, look at the Pudu CC1, ET1 or BG1 robots, which the SH1 can complement on edges and touch-ups.

The SH1 is ideal for cleaning small and medium-sized commercial areas such as restaurants, shops, cafés and offices. It is designed to be agile and manoeuvrable even in tight, complex spaces.

From 1100 to 1600 m²/h, with a 44 cm scrubbing width and a 49 cm squeegee. Actual output depends on the operator, obstacles and dirt. In Standard mode the water is changed about every 20 minutes.

On hard floors: tiles, terrazzo, granite, sealed concrete, marble, epoxy resin and wood. It removes dust, soil, food and drink residues and grease. Brushes, pads and blades are chosen according to the floor and the dirt: for example the red pad for PVC and resin, the blue blades where there is oil and chemicals. It is not suitable for carpet.

Normal, Heavy Duty, ECO, Low residue, Soak, Water suction, Max brush, Accessories and ECO accessories. Each one adjusts brush, suction and water: Heavy Duty takes them all to maximum for stubborn dirt, Low residue uses little water and strong suction, Soak wets and brushes without suction, and the Accessories modes power the manual tools.

The 18 Ah lithium battery gives about 70 minutes in Standard mode and 100 minutes in ECO mode; it recharges in 2.5 hours, also while fitted in the machine. It has a quick-release fitting: with a second battery you swap it and get back to work while the other one charges.

The SH1 uses up to 80% less water and detergent than a mop. It has two 4 L tanks, one for the solution and one for recovery; the recovery tank separates air, liquids and solids to prevent the drain from clogging. An alarm warns you when the solution is low or the recovery tank is full.

No, it is designed to be lightweight and easy to use. The motorised roller brush assists forward movement, reducing the effort required from the operator. Its ergonomic design and manoeuvrability make it less tiring than a traditional mop.

Yes, with the manual accessories connected to the SH1’s suction: there is a tool for floors under tables, chairs and furniture, one for shop windows, mirrors and wall tiles, and one for spot touch-ups. The SH1 Manual Accessories Kit includes a rigid extension, a flexible hose and three tools.

It connects via Wi‑Fi to the PUDU Link app. For each cleaning session the PUDU Cleaning Report records duration, water used and area cleaned; the app shows data in real time and has anti-theft and operator management functions. If the network is unstable, the data stays in the machine’s memory for up to 2 months.

Yes: the robot (CC1, ET1, MT1 or BG1) autonomously cleans open, repetitive areas, even at night; the SH1 finishes edges, corners, narrow spaces, areas under furniture and the stains that form during the day. Robot and SH1 are monitored in the same PUDU Link app, with reports from both.

The SH1 is manual: it needs an operator, but it is compact, gets into narrow spaces and, with the accessories, also cleans vertical surfaces. CC1 and ET1 are autonomous scrubber-dryer robots: they work without an operator, even at night, with the station for water and charging. The CC1 (700–1000 m²/h) also cleans carpet; the ET1 is the compact robot for spaces from 100 to 800 m². The SH1’s 1100–1600 m²/h is an output with an operator: it cannot be compared directly with that of a robot.

After each use, clean the machine body, brush and squeegee; once a week, the float and the recovery tank seal. The squeegee blades are reversible: when one side is worn, the blade is turned over. The machine monitors components and consumables and reports faults in the brush and suction motors.

As a guide: red blades about 300 hours per side, blue blades about 200 hours per side, brush discs 180 to 300 hours depending on the type, pads 45 to 90 hours. With normal use this means discs every 3–6 months and blades every 6–12 months. We supply original spare parts with the right code for your floor.

On stairs and uneven ground the SH1 must be carried by hand: it weighs 27 kg. For storage it is put into the storage position and takes up 49 × 35 cm of floor space.

Yes: it scrubs and dries in the same pass, so the floor behind the machine stays dry, and ECO mode is the quietest (71 dB(A) compared with 76 dB(A) in Standard). It is useful precisely for touch-ups during opening hours, where a large scrubber-dryer would get in the way.

LeanProducts, official PUDU distributor in Italy, helps you choose brushes, pads and blades for your floors, trains operators in use and maintenance and provides support and spare parts. On request we organise a demo at your premises.

Cameras and sensors are used for orientation and obstacle avoidance. PUDU is certified ISO/IEC 27001 and ISO/IEC 27701 for information security and privacy. We provide the privacy documentation for the model with the quote; if data must stay on your premises, we assess PUDU Cloud Veil with you.

Yes. With PUDU Cloud Veil the data runs locally or on your private cloud and does not pass through PUDU servers: no data leakage at source and full control over the information, as required in environments with high confidentiality requirements. To connect the robot to your systems there is the PUDU Cloud Open API. We define the configuration and functions available for your model in the quote.

PUDU is certified ISO/IEC 27001:2022 for information security and ISO/IEC 27701:2019 for privacy, verified by the certification body DNV. Data is encrypted and stored encrypted, access is limited to authorised personnel and a dedicated department oversees information security. Vulnerabilities are reported through an official channel. On the robot, settings and working modes are password-protected and the software is updated remotely.

Yes, every robot comes with CE marking and an EU declaration of conformity. The CC1 Pro is certified to IEC 63327, the safety standard for automatic floor-cleaning machines for commercial use. For the other models we provide the declaration and the standards applied with the quote.
