Slot cover GF-N
Polypropylene profile that snaps on along Green Frame GF-N Ø 28 mm pipes: it protects the pipe from scratches, edges shelves and, in seven colours, acts as a colour code. 2000 mm bar or cut to length.
Green Frame · End caps and protection
Slot cover GF-N

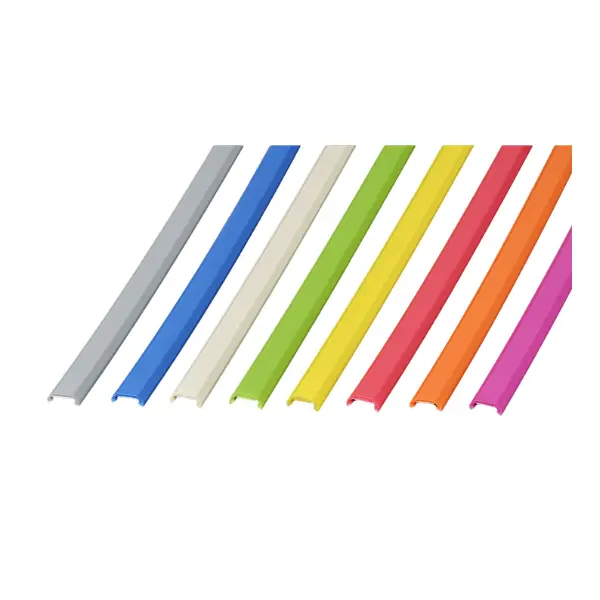

A 2.4 mm polypropylene profile that snaps on along the Ø 28 mm pipe and covers its rib. It protects the profile from scratches and light knocks, finishes the edge of shelves and worktops and, with seven colours, identifies levels, zones and flows.
Why choose it
Colour code
Seven colours to distinguish levels, lines, zones or material types.
Protects the pipe
Covers the profile rib: fewer scratches from boxes and containers.
Made to measure
2000 mm bar that we cut to the length of the section to be covered.
Application example
The slot cover snaps on along the pipes you want to protect or colour:
- Shelf edges: finishes the pipes on which shelves and boxes rest
- Colour code: one colour per level, line or material type
- Workstations and trolleys: protects pipes where containers and hands pass
Data and compatibility
| Specification | Value |
|---|---|
| Codes | GFA-800G light grey; GFA-800M green; GFA-800R red; GFA-800V white; GFA-800Y yellow; GFA-828 orange; GFA-849 purple |
| Series | GF-N Ø 28 mm |
| Compatible with | GF-N Ø 28 mm profiles (not the GF-N Hard profile) |
| Material | Polypropylene (PP) |
| Thickness | 2.4 mm |
| Length | 2000 mm bar or cut to length |
| Weight | 0.047 kg/m |
With the worktop support it forms the edge of the worktop: tell us the colour and the length of the sections.
GF-N profileStandard GF-N profile
Worktop support GF-NWorktop support
GF-N bumperBumper
GF-N protective capColoured cap for pipe endsNeed the right end cap for your profiles?
Tell us which profiles you use and how many ends are left open: we will give you codes and quantities.
